Ultra HD 16 Channel 24TB NVR
Ultra HD 16 Channel 24TB NVR
SKU:RU16NVR2B-24T
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Quick Features
Overview
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra's unique design complements any home or business. The Revo Ultra's superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The 2nd Generation 16 CH REVO ULTRA NVR features state of the art 4K Video Output, H.265 Compression, and support up to 4K Cameras. View your cameras from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using www.myrevocloud.com.. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you'd like to view with Video Wall, or even lay them out on a custom map of your property with E-Map.
 |
||
| Video/Audio Input | ||
|---|---|---|
| IP Video Input | 16 Channel | |
| Two-way audio Input | 1-ch, RCA | |
| Network | ||
| Incoming bandwidth | 112Mbps | |
| Outgoing bandwidth | 96Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 | |
| VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60 | ||
| Recording Resolution | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16-ch | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | |
| Decoding | ||
| Decoding format | Ultra 265, H.265, H.264 | Decoding Capability | 1 x 4K@30, 1 x 6MP@30,1 x 5MP@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30,16 x D1 |
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | up to 10TB for each disk | |
| Smart | ||
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking | |
| VCA Search | Face search, Behavior search | |
| Statistical Analysis | People counting | |

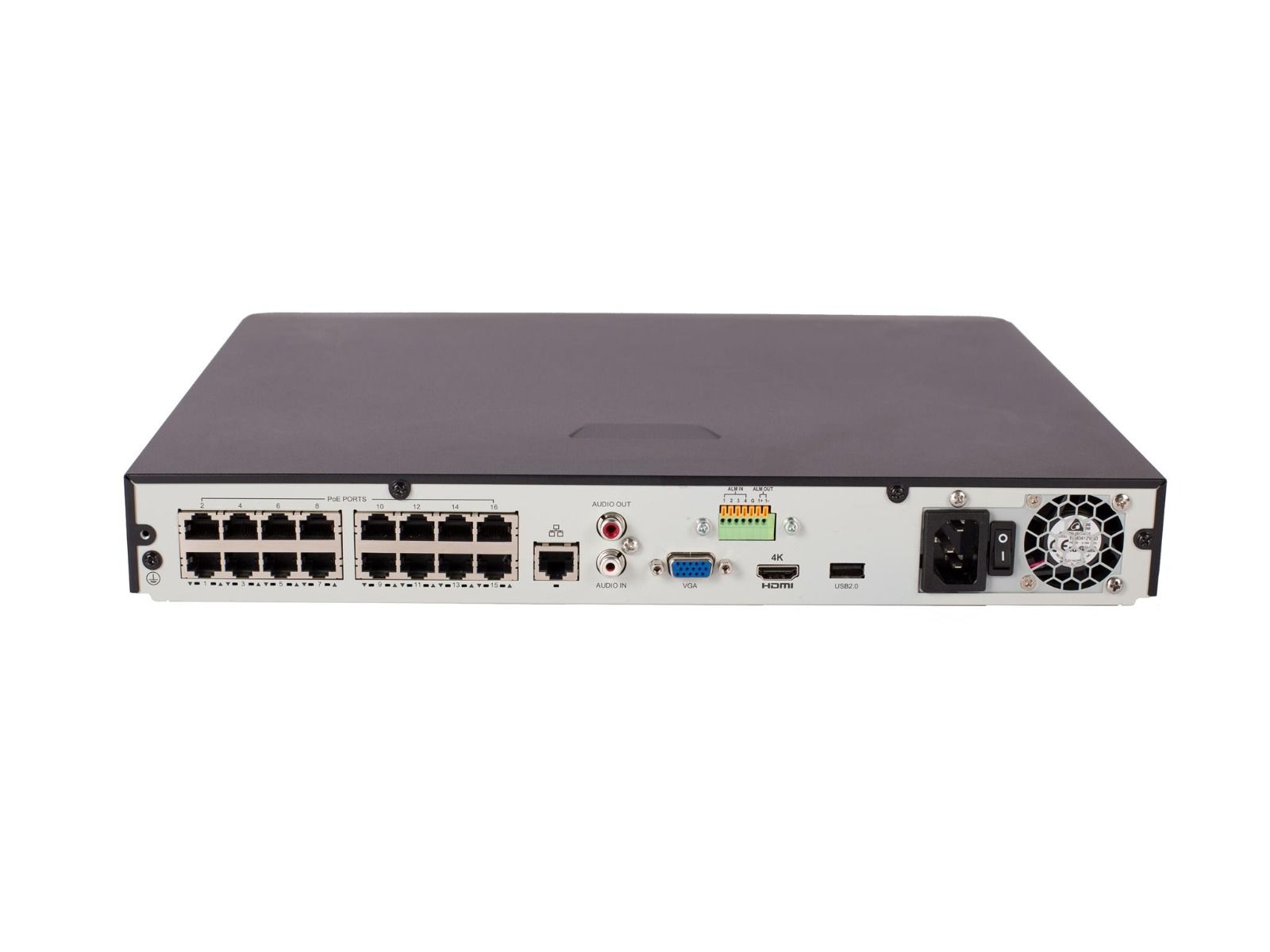

| External Interface | ||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 | |
| General | ||
| Power Supply | 100 ~ 240 V AC Power Consumption: ≤ 7 W( without HDD ) | |

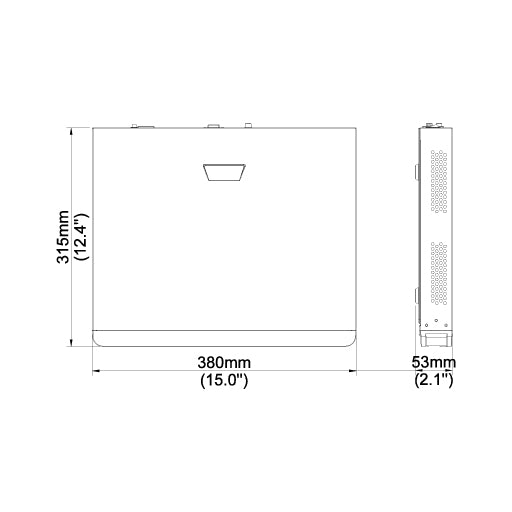

| Dimensions(D × W × H) | 380 mm × 315mm × 49 mm (15" × 12.4"× 1.9") | |
| Weight | ≤ 1.6 kg (3.53 lb) | |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
