Ultra HD 2MP IP Indoor / Outdoor Bullet Security Camera
Ultra HD 2MP IP Indoor / Outdoor Bullet Security Camera
SKU:RUCB2M-1C
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Quick Features
Highlights
Resolution
2MP IP Camera
Weather Resistant
IP66, 140F and as cold as -31F
WDR
120db
Smart IR
Supports
Behavior Detection
Motion Detection & More
DNR
2D/3D
Night Vision
100 ft.
Overview
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra's unique design complements any home or business. The Revo Ultra's RUCB2M-1CBullet Camera is based on IP technology. IP, or Internet Protocol, technology brings the power and beauty of digital high definition video right to the heart of your surveillance system. The Revo Ultra RUCB2M-1C Bullet Camera takes it one step further, featuring, optical grade, IR optimized glass, 3D Digital Noise Reduction, and 2 Megapixel Sensors, double the resolution of standard 720p HD. Revo Ultra cameras also come equipped with Smart IR Arrays. Night vision video quality is unmatched. With enhanced dispersion, IR arrays strongly and evenly illuminate the scene up to an unprecedented 100' in total darkness. Smart IR adjusts IR Array intensity for just the right amount of IR illumination at any given time. Revo Ultra cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F, rain or shine. When it comes to surveillance, every detail counts.
| Camera | |
|---|---|
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens | 4.0mm@F1.8 |
| Angle of View(H) | 78.9° |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Minimum Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D |
| S/N | >52dB |
| IR Range | Up to 30m (98 ft) IR range |
| Defog | Digital Defog |
| WDR | DWDR |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:4MP (2592×1520): Max. 20 fps，4MP (2560×1440): Max. 25 fps，3MP (2048×1520): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max. 30fps |
| HLC | Supported |
| BLC | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S), API |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 5.5 W | |

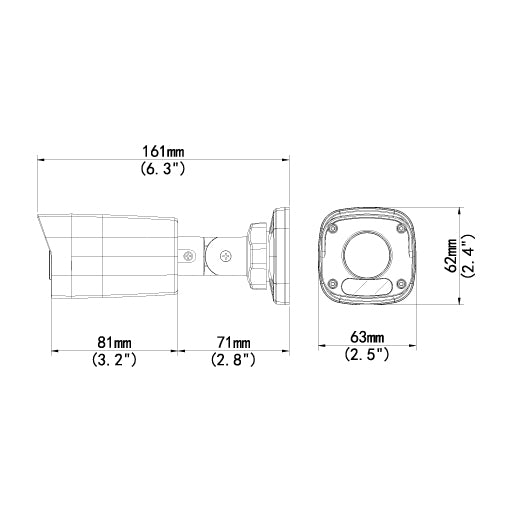

| Dimensions (L × W × H) | 167.3 × 62.9 ×62.7 mm (6.6” × 2.5” × 2.5”) |
| Weight | 0.25 kg (0.55 lb) |
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~95% RH(non-condensing) |
| Ingress Protection | IP66 |
