Uniview Tech

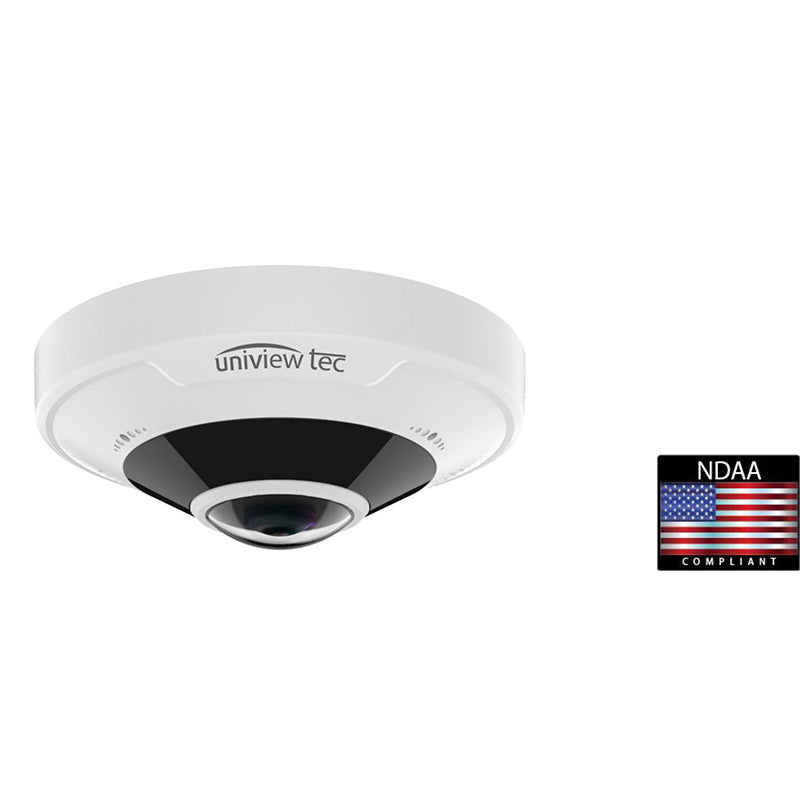

12MP, TDN, WDR, IR, 360° FISHEYE DOME
12MP, TDN, WDR, IR, 360° FISHEYE DOME
SKU:IPFE12360X
Regular price
$849.00 USD
Regular price
Sale price
$849.00 USD
Unit price
per
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 12MP, 4000 x 3000 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Embedded IR LED Light, with 0 Lux Night Time Operation up to 49 Feet
- Ultra-wide angle, 1.8mm, 360°panoramic lens
- TRUE Day/Night and Digital-WDR functionality for all Lighting Conditions
- Two-way Audio w/ built-in microphone x2 & speaker x1, Backlight Compensation, 3D DNR
- Multiple decoding, software and hardware modes, providing interactive dynamic viewing
- Triple Video Streams and ONVIF Profile S Compliant
- PoE & 12VDC Power Options and Built-in Micro-SD Card Slot enables local storage up to 256GB
- IP67 Weather Resistant & IK10 Impact Resistant, Vandal Housing
- Optional Mounting Accessories Available
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Device
| Camera | |||||
|---|---|---|---|---|---|
| Sensor | 1/2.7” 12MP, progressive scan CMOS | ||||
| Minimum illumination | Color: 0.003 lux (F2.0, AGC ON); 0 lux with IR on | ||||
| True Day / Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto / Manual, 1 ~ 1/100000s | ||||
| WDR | Digital-WDR | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens | 1.8mm @ F2.0 | ||||
| Field of View | 360° | ||||
| DORI | |||||
| DORI Distance |
|
||||
| Illuminator | |||||
| IR Range | Up to 15m (49ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Main Stream Frame Rate | Fisheye View: 12MP (4000 x 3000) @ 20fps; 3000 x 3000 @ 20fps; 2560 x 2560 @ 25fps; Panorama View: 12MP (4000 x 3000) @ 20fps; 3000 x 2000 @ 20 / 25fps; 3000 x 1500 @ 20 / 25fp; PTZ View: 1920 x 1080 @ 20 / 25fps |
||||
| Sub Stream | Fisheye View: 2000x 1500 @ 20fps; 2000 x 2000 @ 25fps | ||||
| Third Stream | Fisheye View: D1 (720 x 576) @ 20 / 25fps; CIF (352 x 288) @ 20 / 25fps | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Video Stream | Triple streams | ||||
| Live View Display | |||||
| Mount Type | Support table, wall, and ceiling | ||||
| Hardware Decoding | Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Table mount: fisheye view, fisheye + 4PTZ, , horizontal panorama view, vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view |
||||
| Software Decoding | Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ,360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ,360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ |
||||
| Image | |||||
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | ||||
| Digital Noise Reduction | 2D / 3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal / Vertical / Horizontal / 180° | ||||
| Dewarping | N/A | ||||
| HLC | N/A | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Intelligence | |||||
| Smart intrusion prevention | Cross Line detection, Intrusion detection | ||||
| Statistical Analysis | Heat map (Working with management platform) | ||||
| Events | |||||
| Basic Detection | Motion detection, Tampering alarm, Audio detection | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm ,Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way audio | Support | ||||
| Suppressione | Support | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | ||||
| Client | Guard Station, Guard Viewer | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; | ||||
| Interface | |||||
| Audio I/O | 1 x Input: : impedance 35kΩ; amplitude 2V [p-p]; 1 x output: impedance 600Ω; amplitude 2V [p-p] | ||||
| Alarm I/O | 2 /1; Multiple-Alarm linkage editable | ||||
| Built-in Mic | Two Microphones | ||||
| Built-in Speaker | Support | ||||
| Serial | 1 x RS485 | ||||
| Network | 1 x RJ45 10M/100M Base-TX Auto-adaptive Ethernet | ||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | ||||
| General | |||||
| Power | DC 12V ±25%, PoE (IEEE 802.3af); Power consumption: Max 12W | ||||
| Dimensions (Ø × H) | Φ149 x 55mm (Φ5.9” x 2.2”) | ||||
| Weight | 0.524kg (1.19lb) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Conformity Certifications | IP67, IK10, CE, FCC | ||||
