Uniview Tech

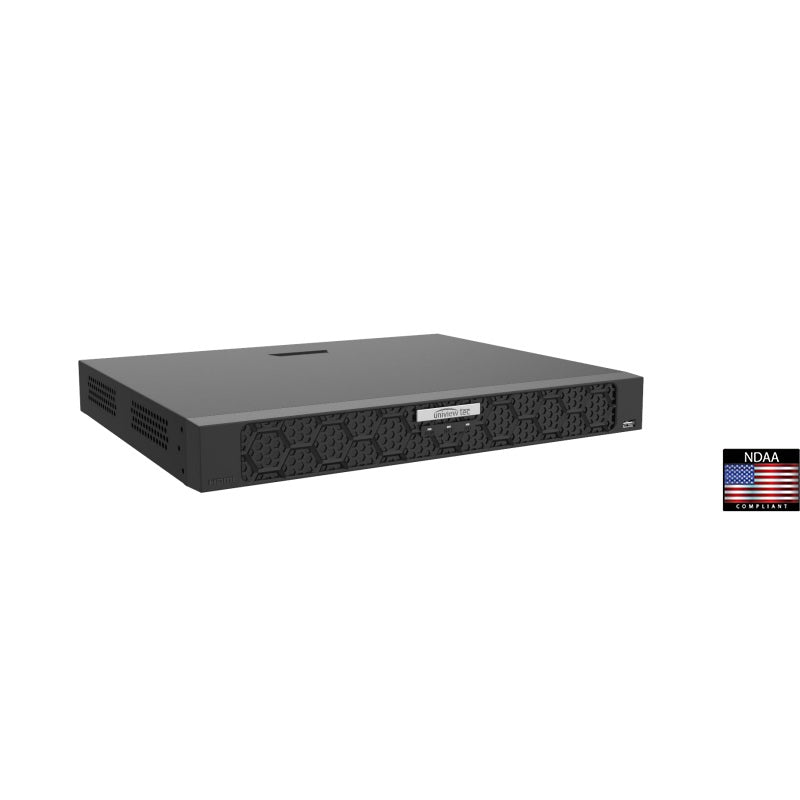

16ch, 16 PoE, 16MP Resolution, H.265 NVR
16ch, 16 PoE, 16MP Resolution, H.265 NVR
SKU:NR162XPC-2T
Regular price
$675.00 USD
Regular price
Sale price
$675.00 USD
Unit price
per
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 16ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Capability
- Supports 2 SATA HDD up to 10TB and has Embedded PoE Switch for all Video Channels
- Supports recording of up to 16MP Resolution Images
- Display Images up to 4K(8MP) Resolution on HDMI Output
- Concurrent Independent Displays on HDMI and VGA Monitor Outputs
- ONVIF Profile Series S Compliant
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades
- Features Automatic Network Recovery (ANR) Technology to enhance storage reliability when network is disconnected
- Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Video & Audio Inputs | |
|---|---|
| IP Video Input | 16-ch |
| Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6 |
| Supported Browsers | IE(IE10/11) for Windows; Firefox (version 52.0 and above) for Windows; Chrome(version 45 and above) for Windows; Edge(version 79 and above) for Windows |
| Video & Audio Outputs | |
| HDMI / VGA Output | HDMI: 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 /60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz VGA: 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz |
| Recording Resolution | 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16 |
| Live view display | 1 / 4 / 6 / 8 / 9 / 16 |
| Corridor Mode Screen | 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding format | Ultra 265 / H.265 / H.264 |
| Live view/Playback | 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Capability(fps) | Ultra 265 / H.265: 2 x 16MP @30, 2 x 12MP @ 30, 4 x 4K @ 30, 6 x 5MP @ 30, 8 x 4MP @ 30, 10 x 3MP @ 30, 16 x 1080P @ 30 H.264: 2 x 16MP (4800 x 2688) @ 30, 2 x 12MP @ 30, 2 x 4K @ 30, 4 x 5MP @ 30, 6 x 4MP @ 30, 8 x 3MP @30, 14 x 1080P @ 30 |
| Hard Disk Drives | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 10TB for each HDD |
| Smart Features | |
| VCA Detection by Camera | Face Detection, Face Comparison, Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area,Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| People counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP), Face Detection, Face Comparison, Vehicle Detection, UMD, Video Metadata,Traffic Monitoring by Camera | 8-ch |
| System Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion,Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording / Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 x RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0; Rear panel: 1 x USB3.0 |
| RS485 | 1 |
| Alarm In | 8-ch |
| Alarm Out | 2-ch |
| PoE | |
| Interface | 16 x RJ-45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 240W in total |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Power Supply | 100~240V AC; Power Consumption: ≤ 20W (without HDD) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions (W × D × H) | 380 × 322 × 53mm (15.0 × 12.7 × 2.1") |
| Weight ( without HDD ) | ≤ 2.6Kg (5.73lb) |
| General | |
| Certifications | FCC, CE (UL – Power Supply only) |
