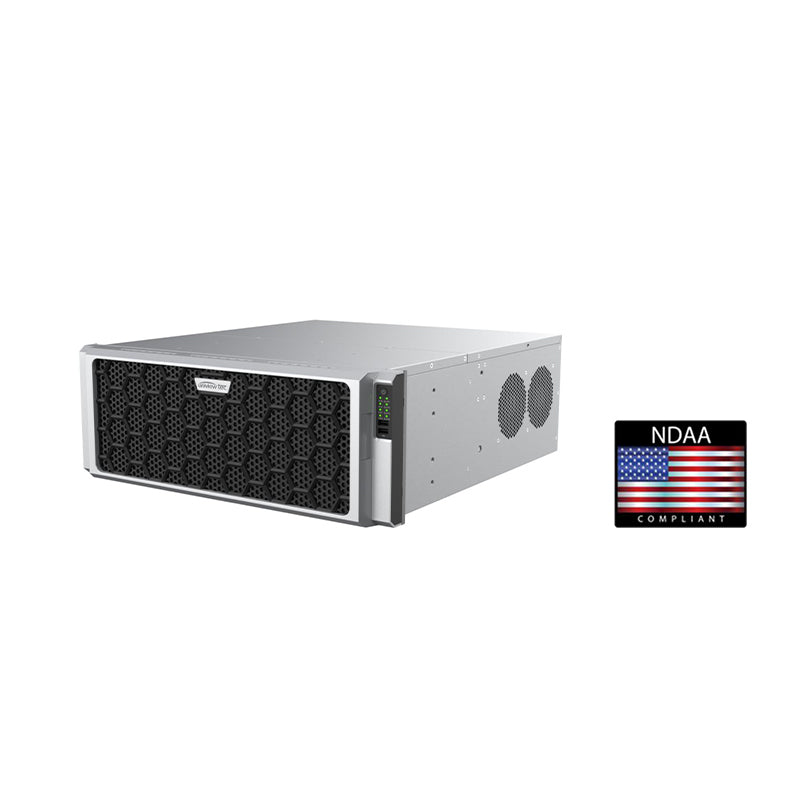

Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 256ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Performance
- Supports recording of up to 12MP (4000 x 3000) Resolution Images
- Display Images up to 4k (3840 x 2160) Resolution on both HDMI Outputs
- Concurrent Independent Display on all HDMI and VGA Monitor Outputs
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Maximum internal storage of 24 SATA HDD’s up to 12TB each for 288TB total, with HDD Hot Swap and RAID 0, 1, 5, 6, 10, 50, 60
- Supports optional external storage devices for up to an additional 384TB of external storage
- Supports ONVIF Profile Series Compliant Third Party Cameras
- Powerful Video Content Analysis Features such as Face Detection and People Counting
- Supports Cloud Upgrade for NVR and uniview tec Cameras with Automatic Detection of Latest Firmware
- Supported by license-free uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
- Optional Mini-SAS Disk Enclosures, Redundant Power Supply and PoE Switches
Video | |
---|---|
IP Camera Inputs | 256 channels |
Video Formats | Ultra 265, H.265, H.264 |
Recording Video Resolution | 12MP Maximum |
Playback Video Capability (fps) | 5 x 4K @ 30, 20 x 1080P @ 30, 24 x 1080P @ 25, 40 x 960P @ 25, 45 x 720P @ 30, 54 x 720P @ 25, 96 x D1 @ 25 |
Monitor Outputs – Concurrent & Independent HDMI & VGA Only |
2 x HDMI (4K~ 720p); 1 x VGA (1080p ~ 720P); 1 x BNC |
Synchronous Playback | 16 channels |
Network | |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Bandwidth | Incoming – 768Mbps Outgoing – 768Mbps |
Remote Users | 256 |
Video Analytics | People Counting, Face and Behavior Search |
General | |
Network Interface | 4 x RJ45, 10M/100M/1000M, Adaptive Ethernet |
Serial Interface | 1 x RS232, 1 x RS485 |
USB Interface | Front panel: 2 x USB2.0; Rear panel: 2 x USB3.0 |
Alarm Interface | 24ch – Inputs; 8ch - Output |
Audio Interface | 1ch RCA Input / Output |
Hard Disk | 24 SATA, up to 12TB each: total 288TB |
eSATA | 1 port |
Mini-SAS | 2 ports |
Disk Array | RAID 1, 5, 6, 10, 50, 60 |
Power | 100-240VAC; 70W Consumption (w/o HDD) |
Operating Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
Rack Mountable | Yes; Shelf or Rails are Rec’d, but Not Included |
Dimensions (WxDxH) | 533 × 484.6 × 175.5mm (21 × 19.1 × 6.9") |
Weight (w/o HDD) | 12.5kg (27.56lb) |
Conformity Certifications | FCC, CE (UL – Power Supply only) |
