ATV

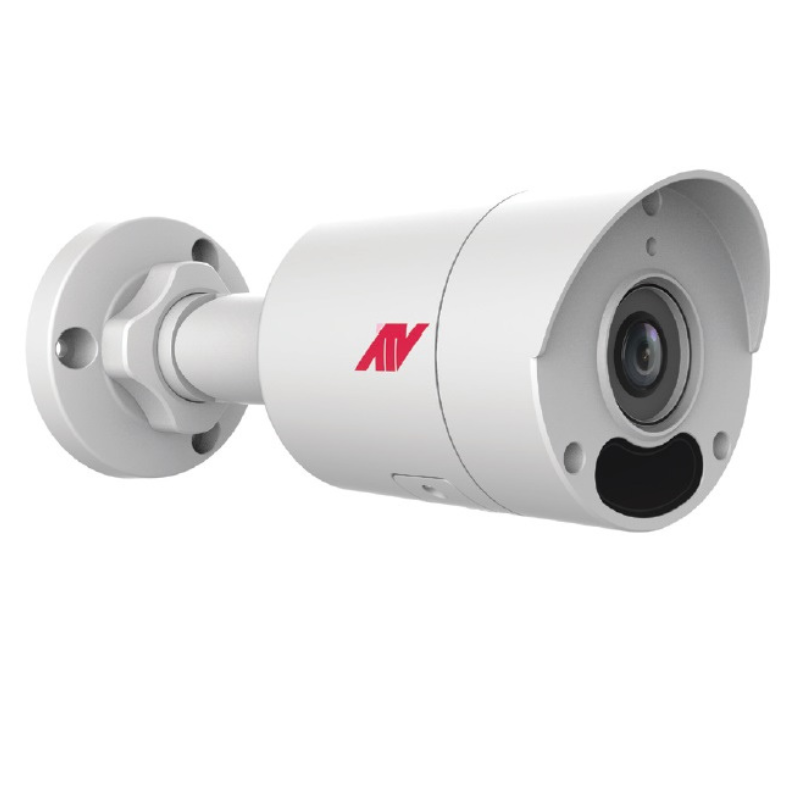

2MP Bullet Camera with 2.8mm Lens, WDR, IR, PoE/12VDC
2MP Bullet Camera with 2.8mm Lens, WDR, IR, PoE/12VDC
SKU:ANBW228
Regular price
$86.50 USD
Regular price
Sale price
$86.50 USD
Quantity
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Overview
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 2.8mm (ANBW228) Fixed Lens
- Exceptional 2MP, 1920 x 1080 Resolution, Video Images and Powerful IR LED Lights for 0 Lux Operation up to 131ft
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
| IMAGE | |
|---|---|
| Image Sensor | Type : 1/2.8” CMOS Sensor |
| Min. Illumination | Color : 0.03Lux / BW : 0Lux@F2.0, 50IRE |
| Scanning Mode | Progressive Scan |
| Resolution | 1920x1080 ~ 352x288; @ 25/30fps |
| IR | 22 IR LEDs (850nm): Max 82ft Indoor, 105ft Outdoor |
| FUNCTIONS | |
| Lens / Angle of View | Fixed 2.8mm, 114° (H) |
| Wide Dynamic Range | True WDR (120db) |
| Day and Night Mode | True D/N (Auto, Day, Night) |
| Digital Noise Reduction | 2DNR, 3DNR |
| Image Effect | Flip, Mirror, Defog, BLC, White Balance |
| Shutter Speed | Auto (1/100,000~1sec), Manual |
| Compression | H.264(Baseline, Main, High Profile), H.265(Main Profile), MJPEG |
| Streaming | Quad Stream |
| Video Analysis | Tampering, Line and Field Detection |
| VMD / Privacy | 8 Areas / 4 Zones |
| Event Notification | E-mail, FTP |
| Security | Multi User Authority, IP Filtering, HTTPS, SSL |
| Network Time Sync | NTP Server, Computer Sync, Manual |
| Remote Upgrade | IE, Chrome, Safari, Firefox, SmartManager |
| SD Recording Mode | Event, Continuous |
| NETWORK | |
| Protocol | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DVRNS, NTP, FTP, HTTP, HTTPS, SMTP, SSL |
| Client Software & Users | ATVision IP CMS & Mobile; Max Live Users: 10; Playback Users: 3 |
| API Support | Open API, Onvif Compliance |
| GENERAL | |
| Ethernet | RJ-45 (10/100Base-T) |
| SD Card Slot | SDXC (128GB) |
| Operating Temp & Humidity | -22°F ~ 140°F (-30°C ~ +60°C); 0~90% RH (Non-Condensing) |
| Power Source | PoE (IEEE802.3af)/12VDC; 6W @PoE / 5W @12VDC |
| Dimensions & Weight | 6.1 x 2.5 x 2.5in (155.9 × 63.1 × 62.7mm); .93lb (0.42kg) |
| Environmental | IP67 |
SPECIFICATION SHEET
Download Here
USER MANUAL
Download Here
