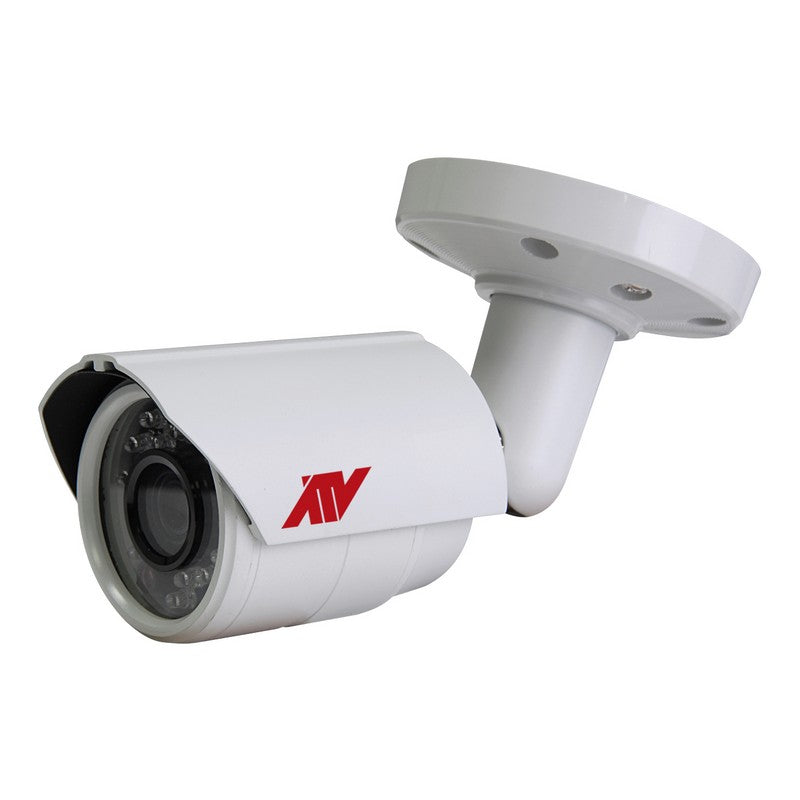

2MP Bullet Camera with 3.6mm Lens and IR Night Vision
2MP Bullet Camera with 3.6mm Lens and IR Night Vision
SKU:HDB236
Regular price
$87.56 USD
Regular price
Sale price
$87.56 USD
Quantity
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Overview
- 2.8mm (HDB228) or 3.6mm (HDB236) Fixed Lens
- High Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
- AHD and CVBS Protocol selectable --- Engineered to work with ATV’s HD Analog and Legacy DVR’s for Maximum Stability and Performance
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
| IMAGE | |
|---|---|
| Image Sensor | 1/2.8” Sony CMOS: 2,000(H) x 1,121(V) Pixels |
| Scanning Mode | Progressive |
| Video Resolution | 1080p @ 25/30fps (AHD); 1000TVL (CVBS) @ 30fps |
| Min. Illumination | 1.0Lux (Color), 0Lux (BW, IR LED On) |
| IR | 24 IR LED’s (850nm); Max. 82ft indoor, 62ft outdoor |
| S/N Ratio | More Than 50dB (AGC O) |
| FUNCTIONS | |
| Camera Control | OSD (Joystick switch, Coaxial Communication) |
| Lens | 2.8mm or 3.6mm, F2.0 Fixed Lens |
| Shutter | Auto |
| AGC | On |
| White Balance | ATW (Auto) |
| Day & Night | Auto |
| DNR | 2D / 3D On |
| GENERAL | |
| Video Output | BNC |
| Transmission Distance | Coax Cable, RG6U (5C-2V), 1640ft (500m); RG59 (3C-2V), 984ft (300m) |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ +60°C) |
| Operating Humidity | 0~96% (Non-Condensing) |
| Power Source | DC12V±10% |
| Power Consumption | Max. 4.5Watts (370mA) |
| External Dimension | Ø1.97 x 5.5 in (Ø50 x 140 mm) |
| Weight | 0.94lb (0.425kg) |
| Environmental | IP67 |
| Conformity Certifications | FCC, CE, UL |
SPECIFICATION SHEET
Download Here
QUICK GUIDE
Download Here
