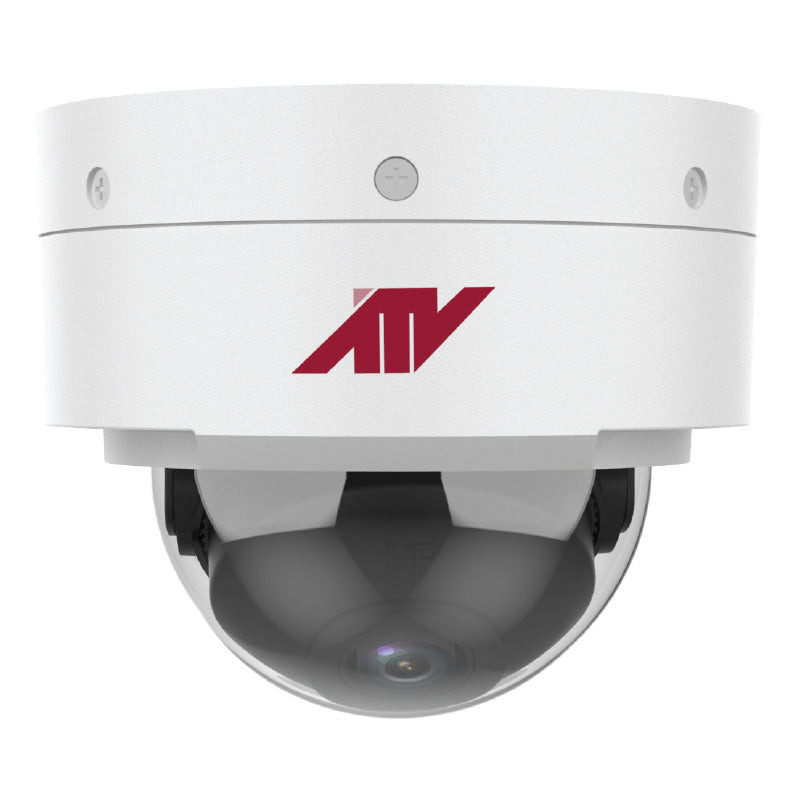

2MP Dome Camera with 2.8mm Lens, WDR, IR, PoE/12VDC
2MP Dome Camera with 2.8mm Lens, WDR, IR, PoE/12VDC
SKU:ANVW228
Regular price
$173.00 USD
Regular price
Sale price
$173.00 USD
Quantity
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Overview
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 2.8mm Fixed Lens
- Exceptional 2MP, 1920 x 1080 Resolution, Video Images and Powerful IR LED Lights for 0 Lux Operation up to 82ft
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
| IMAGE | |
|---|---|
| Image Sensor | Type : 1/2.8” CMOS Sensor |
| Min. Illumination | Color : 0.03Lux / BW : 0Lux@F2.0, 50IRE |
| Scanning Mode | Progressive Scan |
| Resolution | 1920x1080 ~ 352x288; @ 25/30fps |
| IR | 1 IR LED (850nm): Max 98ft Indoor, 78ft Outdoor |
| FUNCTIONS | |
| Lens / Angle of View | Fixed 2.8mm / 106° (H); or 4mm, 89° (H) |
| Wide Dynamic Range | True WDR (120dB) |
| Day and Night Mode | True D/N (Auto, Day, Night) |
| Digital Noise Reduction | 2DNR, 3DNR |
| Image Effect | Flip, Mirror, Defog, BLC, White Balance |
| Shutter Speed | Auto (1/100,000~1sec), Manual |
| Compression | H.264 / H.265 (Baseline, Main, High Profile), MJPEG |
| Streaming | Quad Stream |
| Video Analysis | Tampering, Line and Field Detection |
| VMD / Privacy | 8 Areas / 4 Zones |
| Event Notification | E-mail, FTP |
| Security | Multi User Authority, IP Filtering, HTTPS, SSL |
| Network Time Sync | NTP Server, Synchronized Computer, Manual |
| Remote Upgrade | Web Browsing (IE, Chrome, Safari, Firefox), SmartManager |
| SD Recording Mode | Event, Continuous |
| NETWORK | |
| Protocol | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DVRNS, NTP, FTP, HTTP, HTTPS, SMTP, SSL, Zeroconf |
| Client Software & Users | ATVision IP CMS & Mobile; Max Live Users: 10; Playback Users: 3 |
| API Support | Open API, Onvif Compliance |
| GENERAL | |
| Ethernet | RJ-45 (10/100Base-T) |
| SD Card Slot | SDXC (128GB) |
| Operating Temp & Humidity | -22°F ~ 140°F (-30°C ~ +60°C); 0~90% RH (Non-Condensing) |
| Power Source | PoE (IEEE802.3af )/ 12VDC; 6W @PoE / 5W @12VDC |
| Dimensions & Weight | 4.3(Ø) x 3.6in (109.4(Ø) x 91mm); .93lb (.42kg) |
| Environmental | IP67, IK10 |
| Conformity Certifications | FCC, CE, UL |
SPECIFICATION SHEET
Download Here
USER MANUAL
Download Here
