Uniview Tech

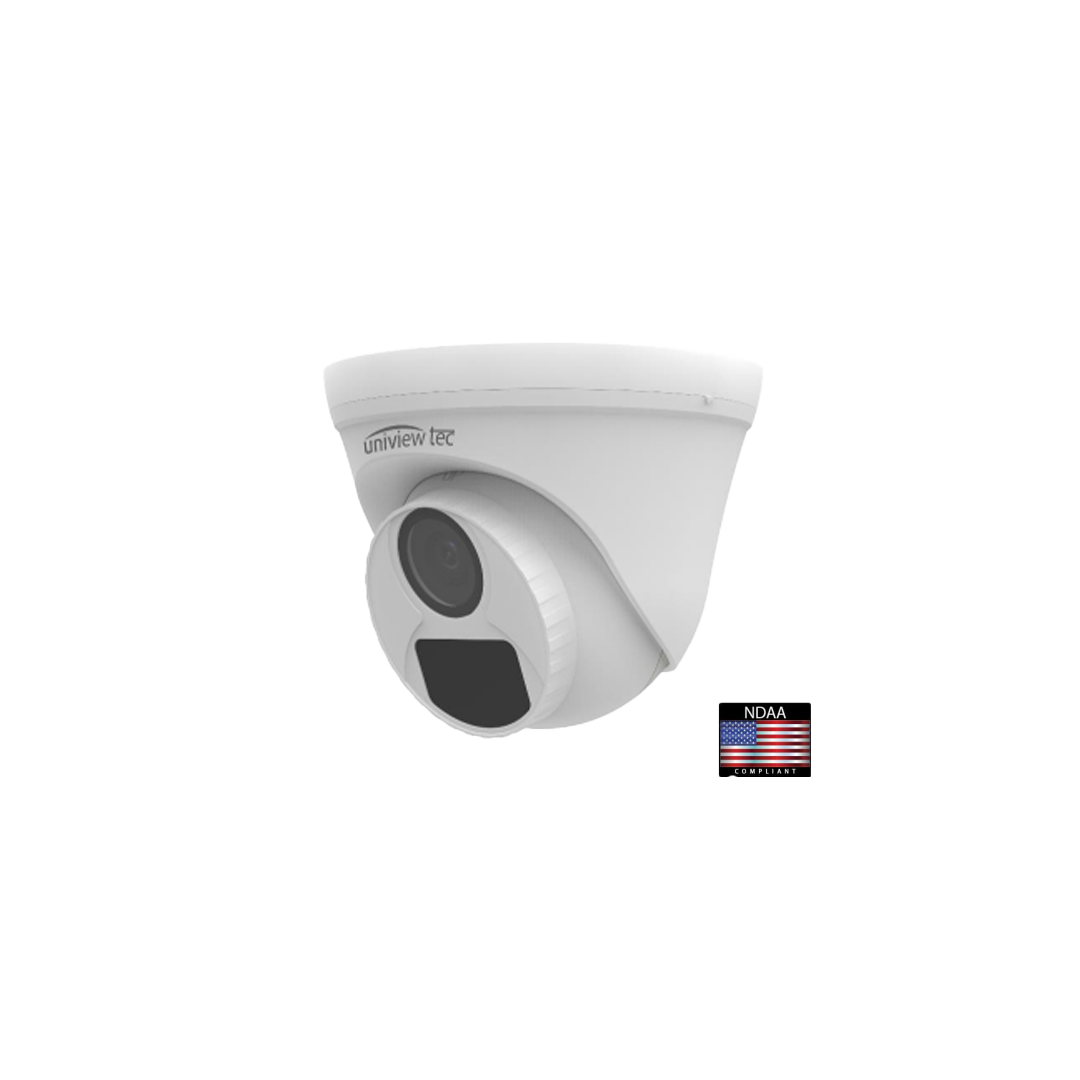

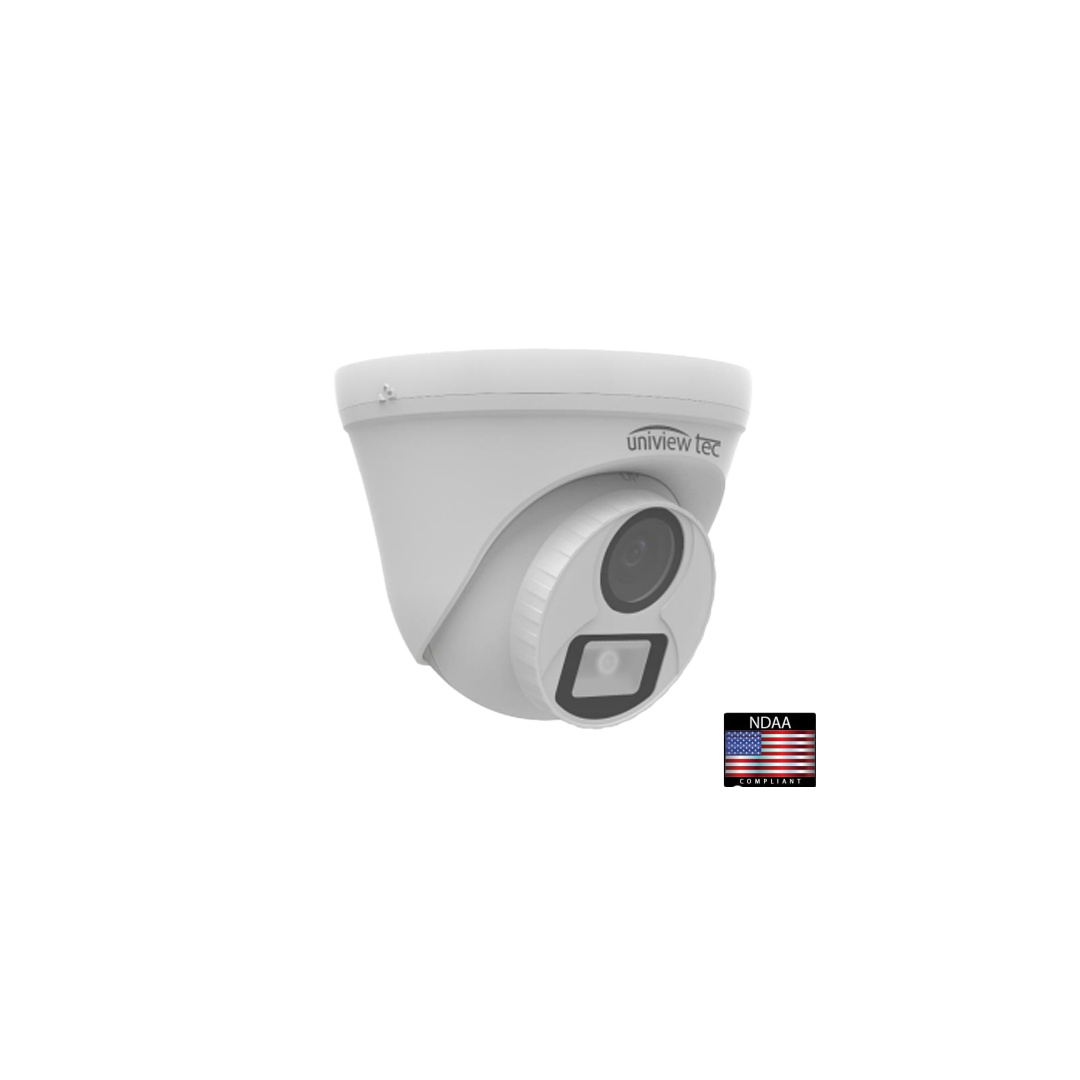

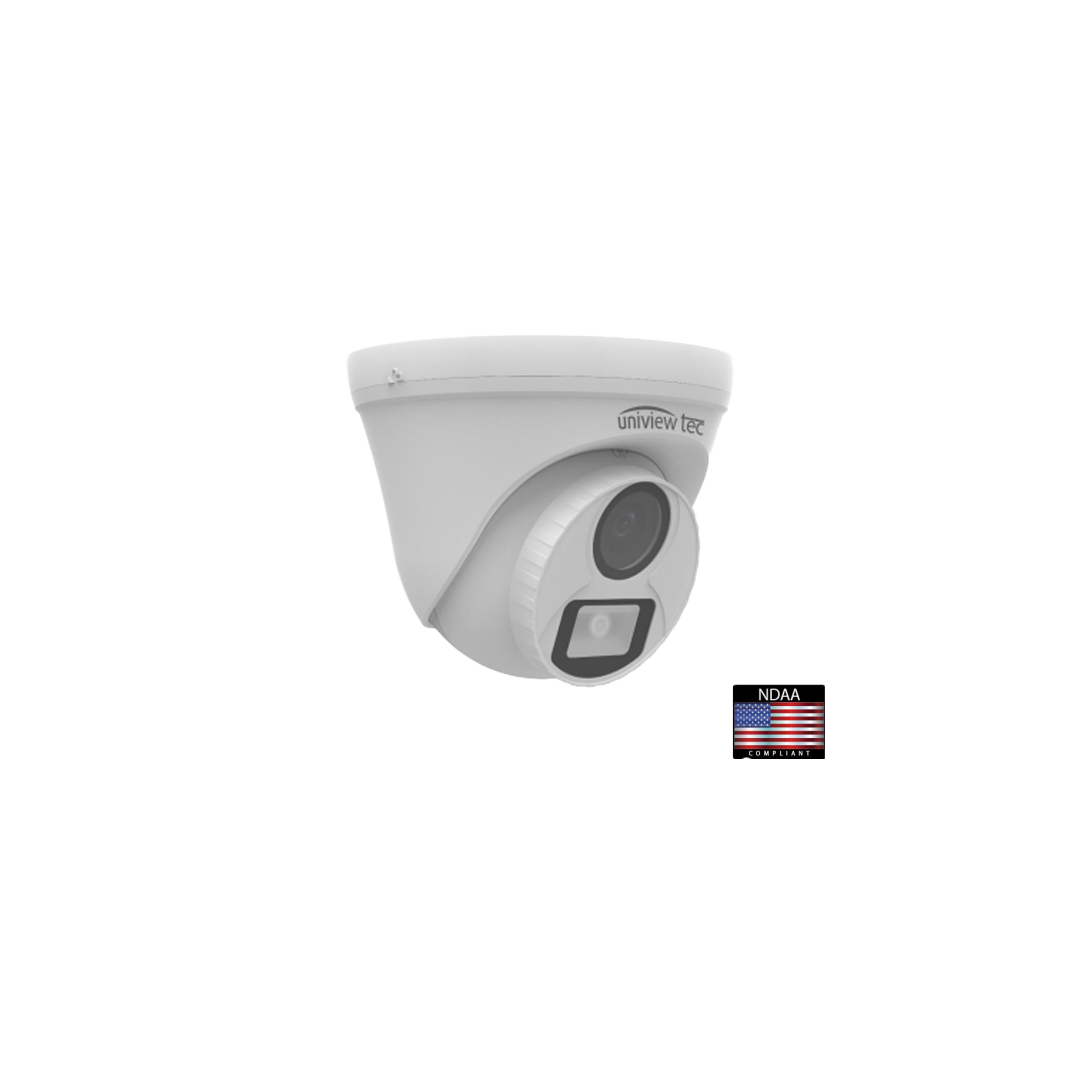

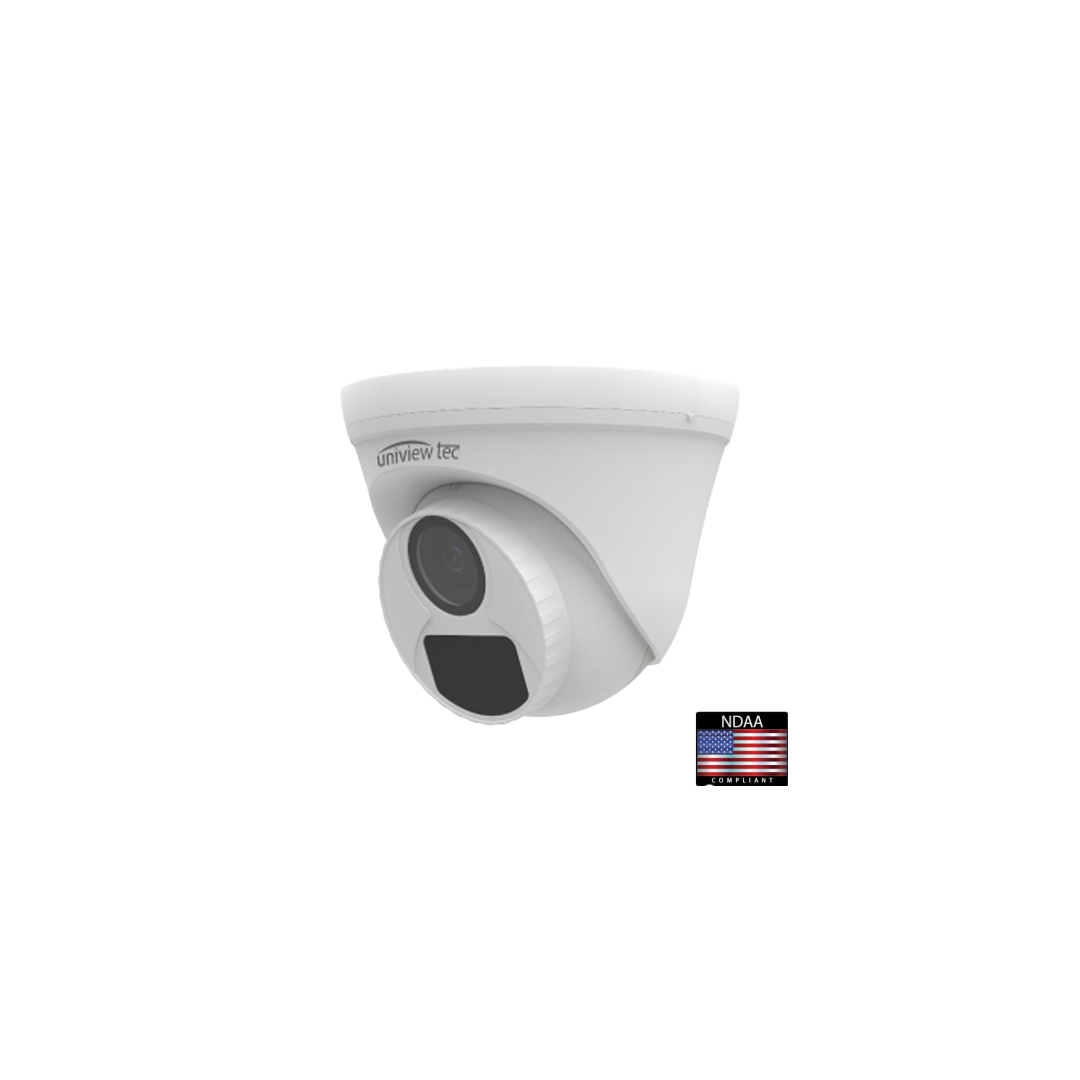

2MP HD ANALOG, COLORHUNTER, DWDR, TURRET
2MP HD ANALOG, COLORHUNTER, DWDR, TURRET
SKU:UHDT2C28X
Regular price
$63.00 USD
Regular price
Sale price
$63.00 USD
Unit price
per
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- High Video Quality with 2MP, 1980 x 1080 Resolution
- High Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
- TVI, AHD, CVI and CVBS Protocol selectable --- Engineered to work with UVT Hybrid NVR’s for Maximum Stability and Performance
- ColorHunter Technology allows 24/7 Full-Color Imaging with White Light Illumination
- TRUE Day/Night and DWDR functionality for all Lighting Conditions
- Built-in Microphone for High Quality Audio Transmission via Coax Cables
- 2.8mm fixed lens
- Backlight Compensation and 2D DNR (Digital Noise Reduction)
- Supports 180° horizontal flip, 180° vertical flip
- Easy to Operation On Screen Display (OSD) Configuration Menu
- 12VDC Power Options; IP67 Weather Resistant Housing with Optional Mounts
- Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Sensor | |
|---|---|
| Pixel | 2MP |
| Size | 1/2.9" CMOS |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (white light on) |
| Lens | |
| Focal Length | 2.8mm |
| Angle of View (H x V) | 101.5° x 56.9° |
| IR Illumination | |
| White Light | Two Illuminators; 40M (130ft) |
| Video | |
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) |
| Frame rate | TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 full-color imaging |
| Digital noise reduction | 2D / 3D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip. |
| Defog | Digital |
| Audio | |
| Microphone | Built-in |
| Camera Audio | TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI / AHD / CVI / CVBS |
| Operating Environment | |
| Temperature | -30℃ to 60℃ (-22℉ to 140℉) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4KV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 3.12W |
| Mount | Surface mount (default); optional junction box and wall mount available |
| Dimensions (Dia x H) | Φ111 x 96mm (4.4 x 3.8”) |
| Material | Metal and Plastic |
| Weight | 356g (0.79lb) |
| Certification | CE, FCC |
