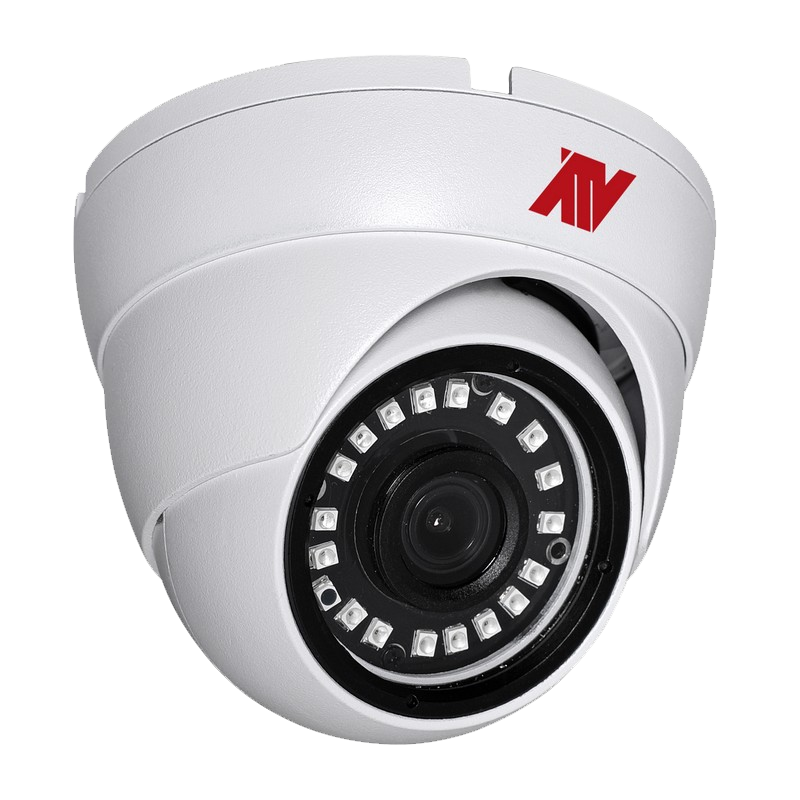

2MP Turret Security Camera with 2.8mm Lens and Night Vision
2MP Turret Security Camera with 2.8mm Lens and Night Vision
SKU:HDT228
Regular price
$59.74 USD
Regular price
Sale price
$59.74 USD
Quantity
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Overview
- 2.8mm Fixed Lens
- High Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
- TVI, AHD and CVBS Protocol selectable --- Engineered to work with ATV’s HD Analog and Legacy DVR’s for Maximum Stability and Performance
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
| IMAGE | |
|---|---|
| Image Sensor | 1/2.9” SONY Exmor CMOS: 1920 (H) x 1080 (V) Pixels |
| Min. Illumination | Color : 1.0Lux@F1.2, 50IRE; BW : 0Lux@IR LED On |
| Scanning Mode | Progressive Scan |
| Video Resolution | 1080p @ 25/30fps (TVI & AHD); 700TVL (CVBS) @ 30fps |
| IR Quality | 18 IR LED’s (850nm); Max 65ft Indoor, 45ft Outdoor |
| S/N Ratio | More Than 50dB (AGC O) |
| FUNCTIONS | |
| Camera Control | OSD (Joystick switch, Coaxial Communication) |
| Lens | Fixed 2.8mm, F2.0 |
| Day and Night Mode | True D/N (Auto, Color, B&W, External) |
| Wide Dynamic Range | Digital |
| Back Light Compensation | BLC, HSBLC |
| Noise Reduction | 2DNR, 3DNR |
| White Balance Control | AWB, ATW, AWC, Indoor, Outdoor, Manual |
| Image Effect | Freeze, Mirror, Negative Image, LSC(Shading), Defog |
| Shutter Speed | Auto, 1/60, FLK~1/50000sec |
| Sens-up | O, Auto (x2, x4, x6, x8, x10, x15, x20, x25, x30) |
| Camera Title | 15 Characters |
| Motion Detection | 4 Zones |
| Privacy Mask Zone | 4 Zones |
| Defect Detection | Live DPC, White DPC, Black DPC |
| Monitor | CRT, LCD |
| GENERAL | |
| Video Output | BNC |
| Transmission Distance | Coax Cable, RG6U (5C-2V), 1640ft (500m); RG59 (3C-2V), 984ft (300m) |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ +60°C) |
| Operating Humidity | 0~96%RH (Non-Condensing) |
| Power Supply | 12VDC±10% |
| Power Consumption | 450mA (5.4W) |
| Dimension | Ø3.64 x 2.56in (Ø92.5 x 65mm) |
| Net Weight | 0.55lb (.25kg) |
| Environmental | IP66 |
| Conformity Certifications | FCC, CE, UL |
