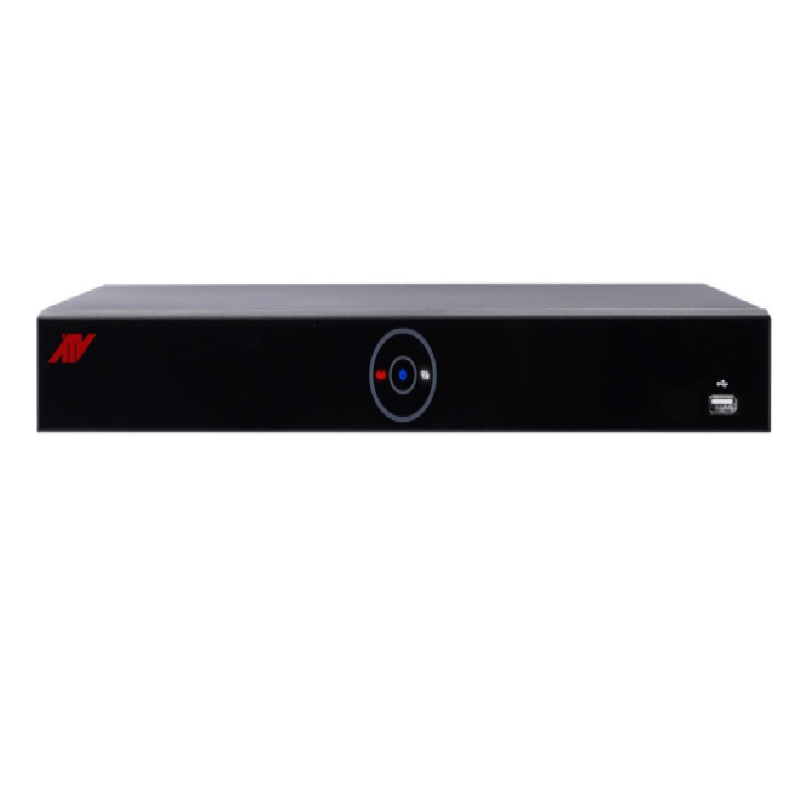

4-Channel Hybrid DVR Recorder with Dual HDD Bay
4-Channel Hybrid DVR Recorder with Dual HDD Bay
SKU:AHVR042
Regular price
$203.56 USD
Regular price
Sale price
$203.56 USD
Quantity
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Overview
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Supports 4 Video Inputs: 4 Analog (AHD, TVI, CVBS) or 3 Analog and 1 IP
- Hybrid DVR supports High Definition Analog (HD Analog) over Coax Technology for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video images from analog HD Analog cameras without any rewiring
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
- Concurrent Full HD Display on HDMI and VGA Monitor Outputs
| VIDEO | |
|---|---|
| Video Input | 4 Analog or 3 Analog and 1 IP |
| Video Input Type | BNC (AHD, TVI, CVBS); IP |
| Display Output | 1 VGA, 1 HDMI: 3840 x 2160 @ 100/120fps; 1 Spot: 640 x 480 @ 100/120fps |
| Display Mode | VGA, HDMI, Spot: 1/4 Split, Sequence |
| RECORDING | |
| Compression | H.264 / H.265 |
| Recording Resolution | BNC: 4MP, 1080p, 720p, 960H — IP: Up to 2MP |
| Recording Speed | Main Stream: 60fps @ 4MP; 120fps @ 1080p — Sub Stream: 120fps @ VGA |
| Recording Mode | Continuous, Motion, Alarm, C+M, C+A, M+A, C+M+A, Panic |
| Pre-Alarm / Post Alarm | 1~3sec / 5sec~hour |
| PLAYBACK | |
| Simultaneous Playback | 1/4 Split |
| Playback Mode | Backward, Forward 2~64x, Timelapse |
| Search Mode | Time, Event, Thumbnail, Text, Smart(Motion) |
| NETWORK | |
| Ethernet | 1 RJ45 10/100/1000 Base-T |
| Max. Network Throughput | Unlimited (Guarantee 72Mbps, Support Bandwidth Control) |
| Remote Monitoring | ATVision IP VMS and Mobile Apps |
| GENERAL | |
| PTZ & OSD Control | RS485, UTC |
| Text In | POS/ATM (ASCII, Network, VSSi-Pro) |
| Internal HDD | 2 SATA, up to 12TB each; total 24TB |
| Backup | USB: H4V and MP4 file formats |
| Audio | 4 RCA Input / 1 RCA Output, 1 HDMI Output |
| Alarm | 4 Input / 1 Output (Terminal Block), Relay 1A-24VDC / 0.5A~125VAC |
| Serial Port | 1 RS485 (Terminal Block) |
| USB | 3 x USB2.0 |
| Rack Mountable | Rack Ears Included |
| Operating Humidity | 0~90% RH (Non-Condensing) |
| Operating Temperature | 32° ~ 104°F (0° ~ 40°C) |
| Power Supply | 12VDC, 3.3A |
| Power Consumption | Max. 30W (with 2 HDD) |
| Dimension (WxHxD) | 14.7 x 1.7 x 12.5in (375 x 44.9 x 318.2mm) |
| Net Weight | 5.1lb (2.3kg) (without HDD) |
| Conformity Certifications | FCC, CE, UL |
