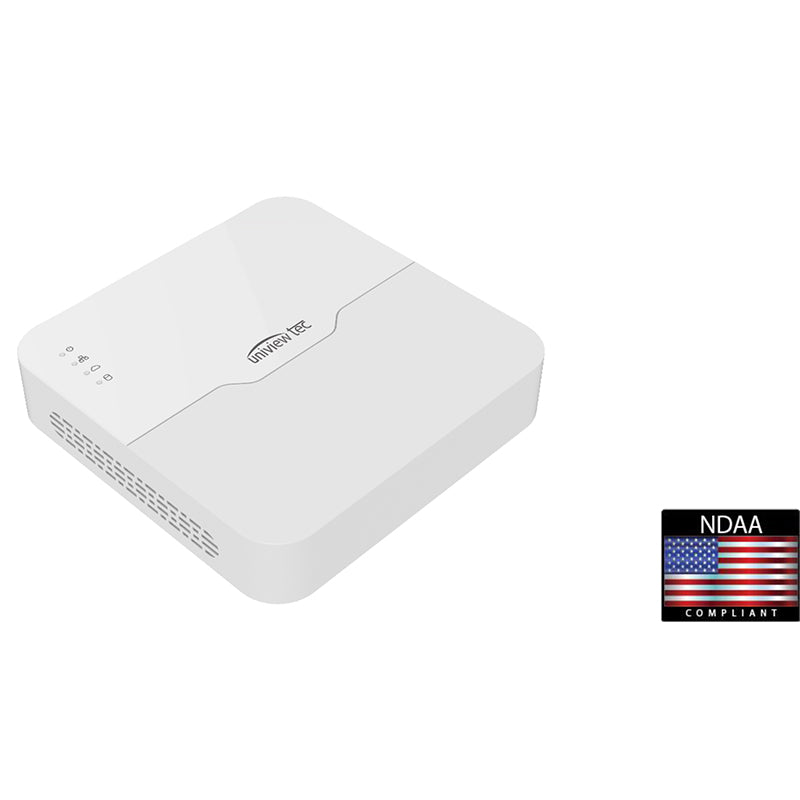

4ch, 4 PoE, 4K Resolution, H.265 NVR

4ch, 4 PoE, 4K Resolution, H.265 NVR

NR041XP-1T

$285.00 USD
$285.00 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • 4ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Capability
  • Supports 1 SATA HDD up to 8TB and has Embedded PoE Switch for all Video Channels
  • Supports recording of up to 4K (8MP), 3840 x 2160 Resolution Images
  • Display Images up to 4K(8MP) Resolution on HDMI Output
  • Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
  • Easy Plug and Play Functionality with Automatic Device Discovery and Display
  • Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades, and is ONVIF Profile S Compliant
  • Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Video & Audio Inputs
IP Video Input 4-ch
Audio Input 1-ch, RCA
Video & Audio Outputs
VGA Output 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024
x 768 / 60Hz
HDMI Output 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280
x 720 / 60Hz, 1024 x 768 / 60Hz
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 4
Live view display 1 / 4
Network
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Supported Browsers IE(IE10/11) for Windows;
Firefox (version 52.0 and above) for Windows;
Chrome(version 45 and above) for Windows;
Edge(version 79 and above) for Windows
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Decoding
Decoding format Ultra 265 / H.265 / H.264
Live view/Playback 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Capability Ultra 265 /H.265: 4 x 4K @ 30, 4 x 5MP @ 30, 4 x 4MP @ 30, 4 x 3MP @ 30, 4 x 1080p @ 30
H.264: 2 x 4K @ 30, 4 x 5MP @ 30, 4 x 4MP @ 30, 4 x 3MP @ 30, 4 x 1080p @ 30
Hard Disk Drives
SATA 1 SATA Interface
Capacity Up to 8TB for each HDD
System Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard
Disk Full, Recording/Snapshot Abnormal
Smart Features
VCA Detection by Camera Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene
Change Detection, Object Left Behind, Object Removed, Auto Tracking, UMD(Ultra Motion Detection)
VCA Search Face Search, Behavior Search, People Counting Report
People counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention
(SIP), Face Detection, UMD by
Camera		 4-ch
External Interface
Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB3.0, 1 x USB2.0
PoE
Interface 4 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 50W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 48V DC/1.35A; Power Consumption: ≤ 10W (without HDD)
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions (W × D × H) 205 × 212 × 46mm (8.1 × 8.3 × 1.8")
Weight ( without HDD ) ≤ 0.98Kg (2.16lb)
General
Certifications FCC, CE (UL – Power Supply only)
