Uniview Tech

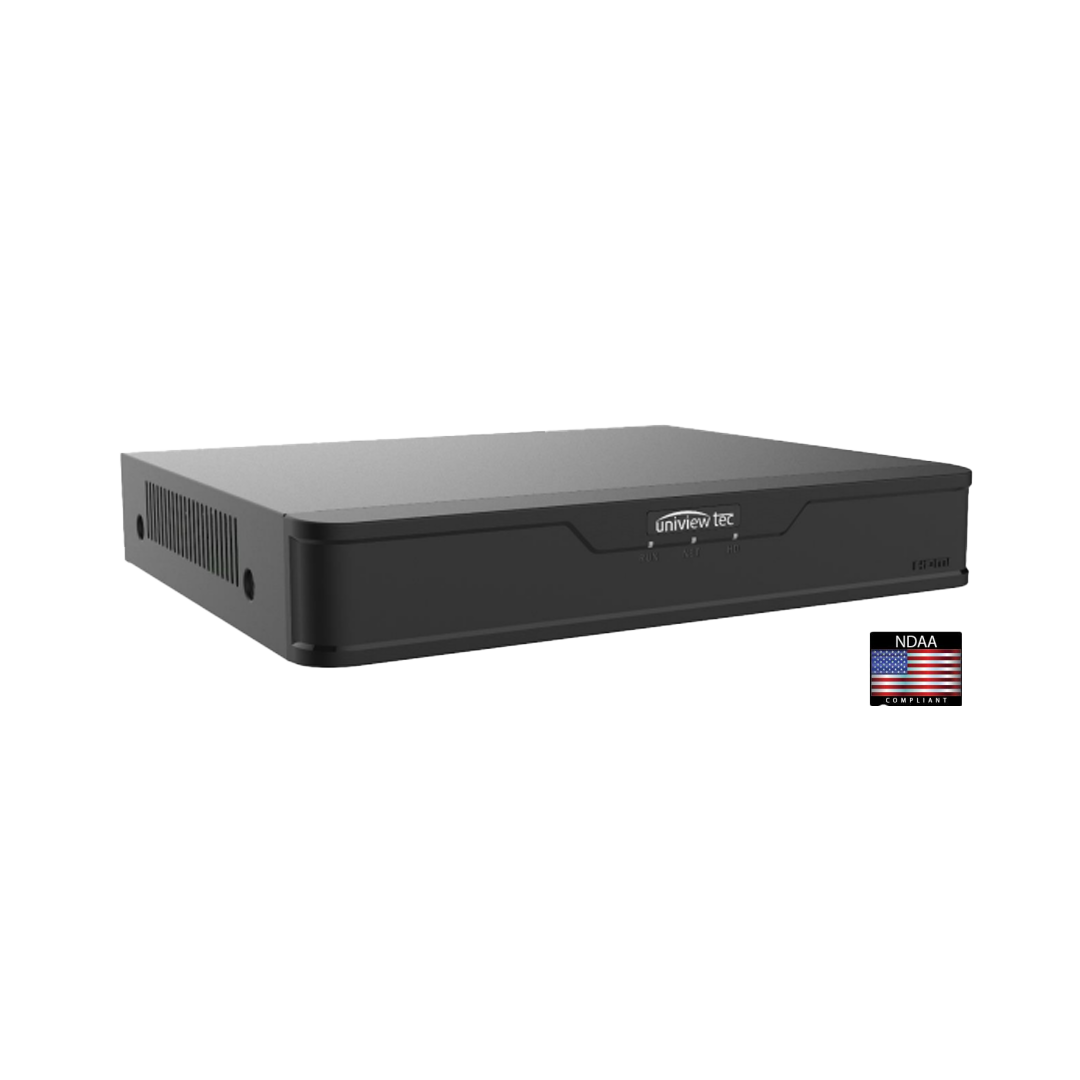

4ch Analog x 2ch IP, 8MP Resolution, Hybrid NVR
4ch Analog x 2ch IP, 8MP Resolution, Hybrid NVR
SKU:HNR041X-1T
Regular price
$235.00 USD
Regular price
Sale price
$235.00 USD
Unit price
per
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 4 analog x 2 IP Cameras, Hybrid network recorder with H.265 Compression
- Simultaneously supports 4 Analog (AHD, TVI, CVI and CVBS) and 2 IP Video Inputs with adaptive access (or up to 6 IP channels if no analog cameras are connected)
- Supports High Definition Analog (HD Analog) over Coax Technology for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video images from AHD, TVI and CVI camera without any rewiring
- Supports recording of up to 8MP Resolution for HD Analog and 4MP for IP Cameras
- Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
- HDMI display resolution up to 8MP
- Supports Audio I/O and PTZ Camera control
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Supports 1 SATA HDD up to 10TB each
- ONVIF Profile S Compliant for IP Cameras
- Long transmission distance over RG-6 coax cable up to 2000ft (600m)
- Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Video & Audio Inputs | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Analog Video Input | 4-ch, BNC | ||||||||||||
| IP Video Input | 2-ch (only IP up to 6ch); each channel up to 4MP | ||||||||||||
| Supported Analog Camera Type | Support AHD input: 8MP @ 15fps 5MP @ 20fps 4MP @ 30fps 1080P @ 30fps 720P @ 30fps Support TVI input: 8MP @ 15fps 5MP @ 20fps 4MP @ 30fps 1080P @ 30fps 720P @ 30fps Support CVI input: 8MP @ 15fps 5MP @ 25fps 4MP @ 30fps 1080P @ 30fps 720P @ 30fps Support CVBS input |
||||||||||||
| Audio Input | 1-ch, RCA | ||||||||||||
| Audio Compression | G.711U | ||||||||||||
| Video & Audio Outputs | |||||||||||||
| CVBS Output | 1-ch, BNC | ||||||||||||
| VGA Output | 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz | ||||||||||||
| HDMI Output | 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz | ||||||||||||
| Audio Output | 1-ch, RCA | ||||||||||||
| Synchronous Playback | 4 | ||||||||||||
| Live view display | HDMI / VGA: 1 / 4 / 6 / 8 / 9 | ||||||||||||
| Two-way Audio | 1-ch, RCA | ||||||||||||
| Snapshot | |||||||||||||
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to 704*576 resolution | ||||||||||||
| Network | |||||||||||||
| Incoming Bandwidth | 40Mbps (Up to 48Mbps after all analog channel conversion) | ||||||||||||
| Outgoing Bandwidth | 48Mbps | ||||||||||||
| Remote Users | 128 | ||||||||||||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | ||||||||||||
| Supported Browsers | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
||||||||||||
| Encoding | |||||||||||||
| Recording Resolution | 8MP Lite / 5MP Lite /4MP Lite / 1080P / 720P / CIF | ||||||||||||
| Recording Frame Rate |
|
||||||||||||
| Audio Sample Rate | 8KHz,16 bit per channel | ||||||||||||
| Audio Bit Rate | 64Kbps per channel | ||||||||||||
| Decoding | |||||||||||||
| Capability (fps) | Analog: 4 x 8MP Lite @ 8, 4 x 5MP Lite @ 12, 4 x 4MP Lite @ 15, 4 x 1080P @ 15 IP: 1 x 4MP @ 30, 2 x 1080P @ 30 |
||||||||||||
| Hard Disk Drives | |||||||||||||
| SATA | 1 SATA Interface | ||||||||||||
| Capacity | Up to 10TB for each HDD | ||||||||||||
| Smart Alarm | |||||||||||||
| VCA Detection | Ultra Motion Detection(UMD) for analog:4-ch | ||||||||||||
| VCA Search | Behavior Search | ||||||||||||
| System Alarm | |||||||||||||
| General Alarm | Motion detection | ||||||||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
||||||||||||
| External Interface | |||||||||||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||||||||||
| USB Interface | Rear panel: 2 x USB2.0 | ||||||||||||
| Serial Interface | 1 x RS485 | ||||||||||||
| Alarm In | 4-ch | ||||||||||||
| Alarm Out | 1-ch | ||||||||||||
| General | |||||||||||||
| Power Supply | 12V DC; Power Consumption: ≤ 10 W( without HDD ) | ||||||||||||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||||||||||||
| Dimensions (W × D × H) | 260 × 226 × 47mm (10.2 × 8.9 ×1.8") | ||||||||||||
| Weight (without HDD) | 1.1Kg (2.42lb) | ||||||||||||
| General | |||||||||||||
| Certifications | FCC, CE (UL - Power Supply only) | ||||||||||||
