Uniview Tech

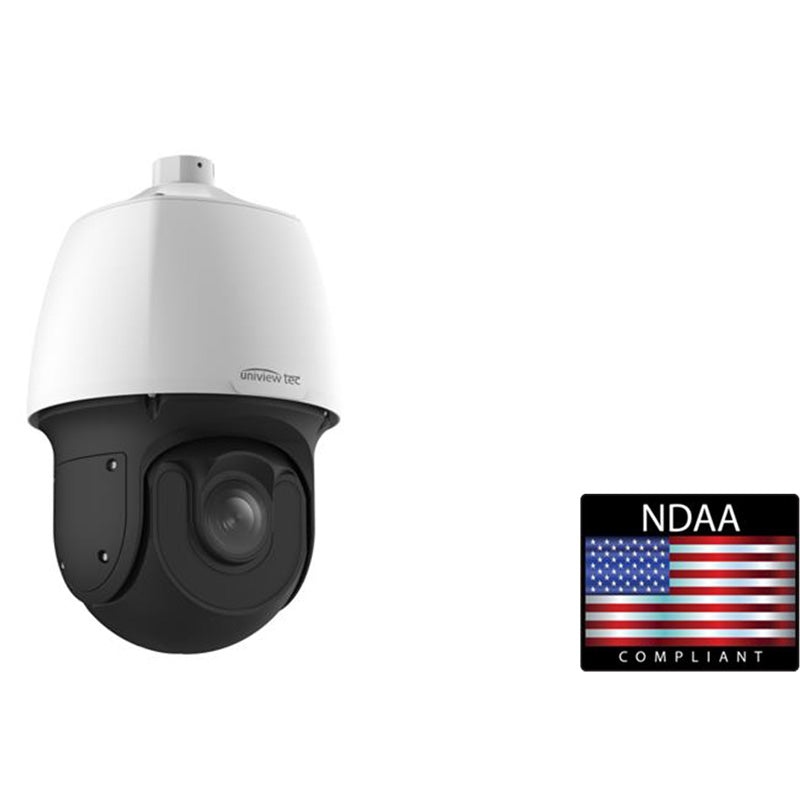

4K, 25x, True Day/Night, WDR, IR, PTZ Dome
4K, 25x, True Day/Night, WDR, IR, PTZ Dome
SKU:IPCSD4K25X
Regular price
$1,850.00 USD
Regular price
Sale price
$1,850.00 USD
Unit price
per
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- LightHunter illumination technology ensures ultra-high quality with 4K (8MP), Ultra-HD 3840 x 2160 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
- Ultra-Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 656 Feet
- 6 ~ 150mm, 25x Optical motorized zoom and automatic focus lens
- TRUE Day/Night and Digital Wide Dynamic Range Functionality for all Lighting Conditions
- Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- High Speed up to 300°/sec and up to 1024 Preset Positions
- Triple Video Streams; ONVIF Profile Series Compliant
- Intelligent Perimeter Protection with Smart Intrusion Detection Analytics
- PoE (Optional Injector Required), 24VAC and 24VDC Power Options
- Built-in Micro-SD Card Slot enables local storage up to 256GB and ANR
- IP66 Weather Resistant Housing and Optional Mounts Available
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/1.8", progressive scan , 8 megapixel CMOS |
| Lens | 6 ~ 150 mm, automatic focusing and motorized zoom lens |
| Angle of View (H x V) | 60.5° ~ 3.1° x 36.3° ~ 1.8° (wide ~ tele) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.5, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| WDR; Digital noise reduction | Digital; 2D/3D DNR |
| IR LED Range | Up to 200m (656ft) IR range |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate / Stream | Main Stream: 8MP (3840 × 2160), Max.30fps (Max 20fps when AI functions enabled) Sub Stream: 2MP (1920×1080), Max. 30fps Third Stream: D1 (720×576), Max. 30fps |
| HLC, BLC, Defog, Flip | Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 24 areas |
| Pan and Tilt; Presets, Patterns, Patrols |
360° Endless Pan, 300°/s max speed; -15° ~ 90° Tilt, 240°/s max speed; 1024 Presets; 16 Patterns; 16 Patrols |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Compatible Integration | ONVIF (Profile S, G and T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Smart Intrusion Prevention | Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection; Face capture |
| Local & Network Storage | Micro-SD, up to 256GB; Automatic Network Replenishment (ANR) |
| General | |
| Power | 24VAC, 24VDC +/- 25%, PoE (Injector Req’d): Max 58W |
| Dimensions (Ø x H) & Weight | Ø227 x 384.8mm (Ø8.9” x 15.1”); 5.6kg (12.3lb) |
| Audio I/O & Compression; Alarm I/O |
1 / 1; G711; 1/1 |
| Operating Temperature & Humidity |
-40°C ~ +65°C (-40°F ~ 149°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP66, CE, FCC |
