Uniview Tech

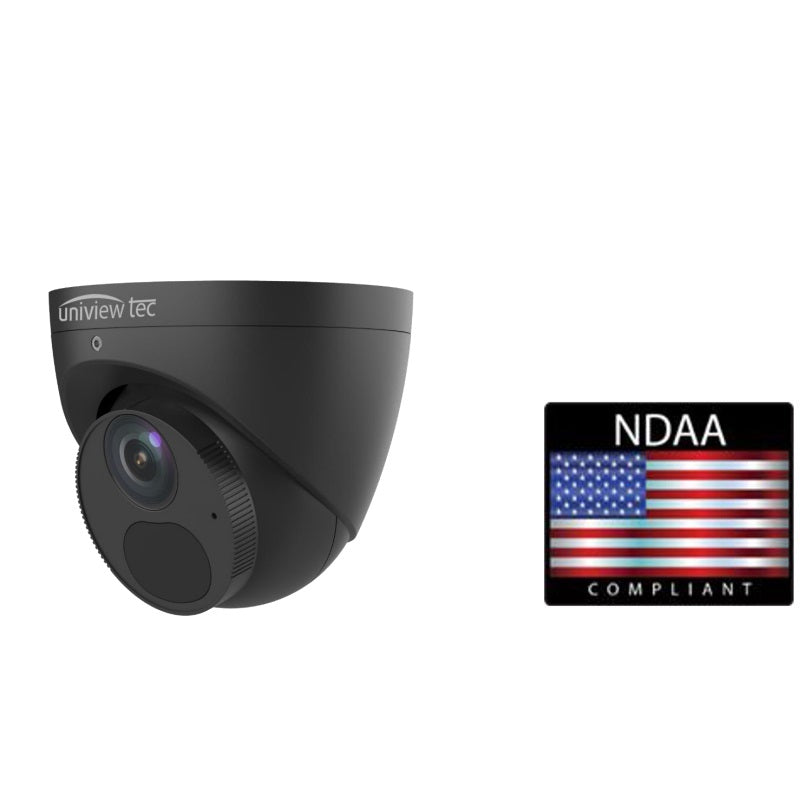

4K (8MP), TRUE DAY/NIGHT, WDR, IR TURRET DOME
4K (8MP), TRUE DAY/NIGHT, WDR, IR TURRET DOME
SKU:IPT4KE28BX
Regular price
$184.00 USD
Regular price
Sale price
$184.00 USD
Unit price
per
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 4K (8MP), 3840 x 2160 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
- 2.8 fixed, wide-angle lens
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Built-in Microphone, Backlight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)
- Dual Video Streams, ONVIF Profile S Compliant
- Intrusion Detection Analytics
- 3-Way Axis, IP67 Weather Resistant Housing and PoE & 12VDC Power Options
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Device
| Camera | |||||
|---|---|---|---|---|---|
| Sensor | 1/2.7” 8MP, progressive scan CMOS | ||||
| Minimum illumination | Color: 0.005 lux (F1.6, AGC ON); 0 lux with IR on | ||||
| True Day / Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto / Manual, 1 ~ 1/100000s | ||||
| Adjustment angle | Pan: 0° ~ 360°; Tilt: 0° ~ 80°; Rotate: 0° ~ 360° | ||||
| WDRt | 120dB | ||||
| S/N | >56dB | ||||
| Lens | |||||
| Lens | 2.8mm@F1.6 | ||||
| Iris | Fixed | ||||
| Field of View (H) | 112.9° | ||||
| Field of View (V) | 59.1° | ||||
| Field of View (O) | 121.2° | ||||
| DORI | |||||
| DORI Distance |
|
||||
| Illuminator | |||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 8MP (3840 x 2160), Max 20fps; 5MP (3072 x 1728), Max 30fps; 4MP (2560 x 1440), Max 30fps; 1080P (1920 x 1080), Max 30fps Sub Stream: 1080P (1920 x 1080), Max 30fps;720P (1280 x 720), Max 30fps; D1 (720 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF (704 x 288), Max 30fps; CIF (352 x 288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Supported | ||||
| 9:16 Corridor Mode | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Image | |||||
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||
| Digital Noise Reduction | 2D / 3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Cross Line, Intrusion (based on human body detection) motion detection, Tampering alarm, Audio detection | ||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Suppression | Support | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR, NAS (NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP,Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | Guard Station, Guard Viewer | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||
| Interface | |||||
| Built-in Mic | Support | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 4.5W | ||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Φ118 x 95mm (Φ4.6” x 3.8”) | ||||
| Weight | 0.36kg (0.79lb) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Conformity Certifications | IP67, CE, FCC | ||||
