• 4K, TRUE DAY/NIGHT, WDR, IR TURRET DOME
1 1

Uniview Tech

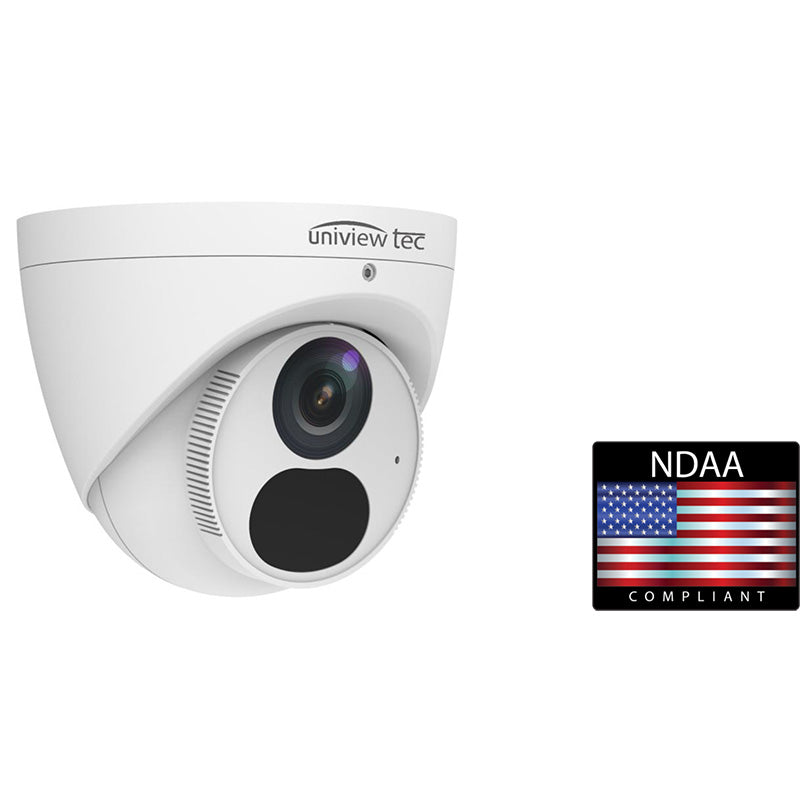

4K, TRUE DAY/NIGHT, WDR, IR TURRET DOME

4K, TRUE DAY/NIGHT, WDR, IR TURRET DOME

IPT4KE28X

$184.00 USD
$184.00 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Key Features
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 4K (8MP), 3840 x 2160 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
  • 2.8 fixed, wide-angle lens
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Built-in Microphone, Backlight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction
  • Dual Video Streams, ONVIF Profile S Compliant
  • Intrusion Detection Analytics
  • IP67 Weather Resistant Housing and PoE & 12VDC Power Options
  • 3-Way Axis and Optional Wall, Junction Box and Pole Mounts Available
  • Built-in Micro-SD Card Slot enables local storage up to 256GB
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Camera
Sensor 1/2.7", progressive scan , 8 megapixel, CMOS
Lens 2.8mm @ F1.6
Angle of View (H x V) 112.9° x 59.1°
Shutter Auto/Manual, 1/6 ~ 1/100000 s
Minimum Illumination Color: 0.005 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR LED Range / Wavelength Up to 30m (98 ft) IR range; 850nm
WDR 120dB
Video Compression & Bit Rate Ultra 265, H.265, H.264, MJPEG;
128 Kbps ~ 16 Mbps
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate/ Stream Main Stream: 8MP (3840*2160) @ Max. 20fps;
Sub: 1080P (1920*1080) @ Max. 30fps
HLC, BLC, Defog, Flip, 9:16
Corridor, Dewarping		 Supported
OSD, Privacy Mask, Motion
Detection & ROI		 Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP,
RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP,
HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, T, G), API
Local & Network Storage Micro-SD, up to 256GB; ANR
Network RJ45, 10M/100M Base-T X Ethernet
Intrusion Detection Analytics Cross Line, Intrusion, Motion & Tampering
Detection
General
Power 12 VDC, PoE (IEEE802.3 af);
Power consumption: Max 4.5W
Audio & Compression Built-in Microphone; G711
Dimensions (Ø x H) & Weight Φ118 x 95mm (Ø4.6 x 3.8”); 0.36kg (0.79lb)
3-Axis Adjustment Range Pan: 0°~360° Tilt: 0° ~ 80° Rotate: 0°~360°
Operating Temperature &
Humidity		 -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, CE, FCC
