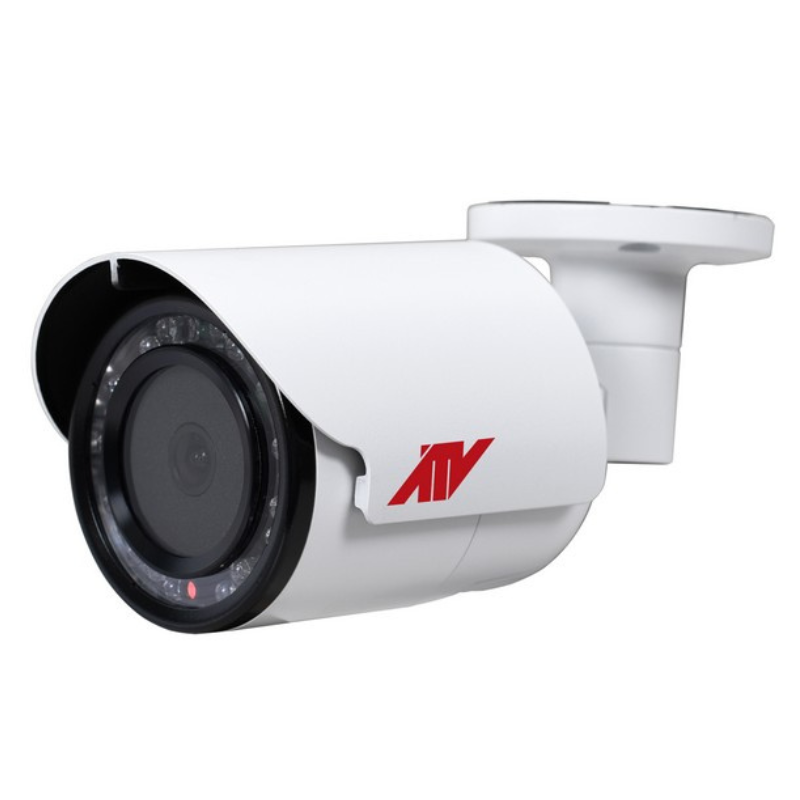

4MP Bullet Camera with 2.9mm Lens, WDR, IR & PoE
4MP Bullet Camera with 2.9mm Lens, WDR, IR & PoE
SKU:NBW429
Regular price
$105.86 USD
Regular price
Sale price
$105.86 USD
Quantity
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Overview
- 2.9mm (NBW429) or 3.6mm (NBW436) Fixed Lens
- Exceptional 4MP, 2592 x 1520 Resolution, Video Images and Powerful IR LED Lights for 0 Lux Operation up to 82ft
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
| IMAGE | |
|---|---|
| Image Sensor | Type : 1/3” CMOS Sensor |
| Min. Illumination | Color : 0.23Lux / BW : 0Lux @ F2.0, 50IRE |
| Scanning Mode | Progressive Scan |
| Resolution | 2592 x 1520 ~ 400 x 240; @ 25/30fps |
| IR | 22 IR LEDs (850nm): Max 82ft Indoor, 65ft Outdoor |
| FUNCTIONS | |
| Lens / Angle of View | Fixed 2.9mm or 3.6mm, F2.0 / 81° (H) |
| Wide Dynamic Range | True WDR (120dB) |
| Day and Night Mode | True D/N (Auto, Day, Night) |
| Noise Reduction | 3DNR |
| Image Effect | Flip, Mirror, Defog, Digital Zoom, White Balance |
| Shutter Speed | Auto (1/10,000~1sec), Manual |
| Compression | H.264(Baseline, Main, High Profile), H.265(Main Profile), MJPEG |
| Streaming | Quad Stream : H.264/H.265 x 3, MJPEG x 1 |
| Audio | G.711; 2 Way |
| Video Content Analysis | Tampering, iVMD, Intrusion, Detector |
| VMD / Privacy | 16 Areas / 8 Zones |
| Event Notification | E-mail, FTP, Notification Server, XML Notification, AIHM |
| Security | Multi User Authority, IP Filtering, HTTPS, SSL |
| Network Time Sync | NTP Server, Synchronized Computer, Manual |
| Remote Upgrade | Web Browsing (IE, Chrome, Safari, Firefox), SmartMana |
| SD Recording Mode | Event, Continuous |
| NETWORK | |
| Protocol | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour |
| Client Software & Users | ATVision IP CMS & Mobile; Max Live Users: 10; Playback Users: 3 |
| API Support | Open API, Onvif Compliance |
| GENERAL | |
| Video Composite Out | Yes |
| Audio / Alarm | 1 Input, 1 Output (Terminal Block) / 1 Input, 1 Output (Terminal Block) |
| Ethernet | RJ-45 (10/100Base-T) |
| SD Card Slot | SDHC, SDXC (128GB) |
| Operating Temp & Humidity | -22°F ~ 140°F (-30°C ~ +60°C); 0~90% RH (Non-Condensing) |
| Power Source | PoE (IEEE802.3af )/ 12VDC; 160mA (6.5W) @PoE / 530mA (5.6W) @12VDC |
| Dimensions & Weight | Ø 2.7 x 6.9in (Ø 68 x 175.8mm); 1.1lb (0.45kg) |
| Environmental | IP66 |
| Conformity Certifications | FCC, CE, UL |
