• 4MP, LIGHTHUNTER, TDN, WDR, AI, IR VANDAL
1 1

Uniview Tech

4MP, LIGHTHUNTER, TDN, WDR, AI, IR VANDAL

4MP, LIGHTHUNTER, TDN, WDR, AI, IR VANDAL

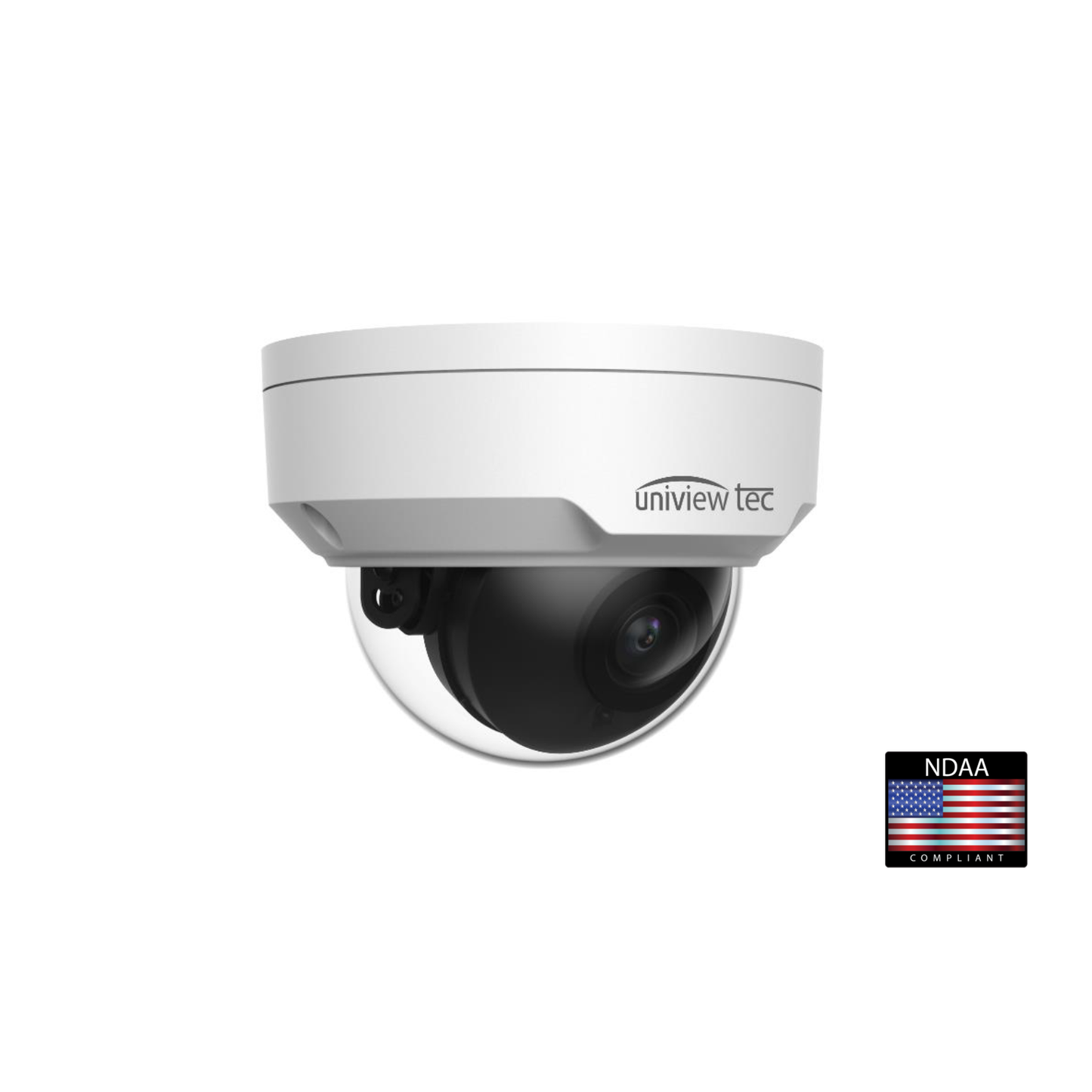

IPV428AIX

$189.00 USD
$189.00 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Key Features
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • LightHunter illumination technology ensures ultra-high color image up to 0.003 Lux (F1.6)
  • Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet
  • 2.8mm fixed lens; Triple Video Streams and ONVIF Profile S Compliant
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Two-way Audio, Corridor Mode, Backlight Compensation and 3D DNR
  • Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
  • PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
  • Built-in Micro-SD Card Slot enables local storage up to 256GB
  • 3-Way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal Housing
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Camera
Sensor 1/3", progressive scan , 4 megapixel, CMOS
Lens 2.8mm @ F1.6
Angle of View (H x V) 101.1° x 55.3°
Shutter Auto/Manual, 1 ~ 1/100000 s
Minimum Illumination Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR LED Range & Wavelength Up to 30m (98 ft) IR range; 850nm
WDR 120dB
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main: 4MP (2688 x 1520) @ 30fps
Sub: 720P (1280 x 720) @ 30fps
Third Stream: D1 (720 × 576) @ 30fps
HLC, BLC, Defog, Flip, 9:16
Corridor		 Supported
OSD, Privacy Mask, Motion
Detection & ROI		 Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,
RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,
HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, G, T), API
Network RJ45, 10M/100M Base-TX Ethernet
Smart Intrusion Prevention Cross Line, Intrusion, Enter Area, Leave Area
detection; Motion detection
Local Storage Micro-SD, up to 256GB
Network Storage Automatic Network Replenishment (ANR)
General
Power 12VDC +/-25%, PoE (IEEE802.3 af);
Power consumption: Max 4.5W
Dimensions (Ø x H) & Weight Φ108.7 x 81 mm (Ø4.3” x 3.2”); 0.45kg (0.99lb)
Audio 1 / 1; G.711 Compression
Alarm I/O 1 / 1
3-Axis Adjustment Range Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360°
Operating Temperature &
Humidity		 -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, IK10; CE, FCC
