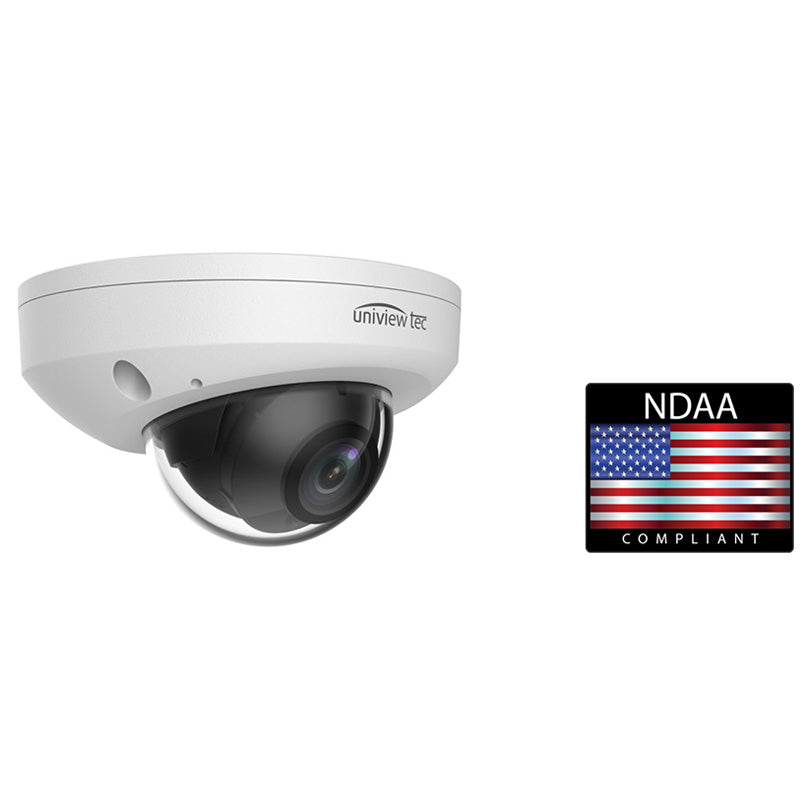

4MP, Lighthunter, WDR, IR, Low Profile Vandal
4MP, Lighthunter, WDR, IR, Low Profile Vandal
SKU:IPVLP428X
Regular price
$190.00 USD
Regular price
Sale price
$190.00 USD
Unit price
per
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- LightHunter Technology for ultra-high quality color video images in low light applications
- Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
- 2.8mm fixed lens
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Two-way Audio, Corridor View, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- Triple Video Streams and ONVIF Profile S Compliant
- Intelligent Perimeter Protection with Smart Intrusion Detection Analytics
- 3-Axis adjustments; Optional Mounts; PoE & 12VDC Power Options
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- IP66 Weather Resistant and IK10 Vandal Resistant Rated Vandal Housing
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/3", progressive scan , 4 megapixel, CMOS |
| Lens | 2.8mm @ F1.6 |
| Angle of View (H x V) | 101.1° x 55.3° |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range | Up to 30m (98ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 4MP (2688 x 1520) @ 30fps Sub: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 x 576) @ 30fps |
| HLC, BLC, 9:16 Corridor, Defog | Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, T, G), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter/Leave Area Detection |
| Local Storage | Micro-SD, up to 256GB |
| Network Storage | Automatic Network Replenishment (ANR) |
| General | |
| Power | 12VDC +/-25%, PoE (IEEE802.3 af); Power consumption: Max 6W |
| Dimensions (Ø x H) & Weight | Φ110 x 61 mm (Ø4.3” x 2.4”); 0.37kg (0.82lb) |
| Audio I/O & Compression | 1 / 1, w/ built-in Mic; G.711 Compression |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, IK10; CE, FCC |
