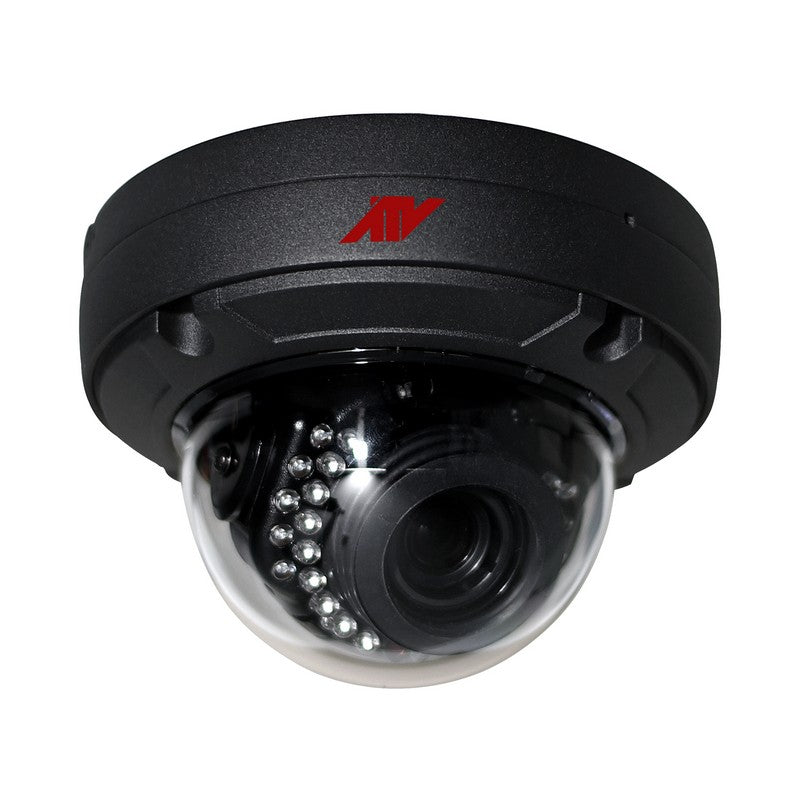

4MP Motorized Vandal Dome Camera (2.8–12mm Lens) with WDR, IR & PoE – Black Case
4MP Motorized Vandal Dome Camera (2.8–12mm Lens) with WDR, IR & PoE – Black Case
SKU:NVW4212MB
Regular price
$115.96 USD
Regular price
Sale price
$115.96 USD
Quantity
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Overview
- 2.8-12mm Motorized Vari-focal Lens
- Exceptional 4MP, 2592 x 1520 Resolution, Video Images and Powerful IR LED Lights for 0 Lux Operation up to 82ft
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
| IMAGE | |
|---|---|
| Image Sensor | Type : 1/3” CMOS Sensor Pixels : 2688(H) x 1520(V) |
| Min. Illumination | Color : 0.1Lux@F1.6 / BW : 0Lux@F1.6 (IR LED On) |
| IR | 28 IR LEDs (850nm); Max 82ft Indoor, 62ft Outdoor |
| Scanning Mode | Progressive Scan |
| Resolution | 2592 x 1520 ~ 320 x 240 @ 25/30fps Max |
| FUNCTIONS | |
| Lens / Angle of View | Motorized Varifocal 2.8~12mm / 97°~31°(H) |
| Wide Dynamic Range | True WDR |
| Day and Night Mode | True D/N (Auto, Day, Night) |
| Noise Reduction | 2DNR, 3DNR |
| Image Effect | Flip, Mirror, Defog, Digital Zoom, White Balance Control |
| Shutter Speed | Auto (1/10,000~1sec), Manual |
| Compression | H.264/H.265 (Baseline, Main, High Profile), MJPEG |
| Streaming | Quad Stream : H.264/H.265x3, MJPEGx1 |
| Audio Compression | G.711; 2 Way |
| Video Contents Analysis | Tampering, iVMD, Intrusion Detector |
| VMD / Privacy | 16 areas / 8 zones |
| Event Notification | E-mail, FTP, Notification Server, XML Notification, Audio Alert |
| Security | Multi User Authority, IP Filtering, HTTPS, SSL |
| Network Time Sync | NTP Server, Synchronized Computer, Manual |
| Remote Upgrade | Web Browsing (IE, Chrome, Safari, Firefox), SmartManager |
| SD Recording Mode | Event, Continuous |
| NETWORK | |
| Protocol | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour |
| Client Software & Users | ATVision IP CMS & Mobile; Max Live Users: 10; Playback Users: 3 |
| API Support | Open API, Onvif Compliance |
| GENERAL | |
| Video Composite Out | Yes |
| Audio / Alarm | 1 Input, 1 Output (Terminal Block) / 1 Input, 1 Output (Terminal Block) |
| Ethernet | RJ-45 (10/100Base-T) |
| SD Card Slot | SDHC, SDXC; Max 128GB |
| Operating Temp & Humidity | -22°F ~ 140°F (-30°C ~ +60°C); 0~90% RH (Non-Condensing) |
| Power Source | PoE (IEEE802.3af ) / 12VDC; 190mA (8.5W) @PoE / 710mA (7.6W) @12VDC |
| Dimensions / Weight | 5.7(Ø) x 3.86in (144(Ø) x 98mm); 1.8lb (.81kg) |
| Environmental | IP66, IK10 |
| Conformity Certifications | FCC, CE, UL |
