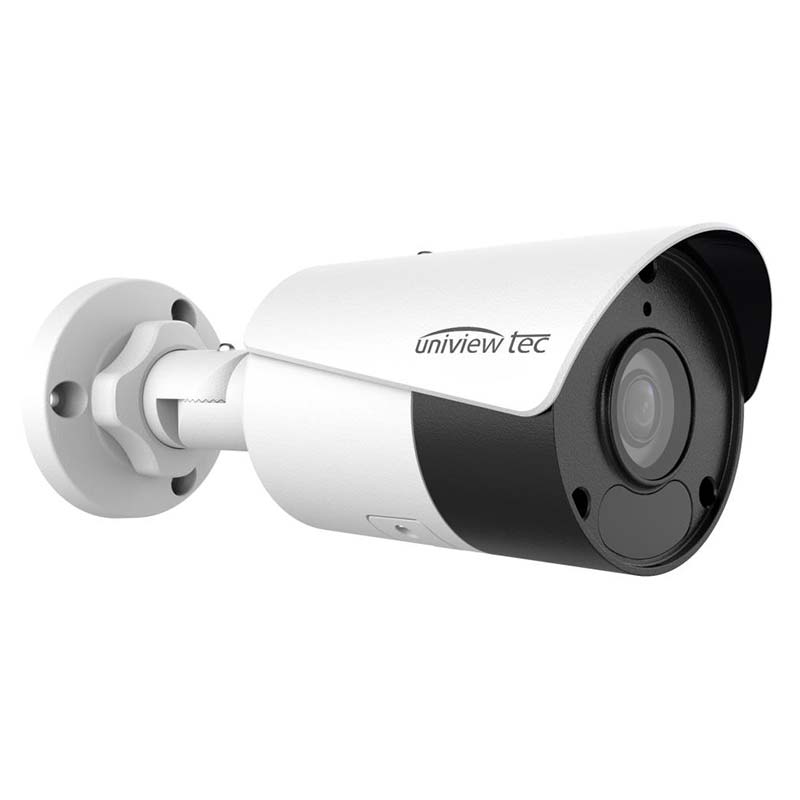

4MP TDN, WDR, IR BULLET

4MP TDN, WDR, IR BULLET

IPB4E28X

$155.00 USD
$155.00 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Key Features
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet
  • 2.8 fixed, wide-angle lens
  • Built-in Microphone, Backlight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Dual Video Streams & ONVIF Profile S Compliant
  • Intrusion Detection Analytics
  • PoE & 12VDC Power Options
  • Built-in Micro-SD Card Slot enables local storage up to 256GB
  • IP67 Weather Resistant Housing
  • 3-Way Axis and Optional Mounts Available
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Camera
Sensor 1/3", progressive scan , 4 megapixel, CMOS
Lens 2.8 mm@ F1.6
Angle of View (H x V) 101.1° x 55.3°
Shutter Auto/Manual, 1/6 ~ 1/100000 s
Minimum Illumination Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
Smart IR LED Range / Wavelength Up to 50m (164ft) IR range / 850nm
WDR 120dB
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main: 4MP (2688 x 1520) @ 25fps
Sub: 720P (1280 x 720) @ 30fps
HLC, BLC, 9:16 Corridor, Defog,
Flip		 Supported
OSD, Privacy Mask, Motion
Detection & ROI		 Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,
RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,
HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, G, T), API
Network RJ45, 10M/100M Base-TX Ethernet
Intrusion Detection Cross Line, Intrusion, Motion & Tampering
Detection
Local & Network Storage Micro-SD, up to 256GB; ANR
General
Power 12VDC, PoE (IEEE802.3 af);
Power consumption: Max 6W
Audio & Compression Built-in Mic; G.711
Dimensions (L x W x H) & Weight 190 × 73 × 71mm (7.5 × 2.9 × 2.8”);
0.45kg (0.99lb)
Operating Temperature & Humidity -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, CE, FCC
