• 4MP, True Day/Night, WDR, IR Vandal Dome
1 1

Uniview Tech

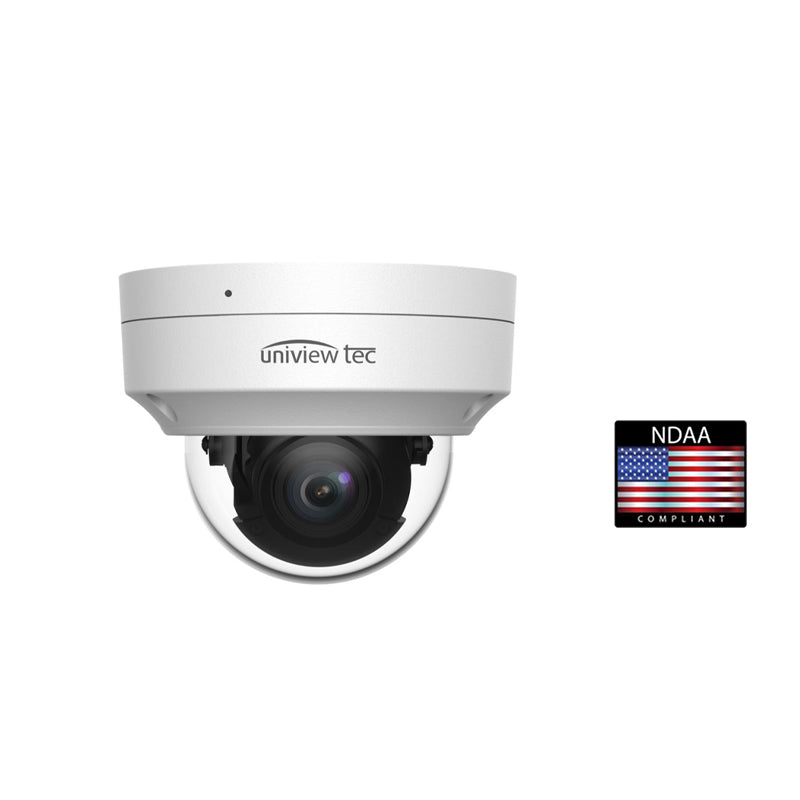

4MP, True Day/Night, WDR, IR Vandal Dome

4MP, True Day/Night, WDR, IR Vandal Dome

IPV4E212MX

$265.00 USD
$265.00 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Key Features
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 131 Feet
  • 2.8 ~ 12mm motorized varifocal, automatic focus lens
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Built-in microphone, Corridor View, Backlight Compensation, 3D DNR (Digital Noise Reduction)
  • Dual Video Streams, ONVIF Profile Series Compliant
  • PoE & 12VDC Power Options and Optional Mounts Available
  • Built-in Micro-SD Card Slot enables local storage up to 256GB
  • IP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal Housing
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Camera
Sensor 1/3", progressive scan , 5 megapixel, CMOS
Lens 2.8~12 mm, varifocal automatic focusing and motorized zoom lens
Angle of View (H x V) 102.79° ~ 30.86° x 54.5° ~ 17.49° (Wide ~ Tele)
Shutter Auto/Manual, 1 ~ 1/100000 s
Minimum Illumination Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
Signal /Noise Ratio 52dB
IR LED Range Up to 40m (131 ft) IR range
WDR 120dB
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main: 5MP (2688 x 1520) @ 25fps
Sub: 720P (1280 x 720) @ 30fps
HLC, BLC, 9:16 Corridor, Defog,
Flip		 Supported
OSD, Privacy Mask, Motion
Detection & ROI		 Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP,
RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
HTTPS, SMTP, SSL
Local Edge Storage Micro-SD, up to 256GB
Network Storage Automatic Network Replenishment (ANR)
Smart Intrusion Prevention Cross Line, Intrusion, Enter/Leave Area Detection
Compatible Integration ONVIF (Profile S, Profile T), API
Network RJ45, 10M/100M Base-TX Ethernet
General
Power 12VDC +/- 25%, PoE (IEEE802.3 af);
Power consumption: Max 7.5W
Dimensions (Ø x H) & Weight Φ128 x 100mm (Ø5.0 x 3.9”); 0.65kg (1.43lb)
Audio & Compression Built-in Mic; G.711 Compression
Operating Temperature &
Humidity		 -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, IK10; CE, FCC
