• 4MP, WDR, LONG RANGE LENS, LIGHTHUNTER BULLET
1 1

Uniview Tech

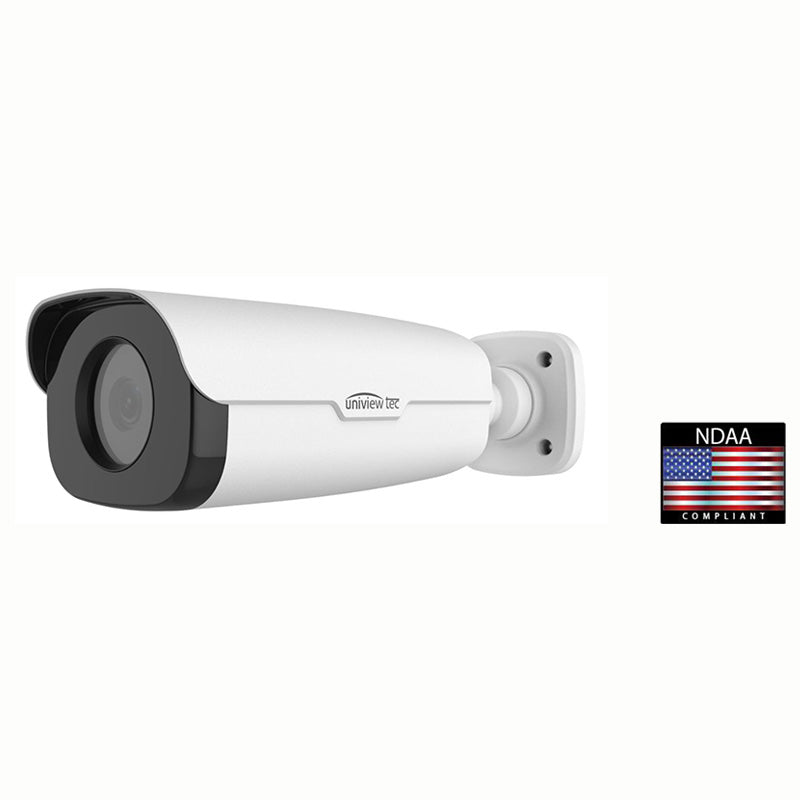

4MP, WDR, LONG RANGE LENS, LIGHTHUNTER BULLET

4MP, WDR, LONG RANGE LENS, LIGHTHUNTER BULLET

IPB46143MX

$1,624.00 USD
$1,624.00 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Key Features
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • LightHunter Technology for ultra-high quality color video images in low light applications with up 4MP, 2688 x 1520 Resolution
  • Long Range 6.5 ~ 143mm, 22x motorized varifocal, automatic focus lens
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 492 Feet
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Two-way Audio, Corridor Mode, Backlight Compensation and 3D Digital Noise Reduction
  • Five Video Streams; ONVIF Profile S Compliant; Optional Mounts
  • Smart Intrusion Prevention, including Cross Line and Intrusion with False Alarm Filtering, & Face Capture Recognition
  • PoE & 24VAC Power Options & Built-in Micro-SD Card Slot enables local storage up to 256GB and Automatic Network Replenishment (ANR)
  • IP67 Weather Resistant Housing and Composite Video Output for Test Monitor and Built-in Heater
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Camera
Sensor 1/1.8", progressive scan , 4 megapixel, CMOS
Lens 6.5 ~ 143mm, DC Iris, varifocal
automatic focusing and motorized zoom lens
Angle of View (H x V) 60.47° ~ 3.49° x 36.3° ~ 1.97° (Wide ~ Tele)
Minimum Illumination Color: 0.001 Lux (F1.5, AGC ON); 0 Lux with IR
Day/Night & WDR IR-cut filter with auto switch (ICR); 120dB WDR
R LED Range / Digital Noise
Reduction / Shutter		 Up to 150m (492ft) IR range / 2D/3D /
Auto/Manual, 1 ~ 1/100000s
Video Compression / H.264 Code Ultra 265, H.265, H.264, MJPEG / Baseline
profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main Stream: 4MP (2688 x 1520): Max. 30 fps;
Sub Stream: 2MP (1920 x 1080): Max. 30 fps;
Third Stream: D1 (720 x 576): Max. 30 fps;
Fourth Stream: D1 (720 x 576): Max. 30 fps;
Fifth Stream: D1 (720 x 576): Max. 30 fps
HLC, BLC, 9:16 Corridor, Defog,
OSD, Privacy, Motion, ROI, Heater		 Supported
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,
RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,
HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,
SSL/TLS
Network 1 x RJ45, 10M/100M/1000M Base-TX Ethernet &
1 x 100M/1000 SFP
Smart Intrusion Prevention False Alarm Filtering: Line Crossing, Intrusion,
Region entrance / exit; Face Capture Recognition;
Statistical Analysis
Compatible Integration ONVIF (Profile S, G & T); API
Local & Network Storage Micro-SD, up to 256GB; ANR
General
Power 24VAC +/- 25%, PoE (IEEE802.3 at); Max 15W
Dimensions (L x W x H) & Weight 395 × 137 × 112mm (15.6 × 5.4 × 4.4”);
3.7kg (8.16lb)
Audio I/O & Compression 1 / 1; G.711 compression
Alarm I/O & Serial Port 2 / 1; 1 x RS485
Video Output 1 x BNC; Impedance 75 Ω; Amplitude 1 V [p-p]
Operating Temperature & Humidity -40°C ~ +60°C (-40°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, CE, FCC
