• 5MP, Intelligent, Color Hunter, Fixed Turret
1 1

Uniview Tech

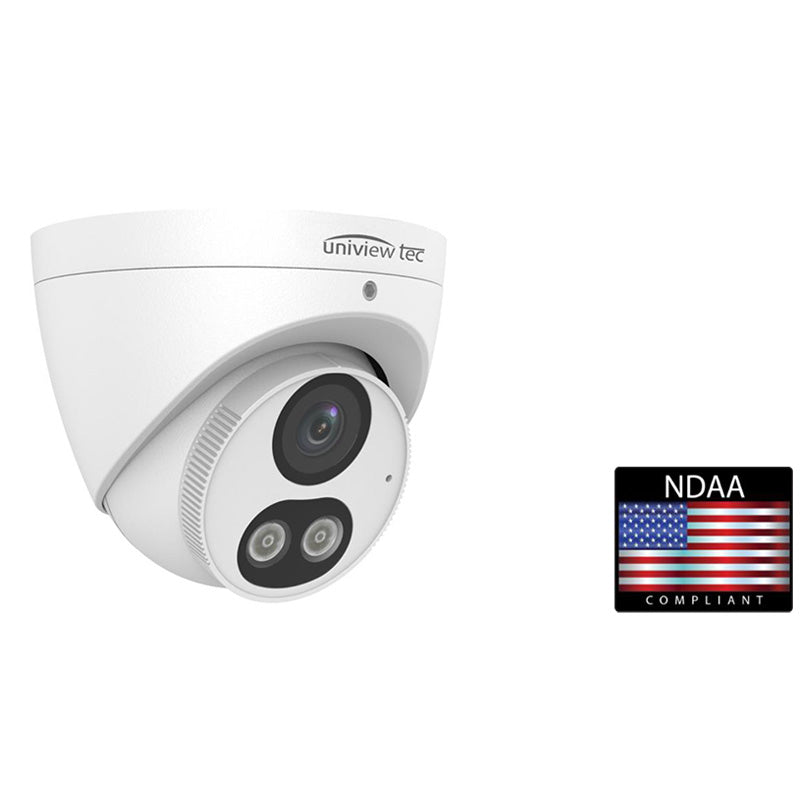

5MP, Intelligent, Color Hunter, Fixed Turret

5MP, Intelligent, Color Hunter, Fixed Turret

IPT5C28X

$234.00 USD
$234.00 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Key Features
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 5MP, 2880 x 1620 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Color Hunter technology with White LED’s ensures 24-hour full-color images up to 98 feet
  • 2.8mm fixed lens, TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Built-in Microphone, Corridor, Backlight Compensation and 3D DNR (Digital Noise Reduction)
  • Triple Video Streams & ONVIF Profile S Compliant
  • Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
  • PoE & 12VDC Power Options and Built-in Micro-SD Card Slot enables local storage up to 256GB
  • IP67 Weather Resistant Housing, and Optional Mounts Available
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Camera
Sensor 1/2.7", progressive scan , 5 megapixel, CMOS
Lens 2.8mm @ F1.0
Angle of View (H x V) 102.0° x 53.4°
Shutter Auto/Manual, 1 ~ 1/100000 s
Minimum Illumination Color: 0.001 Lux (F1.0, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
White LED Range Up to 30m (98 ft)
WDR 120dB
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main Stream: 5MP (2880 × 1620) @ 30fps
Sub Stream: 720P (1280 x 720) @ 30fps
Third Stream: D1 (720 × 576) @ 30fps
HLC, BLC, Defog, Corridor 9:16 Mode Supported
OSD, Privacy Mask, Motion Detection & ROI Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,
RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,
HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF Profile S, API
Network RJ45, 10M/100M Base-TX Ethernet
Intelligent Perimeter Protection Cross Line, Intrusion, Enter Area, Leave Area
detection; Motion detection
Local Storage Micro-SD, up to 256GB
Network Storage Automatic Network Replenishment (ANR)
General
Power 12VDC +/- 25%,, PoE (IEEE802.3 af);
Power consumption: Max 7.5W
Audio & Compression Built in microphone; G.711
Dimensions (L x W x H) & Weight Φ110.5 x 94.1mm (Ø4.4 x 3.7”);
0.44kg (0.97lb)
Operating Temperature &
Humidity		 -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, CE, FCC
