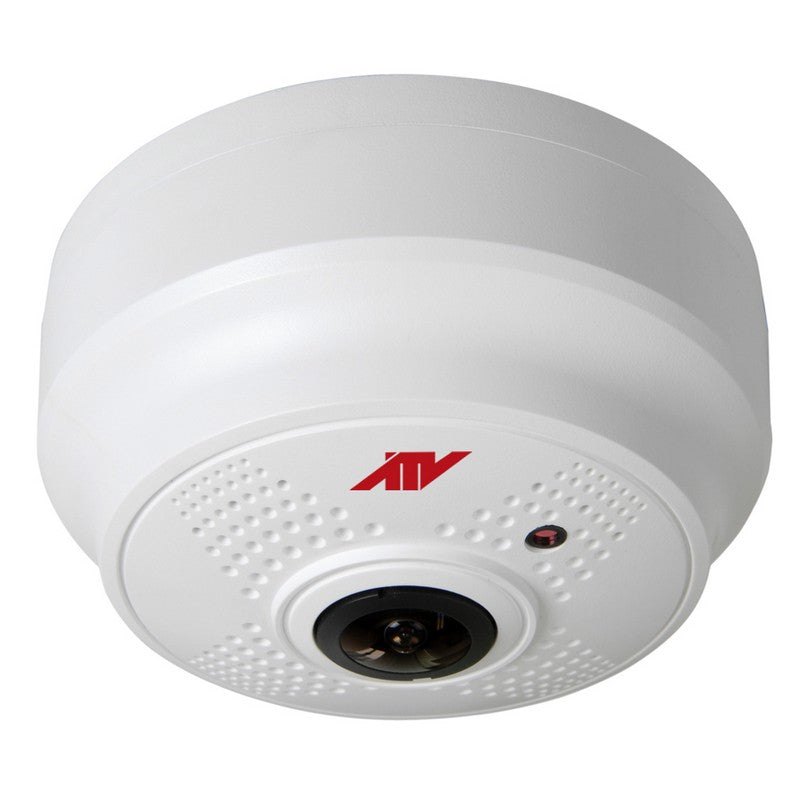

5MP Panoramic Fisheye Camera with 12mm Lens, SD Slot & PoE
5MP Panoramic Fisheye Camera with 12mm Lens, SD Slot & PoE
SKU:NFE5360
Regular price
$181.02 USD
Regular price
$362.04 USD
Sale price
$181.02 USD
Quantity
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Overview
- Ultra-wide angle 1.05mm, 360° Panoramic Lens
- Exceptional 5MP, 2592 x 1944 Resolution, Video Images
- Multiple Display Modes: 90°, 180° & 360°
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
| IMAGE | |
|---|---|
| Image Sensor | Type : 1/1.8” SONY Starvis CMOS Sensor Pixels : 3096(H) x 2080(V) |
| Min. Illumination | Color : 0.3Lux / BW : 0.07Lux @F2.8, 50IRE |
| Scanning Mode | Progressive Scan |
| Resolution | 2592 x 1944 ~ 480 x 480; @ 12.5/15fps |
| FUNCTIONS | |
| Lens / Angle of View | Fixed 1.05mm, F2.8 / 180° (H) |
| Wide Dynamic Range | D-WDR (ATR-EX) |
| Noise Reduction | 3DNR |
| Image Effect | Flip, Mirror, Aisle, Defog, HLC, BLC, Digital Zoom, White Balance |
| Shutter Speed | Auto (1/10,000~1sec), Manual |
| Compression | H.264 (Baseline, Main, High Profile), MJPEG |
| Streaming | Triple Stream : H.264 x 2, MJPEG x 1 |
| Audio | G.711; 2 Way |
| VMD / Privacy | 16 Areas / 8 Zones |
| Event Notification | E-mail, FTP, Notification Server, XML Notification, AIHM |
| Security | Multi User Authority, IP Filtering, HTTPS, SSL |
| Network Time Sync | NTP Server, Synchronized Computer, Manual |
| Remote Upgrade | Web Browsing (IE, Chrome, Safari, Firefox), SmartManager |
| SD Recording Mode | Event, Continuous |
| Day and Night Mode | True D/N (Auto, Day, Night) |
| NETWORK | |
| Protocol | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour |
| Client Software & Users | ATVision IP CMS & Mobile; Max Live Users: 10; Playback Users: 3 |
| API Support | Open API, Onvif Compliance |
| GENERAL | |
| Audio / Alarm | Audio / Alarm |
| Ethernet | RJ-45 (10/100Base-T) |
| SD Card Slot | SDHC, SDXC (128GB) |
| Operating Temp & Humidity | 14~122°F (-10~+50ºC); 0~90% RH (Non-Condensing) |
| Power Source | PoE (IEEE802.3af )/ 12VDC; 110mA (5.3W) @PoE / 400mA (4.8W) @12VDC |
| Dimensions & Weight | Ø 4.7 x 2.5in (Ø 119 x 63.8mm); 0.6lb (0.27kg) |
| Conformity Certifications | FCC, CE, UL |
