• 5MP, TDN, WDR, IR, 360° Fisheye Dome
1 1

Uniview Tech

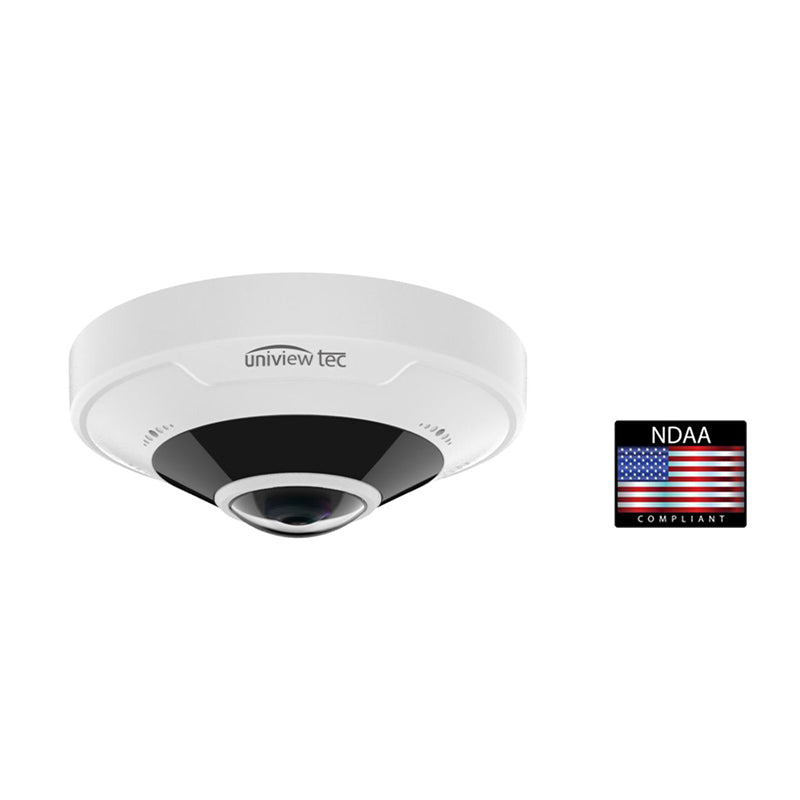

5MP, TDN, WDR, IR, 360° Fisheye Dome

5MP, TDN, WDR, IR, 360° Fisheye Dome

IPFE5360X

$370.00 USD
$370.00 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Key Features
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 5MP, 2592 x 1944 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Embedded IR LED Light, 0Lux Night Time Operation up to 33 Feet
  • Ultra-wide angle, 1.4mm, 360°panoramic lens
  • TRUE Day/Night and Wide Dynamic Range functionality for all Lighting Conditions
  • Two-way Audio w/ built-in microphone, Backlight Compensation, and 3D DNR (Digital Noise Reduction)
  • Triple Video Streams and ONVIF Profile S Compliant
  • PoE & 12VDC Power Options and Built-in Micro-SD Card Slot enables local storage up to 256GB
  • IP66 Weather Resistant & IK10 Impact Resistant, Vandal Housing
  • Optional Mounting Accessories Available
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Camera
Sensor 1/2.8", progressive scan , 5 megapixel, CMOS
Lens 1.4mm @ F2.0
Shutter Auto/Manual, 1/6 s ~ 1/100000 s
Angle of View 360°
Minimum Illumination Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR LED Range Up to 10m (33ft) IR range
WDR 120dB
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main Profile, High Profile
Frame Rate /Stream Main Stream: (2592 × 1944): Max.30fps;
Sub Stream: (1920 × 1080): Max.30fps;
Third Stream: D1 (720 x 576): Max.30 fps
BLC, Defog Supported
OSD, Privacy Mask, Motion
Detection & ROI		 Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,
RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,
HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, G, T), API
Network RJ45, 10M/100M Base-TX Ethernet
Local & Network Storage Micro-SD, up to 256GB; ANR
General
Power 12VDC +/-25%, PoE (IEEE802.3af); Max. 8.5W
Dimensions (Ø x H) & Weight Ø125 x 44mm (Ø4.9 x 1.7”); 0.36kg (0.79lb)
Audio I/O & Compression Built-in microphone; G711
Alarm I/O 1 / 1
Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Operating Temperature & Humidity -30°C ~ 60°C (-22°F ~ 140°F); Humidity: 10%~ 95%
RH (non-condensing)
Conformity Certifications IP66, IK10, CE, FCC
