Uniview Tech

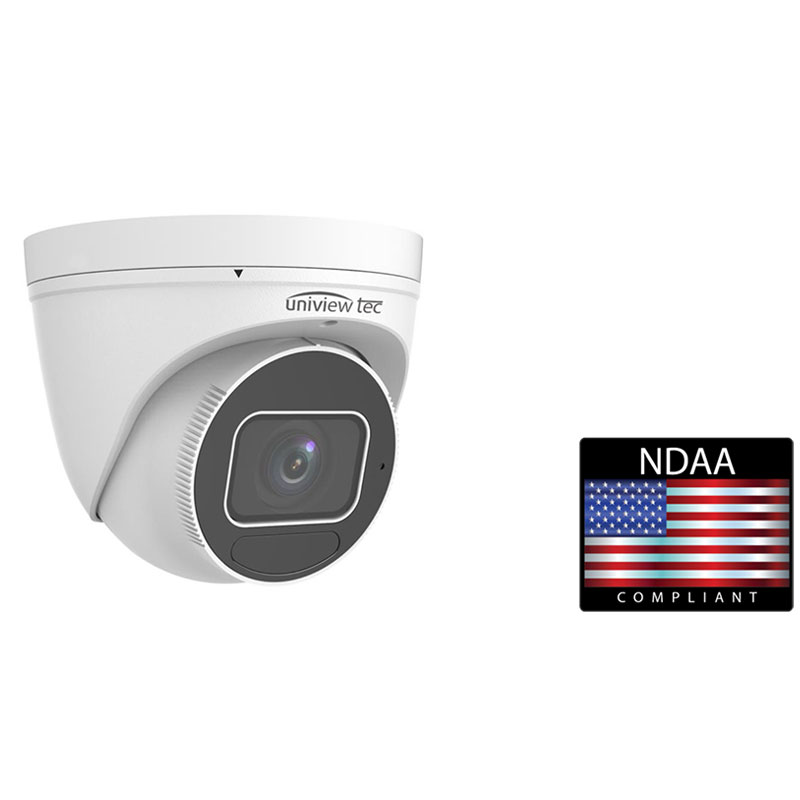

5MP, TDN, WDR, IR, LIGHTHUNTER TURRET DOME
5MP, TDN, WDR, IR, LIGHTHUNTER TURRET DOME
SKU:IPT5213MX
Regular price
$428.00 USD
Regular price
Sale price
$428.00 USD
Unit price
per
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- LightHunter illumination technology ensures ultra-high image quality in low light applications
- Exceptional Video Quality with 5MP, 2880 x 1620 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 131 Feet
- 2.7 ~ 13.5mm motorized varifocal, automatic focus lens
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Built-in microphone, Corridor View, Backlight Compensation and 3D DNR
- Powerful Intelligent Video Analytics, Triple Video Streams; ONVIF Profile S Compliant; PoE & 12VDC Power Options
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- IP67 & IK10 Rated Housing, with Optional Wall and Pendant Mounts Available
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 5 megapixel, CMOS |
| Lens | 2.7~13.5mm, varifocal automatic focusing and motorized zoom lens |
| Angle of View (H x V) | 106.25° ~ 30.42° x 56.36° ~ 17.22° (wide ~ tele) |
| Shutter | AAuto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.002 Lux (F1.2, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range / Wavelength | Up to 40m (131 ft) IR range / 850nm |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main Stream: 5MP (2880 x 1620) @25 fps; 4MP (2560 x 1440) @25 fps; 3MP (2304 x 1296) @25fps; 2MP (1920 x 1080) @30 fps Sub: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 × 576) @ 30fps |
| HLC, BLC, 9:16 Corridor, Defog, Flip | Supported |
| OSD, Privacy, Motion & ROI | Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP |
| Compatible Integration | ONVIF (Profiles S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intelligent Video Analytics | Cross line, intrusion, enter area, leave area detection |
| Local Storage | Micro-SD, up to 256GB |
| Network Storage | Automatic Network Replenishment (ANR) |
| General | |
| Power | 12VDC +/- 25%, PoE (IEEE802.3 af); Max 7W |
| Dimensions (Ø x H) & Weight | Φ129 x 110mm (Ø5.1 x 4.3”); 0.67kg (1.48lb) |
| Audio & Compression | Built-in microphone; G711 |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, IK10, CE, FCC |
