Uniview Tech

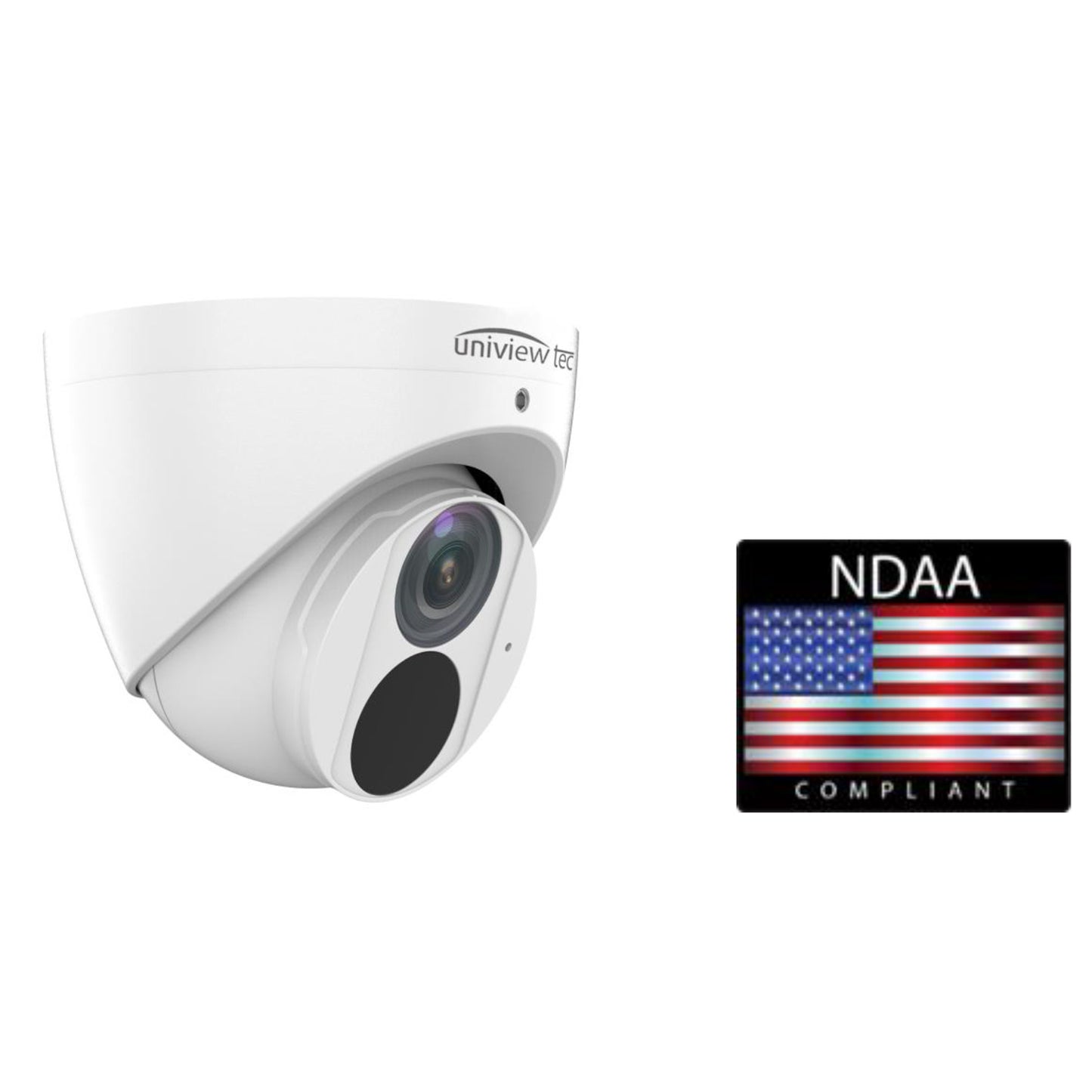

5MP, TDN, WDR, IR, Lighthunter Turret Dome
5MP, TDN, WDR, IR, Lighthunter Turret Dome
SKU:IPT528AIX
Regular price
$218.00 USD
Regular price
Sale price
$218.00 USD
Unit price
per
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- LightHunter illumination technology ensures ultra-high color image up to 0.003 Lux (F1.6)
- Exceptional Video Quality with 5MP, 2880 x 1620 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet
- 2.8mm fixed lens, Triple Video Streams, ONVIF Profile S Compliant
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Built-in microphone, Corridor View, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- Triple Video Streams, ONVIF Profile S Compliant; PoE & 12VDC Power Options
- Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- IP67 Weather Resistant Housing, Optional Wall and Pendant Mounts Available
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan , 5 megapixel, CMOS |
| Lens | 2.8mm@ F1.6 |
| Angle of View (H x V) | 96.1° x 55.3° |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range | Up to 30m (98 ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main Stream: 5MP (2880 x 1620) @ 30 fps; 4MP (2560 x 1440) @ 30 fps; 3MP (2304x 1296) @ 30 fps; 2MP (1920 x 1080) @ 30 fps Sub: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 × 576) @ 30fps |
| HLC, BLC, Flip, 9:16 Corridor, Defog | Supported |
| OSD, Privacy Mask, Motion Detection & ROI | Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intelligent Perimeter Protection | Cross Line, Intrusion, Enter Area, Leave Area detection; Motion detection |
| General | |
| Power | 12VDC +/- 25%, PoE (IEEE802.3 af); Max 4W |
| Dimensions (Ø x H) & Weight | Φ110.5 x 94.1mm (Ø4.4 x 3.7”); 0.425kg (0.93lb) |
| Audio & Compression | Built-in microphone; G.711 |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
