• 5MP, True Day/Night, WDR, IR Bullet
  • 5MP, True Day/Night, WDR, IR Bullet
1 2

Uniview Tech

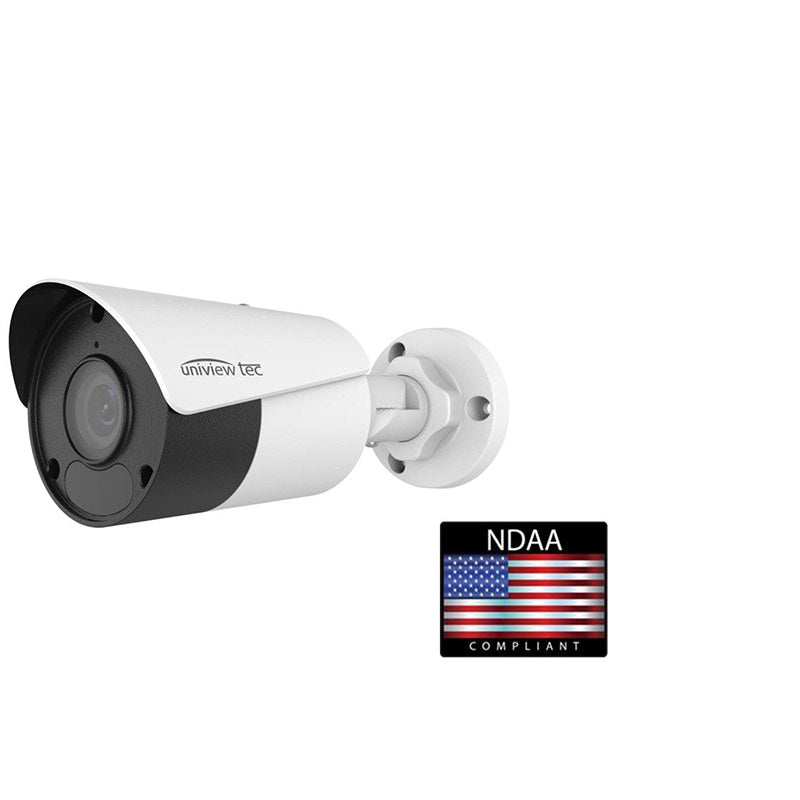

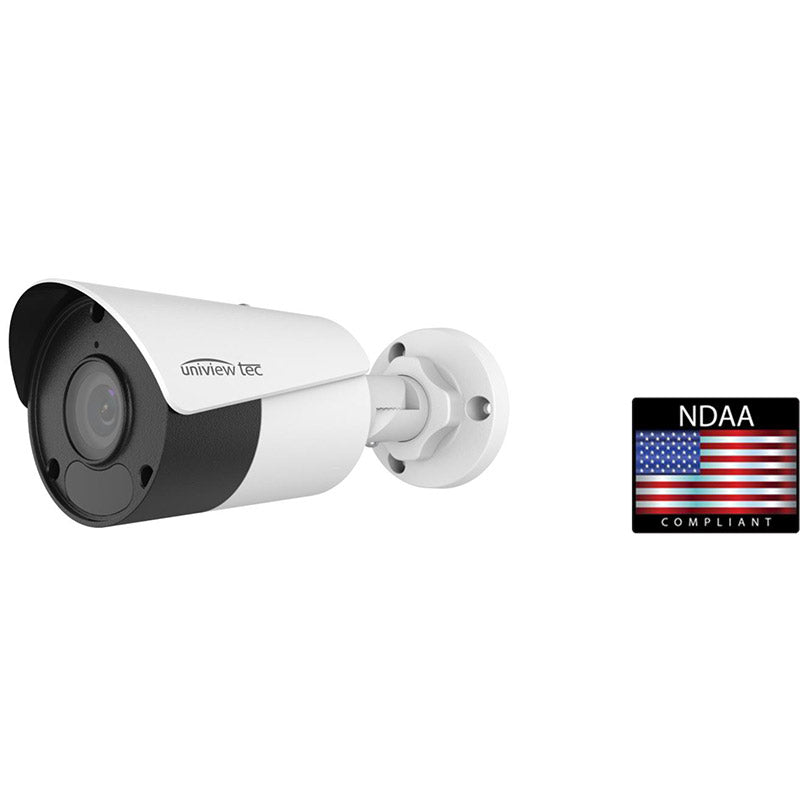

5MP, True Day/Night, WDR, IR Bullet

5MP, True Day/Night, WDR, IR Bullet

IPB5E40X

$104.00 USD
$104.00 USD
Sale Sold out
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

View full details
Key Features
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 5MP, 2880 x 1620 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet
  • 2.8 ~ 12mm motorized varifocal, automatic focus lens
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • One way Audio w/ built in microphone, Corridor Mode, Backlight Compensation, 3D DNR (Digital Noise Reduction)
  • ONVIF Profile S Compliant, PoE & 12VDC Power Options
  • Smart Behavior Video Analytics such as Intrusion, Tampering, Audio and Human Body Detection
  • Built-in Micro-SD Card Slot enables local storage up to 256GB
  • IP67 Weather Resistant Housing and Optional Mounts Available
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Camera
Sensor 1/2.7", progressive scan , 5 megapixel, CMOS
Lens 4mm @ F1.6
Angle of View (H x V) 91.2° x 47.9°
Shutter Auto/Manual, 1 ~ 1/100000 s
Minimum Illumination Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
Signal / Noise Ratio >52dB
IR LED Range Up to 50m (164 ft) IR range
WDR 120cB
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main: 5MP (2860 x 1620) @ 30fps
Sub: 720P (1280 x 720) @ 30fps
HLC, BLC, 9:16 Corridor, Flip Supported
OSD, Privacy Mask, Motion
Detection & ROI		 Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP,
RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP,
HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
Local Storage Micro-SD, up to 256GB
Network Storage Automatic Network Replenishment (ANR)
Compatible Integration ONVIF (Profile S, G, T), API
Network RJ45, 10M/100M Base-TX Ethernet
General
Power 12VDC +/- 25%, PoE (IEEE802.3 af);
Power consumption: Max 6W
Audio & Compression Built-in microphone; G.711 Compression
Dimensions (L x W x H) & Weight 190 × 73 × 71mm (7.5 × 2.9 × 2.8”);
0.45kg (0.99lb)
Operating Temperature & Humidity -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, CE, FCC
