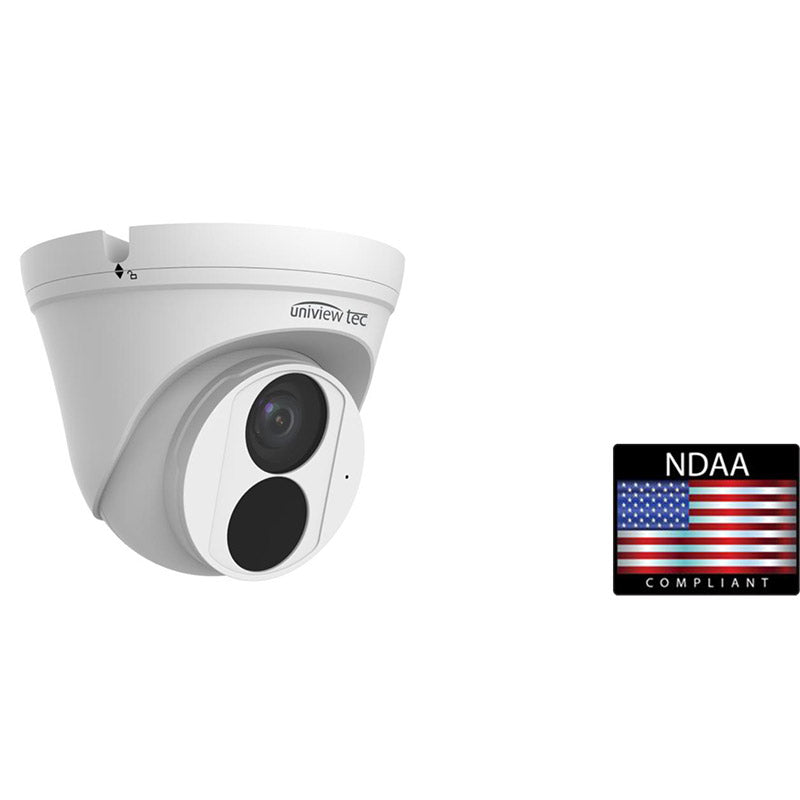

• 5MP, True Day/Night, WDR, IR Turret Dome
1 1

Uniview Tech

5MP, True Day/Night, WDR, IR Turret Dome

5MP, True Day/Night, WDR, IR Turret Dome

IPT5E28X

$161.00 USD
$161.00 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Key Features
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 5MP, 2880 x 11620 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet
  • 2.8mm fixed lens
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Built-in Microphone, Backlight Compensation, 3D DNR (Digital Noise Reduction); ONVIF Profile Series Compliant
  • Built-in Micro-SD Card Slot enables local storage up to 256GB
  • Defog, Corridor Mode, Privacy Mask and Motion Detection, Dual Video Streams
  • Intelligent Perimeter Protection with Smart Intrusion Detection Analytics
  • PoE & 12VDC Power Options and Optional Mounts Available; IP67 Weather Resistant Housing
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Camera
Sensor 1/2.7", progressive scan , 5 megapixel, CMOS
Lens 2.8mm @ F1.6
Angle of View (H x V) 112.9° x 59.1°
Shutter Auto/Manual, 1 ~ 1/100000 s
Minimum Illumination Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
Signal / Noise Ratio >52dB
IR LED Range Up to 30m (98 ft) IR range
WDR 120dB
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main: 5MP (2880 x 1620) @ 25fps
Sub: 720P (1280 x 720) @ 30fps
HLC, BLC, 9:16 Corridor, Defog,
Flip		 Supported
OSD, Privacy Mask, Motion
Detection & ROI		 Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP,
RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
HTTPS, SMTP, SSL
Local Storage Micro-SD, up to 256GB
Network Storage ONVIF (Profile S, Profile T), API
Smart Intrusion Prevention Cross Line, Intrusion, Enter/Leave Area Detection
Compatible Integration ONVIF (Profile S, Profile T), API
Network RJ45, 10M/100M Base-T X Ethernet
General
Power 12 V DC, PoE (IEEE802.3 af);
Power consumption: Max 4W
Audio & Compression Built-in microphone; G.711 Compression
Dimensions (Ø x H) & Weight Φ118 x 95 mm (Ø4.6 x 3.8”); 0.35kg (0.77lb)
Operating Temperature &
Humidity		 -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, CE, FCC
