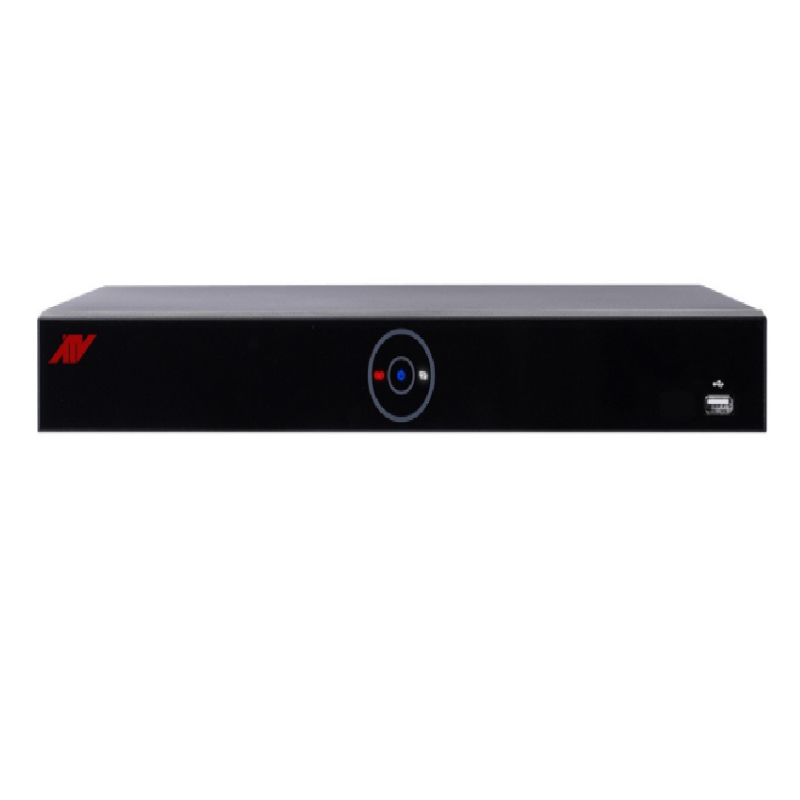

8-Channel PoE NVR Recorder with Dual HDMI/VGA Output & 2TB HDD
8-Channel PoE NVR Recorder with Dual HDMI/VGA Output & 2TB HDD
SKU:ANVR08P22T
Regular price
$247.56 USD
Regular price
Sale price
$247.56 USD
Quantity
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Overview
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- H.265 Compression for Best-in-Class Recording and Storage
- 8ch Recording up to 4K (8MP) Resolution Images
- Concurrent Display on HDMI and VGA Monitor Outputs
- Embedded PoE Switch for all Video Channels
- 2 SATA HDD Bays
| VIDEO | |
|---|---|
| Video Input | 8 IP, up to 4K (8MP) |
| Display Output | 1 VGA, 1 HDMI; 3840x2160 ~ 1024x768 @ 200 / 240fps |
| Display Mode | 1 / 4 / 8 / 9 Split, Sequence |
| RECORDING | |
| Compression | H.264, H.265 |
| Recording Speed | 200 / 240fps @ 8MP |
| Max. Recording | 80Mbps |
| Recording Mode | Continuous, Motion, Alarm, C+M, C+A, M+A, C+M+A, Panic |
| Pre / Post Alarm | 1~3sec / 5sec~1hour |
| PLAYBACK | |
| Simultaneous Playback | 1 / 4 / 8 / 9 Split |
| Playback Mode | Backward, Forward 2~64x, Timelapse |
| Search Mode | Time, Event, Thumbnail, Text, Smart (Motion), VCA |
| NETWORK | |
| Ethernet | WAN: 1 RJ45 10/100/1000 Base-T; PoE: 8 RJ45 10/100 Base-T; PoE Power: 60W (IEEE802.3at/af Compliance) |
| Max. Output Throughput | Unlimited (Guarantee 144Mbps, Support Bandwidth Control) |
| Remote Monitoring | Web, ATVision IP CMS & Mobile Apps |
| GENERAL | |
| Text In | POS/ATM (ASCII, Network, VSSi-Pro) |
| Internal HDD | 2 SATA up to 12TB each, total 24TB |
| Backup | USB: H4V, MP4 File Formats |
| Audio | 1 RCA Input, 8 IP Cameras / 1 RCA, 1 HDMI |
| Alarm | 8 Input / 1 Output (Terminal Block), Relay 1A-24VDC / 0.5A~125VAC |
| Serial Port | 1 RS485 (Terminal Block) |
| USB | 2 USB2.0 |
| Rack Mountable | Rack Ears Included |
| Operating Humidity | 0~90% RH (Non-Condensing) |
| Operating Temperature | 32°~104°F (0~+40ºC) |
| Power Supply | 48VDC, 2A (96W) |
| Power Consumption | 32W (with 2 HDD and w/o PoE) |
| Dimension (WxHxD) | 14.7 x 1.7 x 12.5 in (375 x 44.9 x 318.2 mm) |
| Net Weight | 5.5lb (2.5kg) (without HDD) |
| Conformity Certifications | FCC, CE, UL |
SPECIFICATION SHEET
Download Here
USER MANUAL
Download Here
