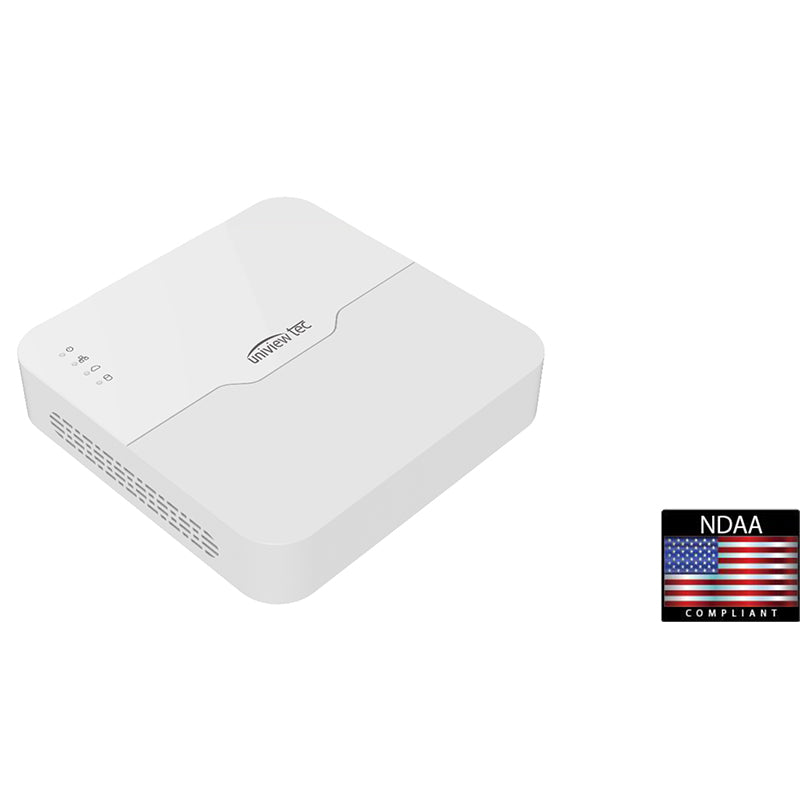

Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 8ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Capability
- Supports 1 SATA HDD up to 8TB and has Embedded PoE Switch for all Video Channels
- Supports recording of up to 4K(8MP), 3840 x 2160Resolution Images
- Display Images up to 4K(8MP) Resolution on HDMI Output
- Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades, and is ONVIF Profile S Compliant
- Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Video & Audio Inputs | |
---|---|
IP Video Input | 8 ch |
Audio Input | 1-ch, RCA |
Video & Audio Outputs | |
VGA Output | 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz |
HDMI Output | 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz |
Audio Output | 1-ch, RCA |
Audio Compression | G.711A, G.711U |
Synchronous Playback | 8 |
Live view display | 1 / 4 / 6 / 8 / 9 |
Network | |
Incoming Bandwidth | 80Mbps |
Outgoing Bandwidth | 64Mbps |
Remote Users | 128 |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
Supported Browsers | IE(IE10/11) for Windows; Firefox (version 52.0 and above) for Windows; Chrome(version 45 and above) for Windows; Edge(version 79 and above) for Windows |
Snapshot | |
FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
Decoding | |
Decoding format | Ultra 265 / H.265 / H.264 |
Live view/Playback | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
Capability | Ultra 265 /H.265: 4 x 4K @ 30, 6 x 5MP @ 30, 8 x 4MP @ 30, 10 x 3MP @ 30, 16 x 1080p @ 30 H.264: 2 x 4K @ 30, 4 x 5MP @ 30, 6 x 4MP @ 30, 8 x 3MP @ 30, 14 x 1080p @ 30 |
Hard Disk Drives | |
SATA | 1 SATA Interface |
Capacity | Up to 8TB for each HDD |
System Alarm | |
General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
Smart Features | |
VCA Detection by Camera | Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, UMD(Ultra Motion Detection) |
VCA Search | Face Search, Behavior Search, People Counting Report |
People counting | People Flow Counting, Crowd Density Monitoring |
Smart Intrusion Prevention (SIP), Face Detection, UMD by Camera | 8-ch |
External Interface | |
Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 |
PoE | |
Interface | 8 x RJ-45 10M/100M self-adaptive Ethernet Interface |
Max Power | Max 30W for single port Max 75W in total |
Supported Standard | IEEE 802.3af/at |
General | |
Power Supply | 52V DC / 1.8A; Power Consumption: ≤ 10W (without HDD) |
Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
Dimensions (W × D × H) | 205 × 212 × 46mm (8.1 × 8.3 × 1.8") |
Weight ( without HDD ) | ≤ 0.98Kg (2.16lb |
General | |
Certifications | FCC, CE (UL – Power Supply only) |
