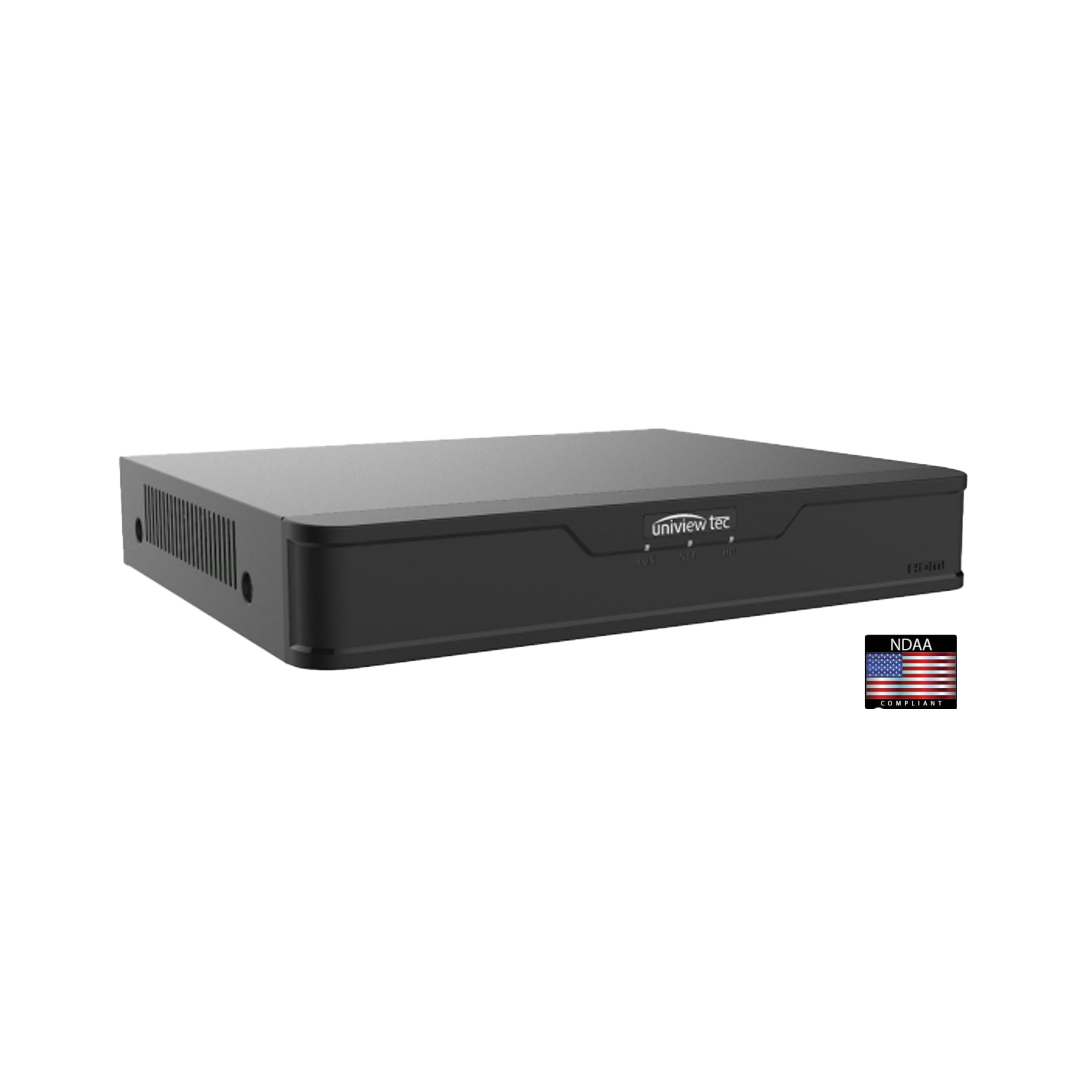

Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 8 analog x 4 IP Cameras, Hybrid network recorder with H.265 Compression
- Simultaneously supports 8 Analog (AHD, TVI, CVI and CVBS) and 4 IP Video Inputs with adaptive access (or up to 6 IP channels if no analog cameras are connected)
- Supports High Definition Analog (HD Analog) over Coax Technology for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video images from AHD, TVI and CVI camera without any rewiring
- Supports recording of up to 8MP Resolution for HD Analog and IP Cameras
- Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
- HDMI display resolution up to 8MP
- Supports Audio I/O and PTZ Camera control
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Supports 1 SATA HDD up to 10TB each
- ONVIF Profile S Compliant for IP Cameras
- Long transmission distance over RG-6 coax cable up to 2000ft (600m)
- Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Video & Audio Inputs | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Video Input | 8-ch, BNC | ||||||||||||
IP Video Input | 4-ch (only IP up to 12ch); each channel up to 8MP | ||||||||||||
Supported Analog Camera Type |
Support AHD input: 8MP @ 15fps 5MP @ 20fps 4MP @ 30fps 1080P @ 30fps 720P @ 30fps Support TVI input: 8MP @ 15fps 5MP @ 20fps 4MP @ 30fps 1080P @ 30fps 720P @ 30fps Support CVI input: 8MP @ 15fps 5MP @ 25fps 4MP @ 30fps 1080P @ 30fps 720P @ 30fps Support CVBS input |
||||||||||||
Audio Input | 1-ch, RCA | ||||||||||||
Audio Compression | G.711U | ||||||||||||
Video & Audio Outputs | |||||||||||||
CVBS Output | 1-ch, BNC | ||||||||||||
VGA Output | 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz | ||||||||||||
HDMI Output | 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz | ||||||||||||
Audio Output | 1-ch, RCA | ||||||||||||
Synchronous Playback | 8 | ||||||||||||
Live view display | HDMI / VGA: 1 / 4 / 6 / 8 / 9 / 16 | ||||||||||||
Two-way Audio | 1-ch, RCA | ||||||||||||
Snapshot | |||||||||||||
FTP/Schedule/Event Snapshot | 8-ch snapshot, up to 704 x 576 resolution | ||||||||||||
Network | |||||||||||||
Incoming Bandwidth | 40Mbps (Up to 56Mbps after all analog channel conversion) | ||||||||||||
Outgoing Bandwidth | 64Mbps | ||||||||||||
Remote Users | 128 | ||||||||||||
Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | ||||||||||||
Supported Browsers | IE(IE10/11) for Windows; Firefox (version 52.0 and above) for Windows; Chrome(version 45 and above) for Windows; Edge(version 79 and above) for Windows |
||||||||||||
Encoding | |||||||||||||
Recording Resolution | 8MP Lite / 5MP Lite /4MP Lite / 1080P / 720P / CIF | ||||||||||||
Recording Frame Rate |
|
||||||||||||
Audio Sample Rate | 8KHz,16 bit per channel | ||||||||||||
Audio Bit Rate | 64Kbps per channel | ||||||||||||
Decoding | |||||||||||||
Capability (fps) | Analog: 8 x 8MP Lite @8, 8 x 5MP Lite @12, 8 x 4MP Lite @15, 8 x 1080P @15 IP: 1 x 8MP @ 30, 2 x 4MP @ 30, 4 x 1080P @ 30 |
||||||||||||
Hard Disk Drives | |||||||||||||
SATA | 1 SATA Interface | ||||||||||||
Capacity | Up to 10TB for each HDD | ||||||||||||
Smart Alarm | |||||||||||||
VCA Detection | Ultra Motion Detection (UMD) for analog: 8-ch | ||||||||||||
VCA Search | Behavior Search | ||||||||||||
General Alarm | |||||||||||||
General Alarm | Motion detection | ||||||||||||
Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
||||||||||||
External Interface | |||||||||||||
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||||||||||
USB Interface | Rear panel: 2 x USB2.0 | ||||||||||||
Serial Interface | 1 x RS485 | ||||||||||||
Alarm In | 4-ch | ||||||||||||
Alarm Out | 1-ch | ||||||||||||
General | |||||||||||||
Power Supply | 12V DC; Power Consumption: ≤ 10 W( without HDD ) | ||||||||||||
Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||||||||||||
Dimensions (W × D × H) | 260 × 226 × 47mm (10.2 × 8.9 ×1.8") | ||||||||||||
Weight (without HDD) | 1.1Kg (2.42lb) | ||||||||||||
General | |||||||||||||
Certifications | FCC, CE (UL - Power Supply only) |
