Uniview Tech

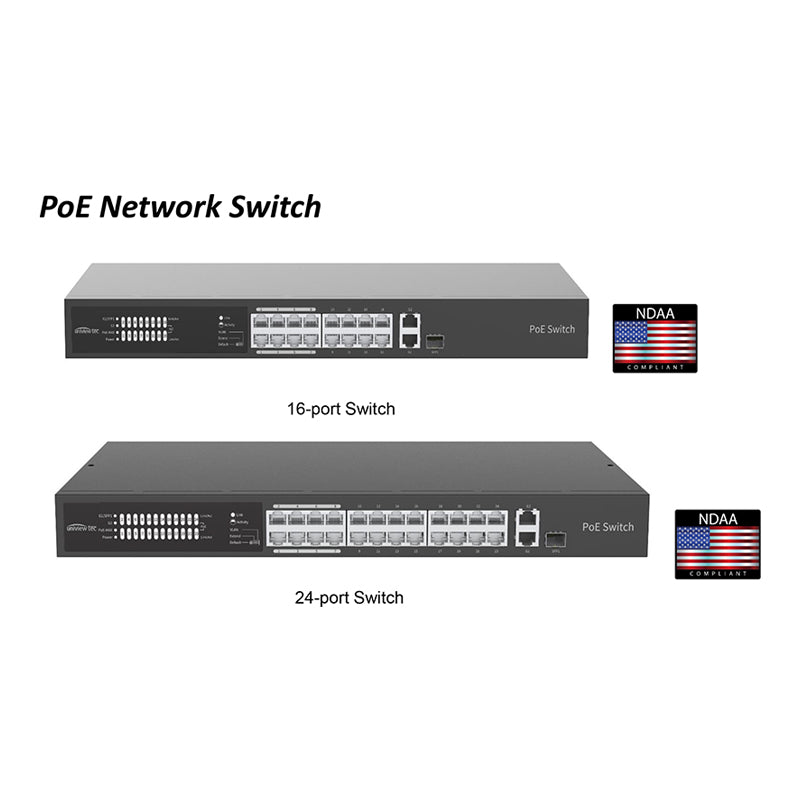

24-Port PoE Network Switch

24-Port PoE Network Switch

NSW242PX

$576.00 USD
$576.00 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Key Features
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • 24 x 100Mbps RJ45 PoE ports, 370W Total Capacity – model NSW242PX
  • Each model has 1 x 1000Mbps SFP port and 2 x 1000Mbps Gigabit Ports
  • Support buffer optimization and port traffic control
  • Multiple working modes to address all applications: Normal, Secure and Surveillance
  • PoE complies with IEEE802.3af/at, up to 30W for single port
  • Up to 825ft (250m) transmission distance on EXTEND (Surveillance) mode
  • High quality, metal housing and built-in cooling fan
Video Test Monitor
Ports 16 or 24 × 100Base-TX RJ45 PoE ports;
1 x 1000Mbps SFP port and 2 x 1000Mbps Gigabit Ports
Standards IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x,
IEEE802.3af, IEEE802.3at, IEEE802.3az
MAC 16K
Packet Forwarding Rate 5.36Mpps (16 port); 6.55Mpps (24 port)
Switching Capacity 7.2Gbps (16 port); 8.8Gbps (24 port)
Work Modes Default (Normal mode): All ports can communicate with each other.
EXTEND (Surveillance mode): Transmission distance up to 250 meters.
VLAN (Secure mode): Downlink ports can communicate only with uplink ports (24 port only)
Indicator LED’s PWR: Steady on: AC input is normal;
Off: No AC input
PoE: Off: No PoE power supply;
Steady on: PoE power supply is normal
Flashing: PoE power supply is abnormal
LINK/ACT: Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data
PoE 802.3at/af: Max capacity for single port = 30W
16-port Max PoE capacity: 225W
24-port Max PoE capacity: 370W
Internal Cooling Fans 1, each model
AC Voltage 100-240V, 50/60Hz
Operating Temperature 0°C-40°C (32°F-104°F)
Operating Humidity 10% ~ 90% RH
Dimensions 16 port: 440 × 189.8 × 44mm (17.3 × 7.5 × 1.7")
24 port: 440 × 244.8 × 44mm (17.3 × 9.6 × 1.7")
Weight 2.1kg (4.6lb) 16-port
2.93kg (6.5lb) 24-port
