SecuritAll

REVO ULTRA 8 CH 2 SATA 4K NVR with 3 TB HDD

REVO ULTRA 8 CH 2 SATA 4K NVR with 3 TB HDD

SKU:RU8NVR2A-3T

Regular price $549.99 USD
Regular price Sale price $549.99 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Quick Features

  • 8 Ch. IP NVR with 16 RJ45 PoE Ports
  • Pre-installed 3 TB Video Surveillance Grade HDD
  • H.265 Compression
  • 4K HDMI output (Easy to connect to a 4K monitor or TV)
  • Supports easy firmware upgrade via Cloud (Recorder & Cameras)
  • Two-Step Smartphone View Setup – iPhone and Android
  • Dimensions= 14.9inches X 12.4inches X 2.1inches

Overview

With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra's unique design complements any home or business. The Revo Ultra's superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The 2 SATA 8CH REVO ULTRA NVR features state of the art 4K Video Output, H.265 Compression, and support up to 4K Cameras. View your cameras from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using www.myrevocloud.com. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you'd like to view with Video Wall, or even lay them out on a custom map of your property with E-Map.

Video and Audio
IP Video Input 8-ch
Two-way audio Input 1-ch, RCA
Network
Incoming bandwidth 80Mbps
Outgoing bandwidth 64Mbps
Remote connection 128
Video/Audio Output
HDMI/VGA Output VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Decoding
Compression H.265/H.264
Live view/Playback 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
Capability 2 x 4K@30, 4 x 4MP@30, 8 x 1080p@30
Hard Disk
SATA 2 SATA interfaces
Capacity up to 12TB for each disk
External Interface
Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0
Rear panel: 1 x USB3.0
Alarm in 4-CH
Alarm out 1-CH
PoE
Interface 8 independent 100 Mbps PoE network interfaces
Max Power Max 30W for single port
Max 130W in total (15W for each)
Supported Standard IEEE 802.3at
General
Power Supply 100 ~ 240 VAC
Consumption(without HDD and PoE) ≤ 9 W
Working Temperature +14°F ~ +131°F
Working Humidity 10% ~ 90%

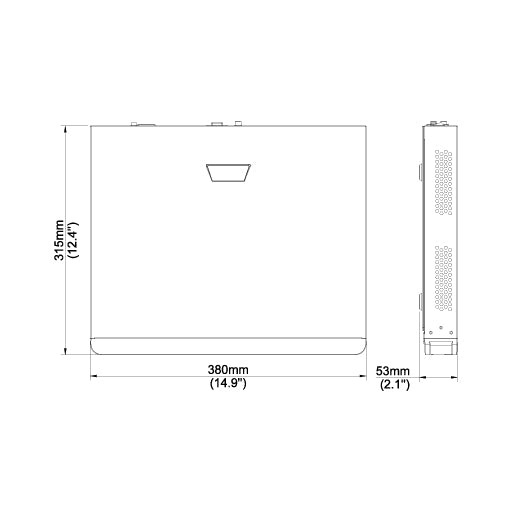

Dimensions 380mm x 315mm x 46mm ( 14.95” × 12.4” × 1.81” )
Weight (without HDD) ≤ 5.3 lb (2.42 Kg)
Specs and design can change without previous notice
