Revo America

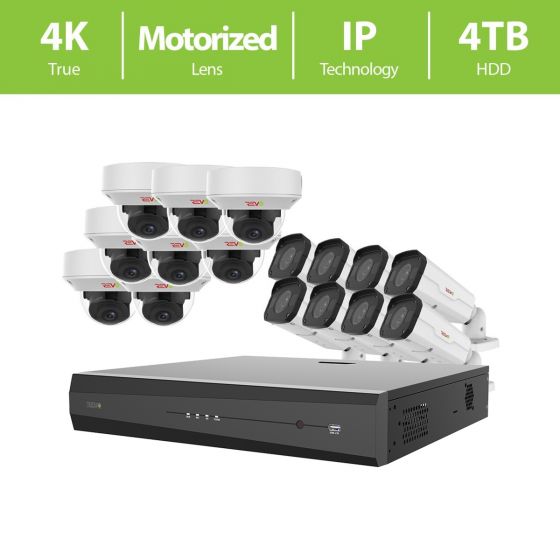

REVO ULTRA PLUS 16CH 4K NVR, 4TB, 16x 4K Motorized Lens Cameras

REVO ULTRA PLUS 16CH 4K NVR, 4TB, 16x 4K Motorized Lens Cameras


Regular price $4,949.99 USD
Regular price Sale price $4,949.99 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Quick Features

  • 16 Ch. 4K H.265 IP NVR with built-in 16 RJ45 PoE Ports
  • 4K Indoor/Outdoor IP Bullet Cameras (8)
  • 4K Indoor/Outdoor IP Vandal Dome Cameras (8)
  • 4TB Video Surveillance Grade HDD
  • 2.8mm-12mm Motorized Varifocal Lens provides an adjustable 47 to 115 degree angle of view
  • Hassle free software upgrade via Cloud
  • 1-ch HDMI, 1ch VGA. HDMI at up to 4K(3840x2160) resolution
  • Supports up to 12MP Cameras
  • 3D Digital Noise Reduction
  • 100’ Cat 5e Cable (16)
  • - Access your NVR from virtually any IE browser
  • Two-Step Smartphone View Setup – iPhone and Android
  • Revo Ultra Remote Computer Software – View multiple units at once


With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Enjoy additional professional and premium-residential features with Revo Ultra Plus™. The Revo Ultra's superb video quality is based on IP technology. The “RUP1614KBNDL-3” is a complete plug and play HD surveillance system with 16 CH Professional Grade NVR, 4TB, 8x 4K HD Indoor/outdoor Motorized IP Bullet Cameras & 8x 4K HD Indoor/outdoor Motorized IP vandal dome cameras. Revo Ultra Plus™ NVRs feature state of the art 4K Video Output, H.265 Compression, supports easy firmware upgrade via Cloud and an astounding 4TB pre-installed Hard Drive Capacity. The bullet and vandal dome cameras features H.265 compression, True wide dynamic range, 3D digital noise reduction to overcome bandwidth and lighting constraints. The 2.8 to 12mm Motorized Varifocal lens provides an adjustable 47 to 115 degree angle of view. They also come equipped with professional grade “OSRAM” LEDs. They strongly illuminate the scene up to an unprecedented 175’ in total darkness. The cameras are built for the outdoors capable of handling temperatures as hot as 140F and as cold as -40F. The weather resistance of these cameras is stepped up with an IP67 rating. The polished look and intuitive feel of the Ultra's interface is a joy for everyday use whether you're using the NVR itself, the Mobile App, Computer Software or Browser.

Specs and design can change without previous notice
