Quick Features
Highlights
Camera Resolution
4MP IP Cameras
Night Vision
75 ft.
Update
Software cloud Update
WDR
TRUE WDR
Compression
H.265
Built-in mic
Audio Cameras
Overview

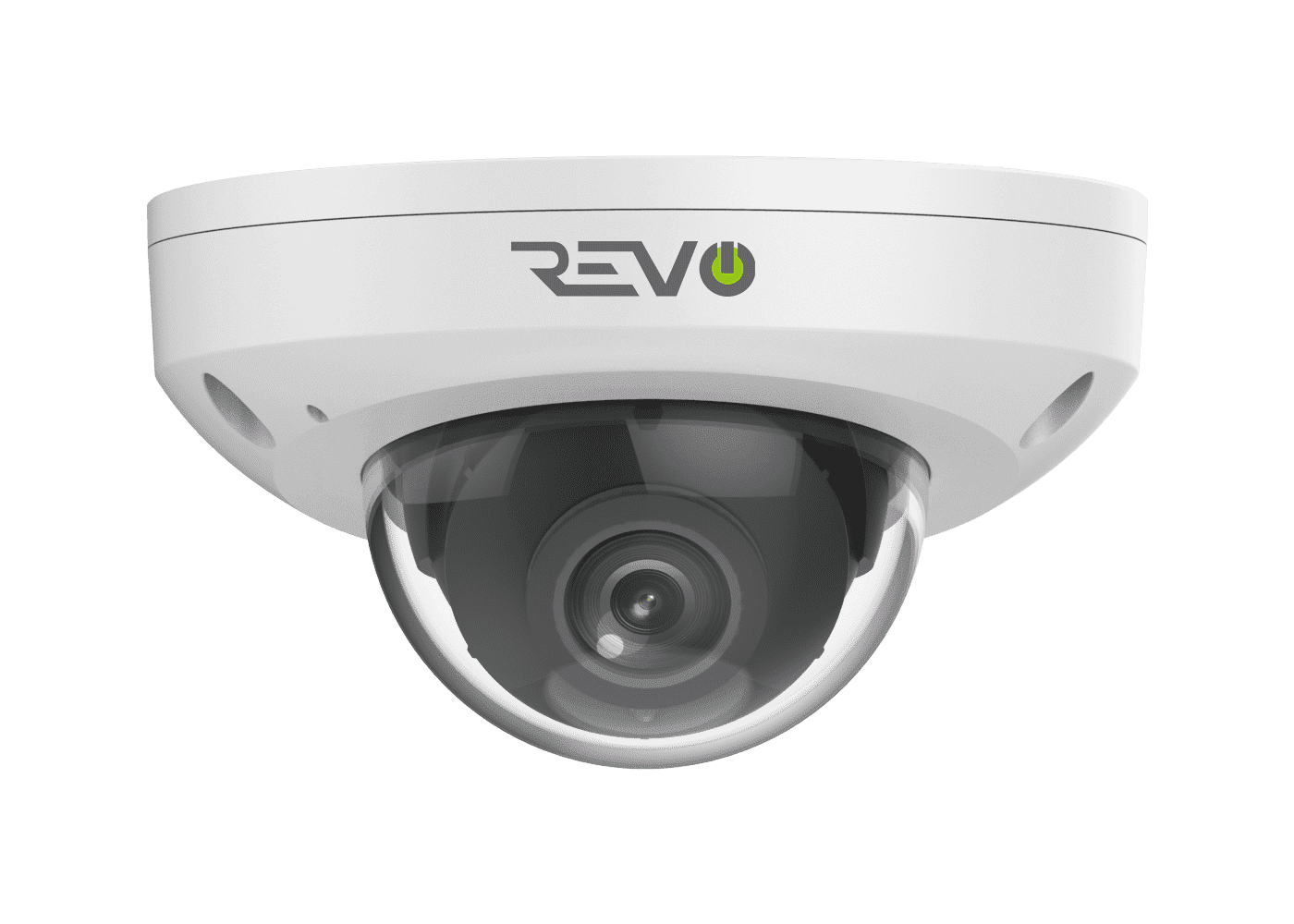

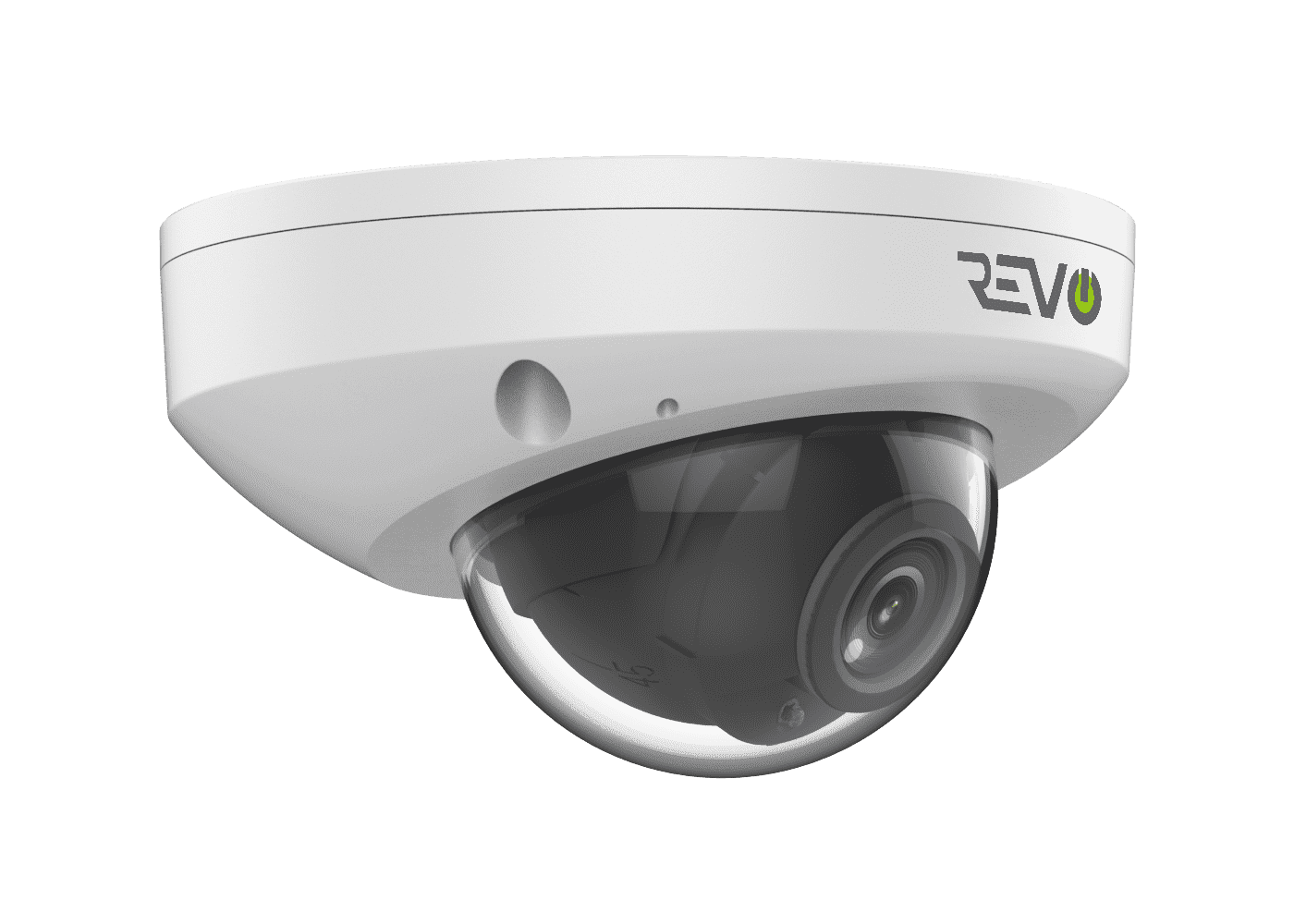

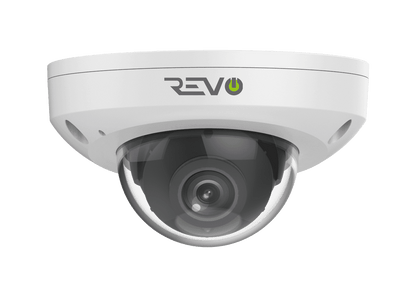

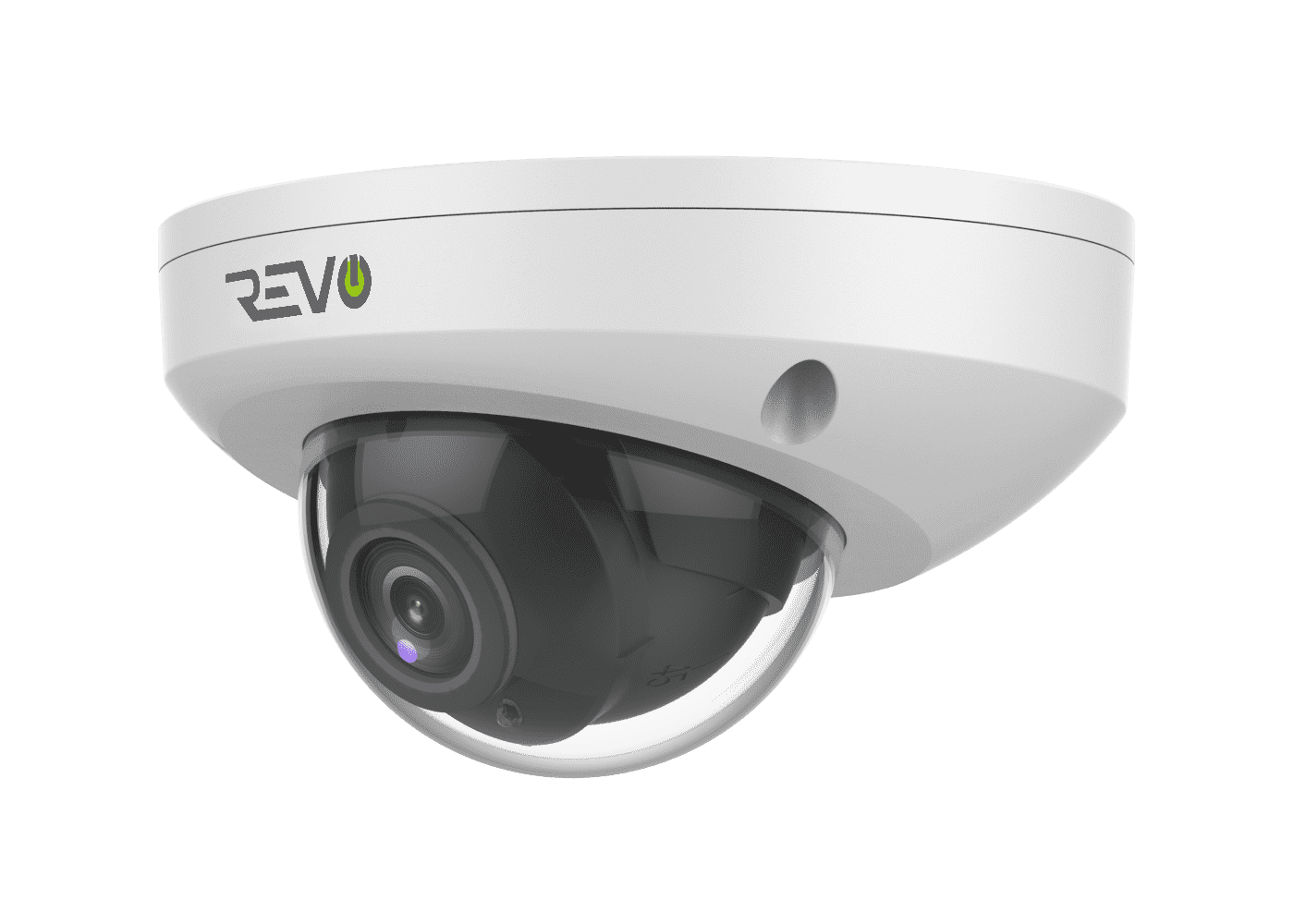

With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra's unique design complements any home or business. The RUCD36-1 Revo Ultra Vandal-Resistant Network IR Mini Dome camera delivers incredible video quality with Optical WDR (Wide Dynamic Range), 3D Digital Noise Reduction, H.265 Compression and massive 4 Megapixel resolution, double the resolution of standard 1080p HD. The Revo Ultra Mini Dome also come equipped with built-in Microphone for audio streaming and recording. The Mini Dome comes equipped with Smart IR for superb Night Vision quality. This advanced feature allows the camera to adjust the IR LEDs intensity for just the right amount of IR illumination at any given time. Revo Ultra cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F, rain or shine. When it comes to surveillance, every detail counts. Added features make the RUCD36-1 not only powerful, but widely compatible. ONVIF conformance maximizes the compatibility of this camera for plug and play convenience. 4KV surge protection protects your investment. Finally, triple stream capability ensures the best video quality optimized for any connection speed. Experience Peace of Mind with the ultimate high resolution IP technology from Revo.
Camera | |
---|---|
Sensor | 1/3", progressive scan, 4.0 megapixel, CMOS |
Lens | 2.8mm@F2.0 |
Angle of View (H) | 104.4° |
Shutter | Auto/Manual, 1/6~1/100000 s |
Min. Illumination | Colour: 0.03 Lux (F2.0, AGC ON) 0 Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital noise reduction | 2D/3D DNR |
S/N | ≥55 dB |
IR Range | Up to 15m (49 ft) IR range |
Defog | Digital Defog |
WDR | 120dB |
Video | |
Video Compression | Ultra 265,H.265, H.264,MJPEG |
H.264 code profile | Baseline profile, Main Profile, High Profile |
Frame Rate | Main Stream:4MP (2592×1520): Max. 20 fps,4MP (2560×1440): Max. 25 fps,3MP (2048×1520): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max. 30fps |
HLC | Supported |
BLC | Supported |
9:16 Corridor Mode | Supported |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 8 areas |
ROI | Up to 8 areas |
Motion Detection | Up to 4 areas |
Smart | |
Behavior Detection | Intrusion, cross line, motion detection |
Exception Detection | Audio detection |
Intelligent Identification | Face detection, Defocus, Scene Change |
Statistical Analysis | People counting |
General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio | |
Audio Compression | G.711 |
Suppression | Supported |
Sampling Rate | 8 KHZ |
Storage | |
Edge Storage | Micro SD, Up to 128 GB |
Network Storage | ANR |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
Compatible Integration | ONVIF(Profile S, Profile G), API |
Interface | |
Audio I/O | Audio cable |
Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
Output: impedance 600 Ω; amplitude 2 V [p-p] | |
Built-in Mic | Supported |
Network | 1 RJ45 10M/100M Base-TX Ethernet |
General | |
Power | 12 V DC±25%, PoE (IEEE 802.3af) |
Power consumption:Max 5W | |
Dimensions (Ø x H) | Φ110 x 61 mm (Ø4.3” x 2.4”) |
Weight | 0.25 kg (0.55 lb) |
Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
Ingress Protection | IP66 |
Vandal Resistant | IK10 |
