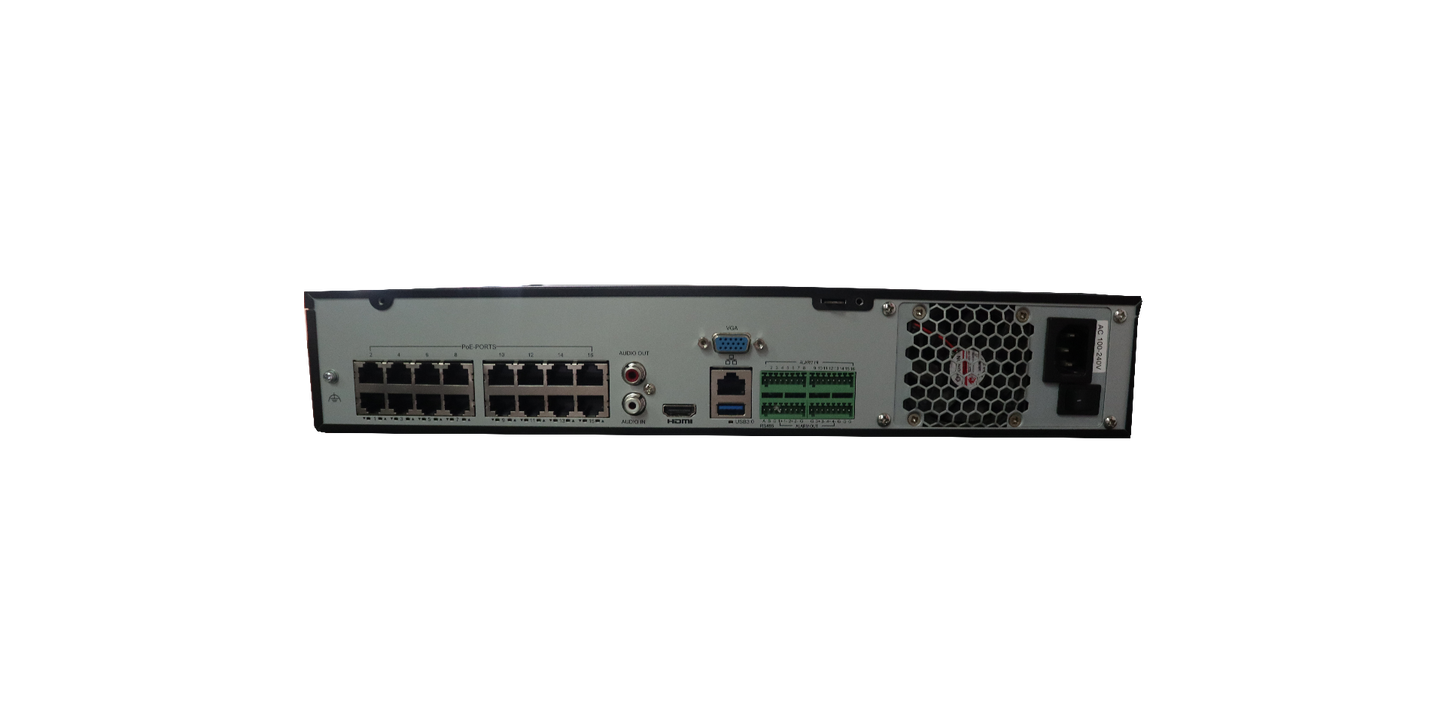

Ultra Plus 16CH 4K 4 SATA NVR with 40TB

Ultra Plus 16CH 4K 4 SATA NVR with 40TB

SKU:RUP16NVR1-40T

Regular price $2,999.99 USD
Regular price Sale price $2,999.99 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Quick Features

  • 16 Ch. 40TB IP NVR with 16 RJ45 PoE Ports
  • 1-ch HDMI, 1ch VGA. HDMI at up to 4K(3840x2160) resolution
  • Supports up to 12MP Cameras
  • Supports Easy Firmware upgrade via Cloud
  • 32TB Max Hard Drive Capacity
  • Corridor View Mode – Perfect for hallways, doors, windows.
  • Two-Step Smartphone View Setup – iPhone and Android
  • Myrevocloud.com - Access your Ultra NVR from virtually any Internet Explorer browser
  • Revo Ultra EZStation Computer Software – Conveniently view multiple units at once

Overview

With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Enjoy additional professional and premium-residential features with Revo Ultra Plus™. The Revo Ultra's superb video quality is based on IP, or Internet Protocol, technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. Revo Ultra Plus™ NVRs feature state of the art 4K Video Output, H.265 Compression, support up to 12MP Cameras and up to an astounding 32TB of Hard Drive Capacity. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using www.myrevocloud.com, compatible with Internet Explorer. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you'd like to view with Video Wall, or even lay them out on a custom map of your property with E-Map. Pre-event recording includes video before motion is detected providing valuable context leading up to the incident. Experience Peace of Mind with the ultimate high resolution IP technology from Revo.

Video and Audio
IP Video Input 16-ch
Two-way audio Input 1-ch, RCA
Network
Incoming bandwidth 160Mbps
Outgoing bandwidth 320Mbps
Remote connection 128
Video and Audio
HDMI/VGA Output HDMI/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Decoding
Compression H.265/H.264
Live view/Playback 12MP/ 8MP/ 6MP/ 5MP/ 4MP /3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
Capability 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@30
Hard Disk
SATA 4 SATA interfaces
Capacity up to 8TB for each disk
External Interface
Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
Serial Interface 1 x RS485
USB Interface Front panel: 2 x USB2.0
Rear panel: 1 x USB3.0
Alarm in 16-CH
Alarm out 4-CH
Power Output 12 VDC
PoE
Interface 8 independent 100 Mbps PoE network interfaces
Max Power Max 30W for single port
Max 200W in total (12.5W for each)
Supported Standard IEEE 802.3at
General
Power Supply 100 ~ 240 VAC
Consumption (without HDD and PoE) ≤ 20 W
Working Temperature -10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity 10% ~ 90%
Dimensions 86 × 442 × 425mm ( 3.4” × 17.4” × 16.7” )
Weight (without HDD) ≤ 11.55 lb (5.24 Kg)
Specs and design can change without previous notice
