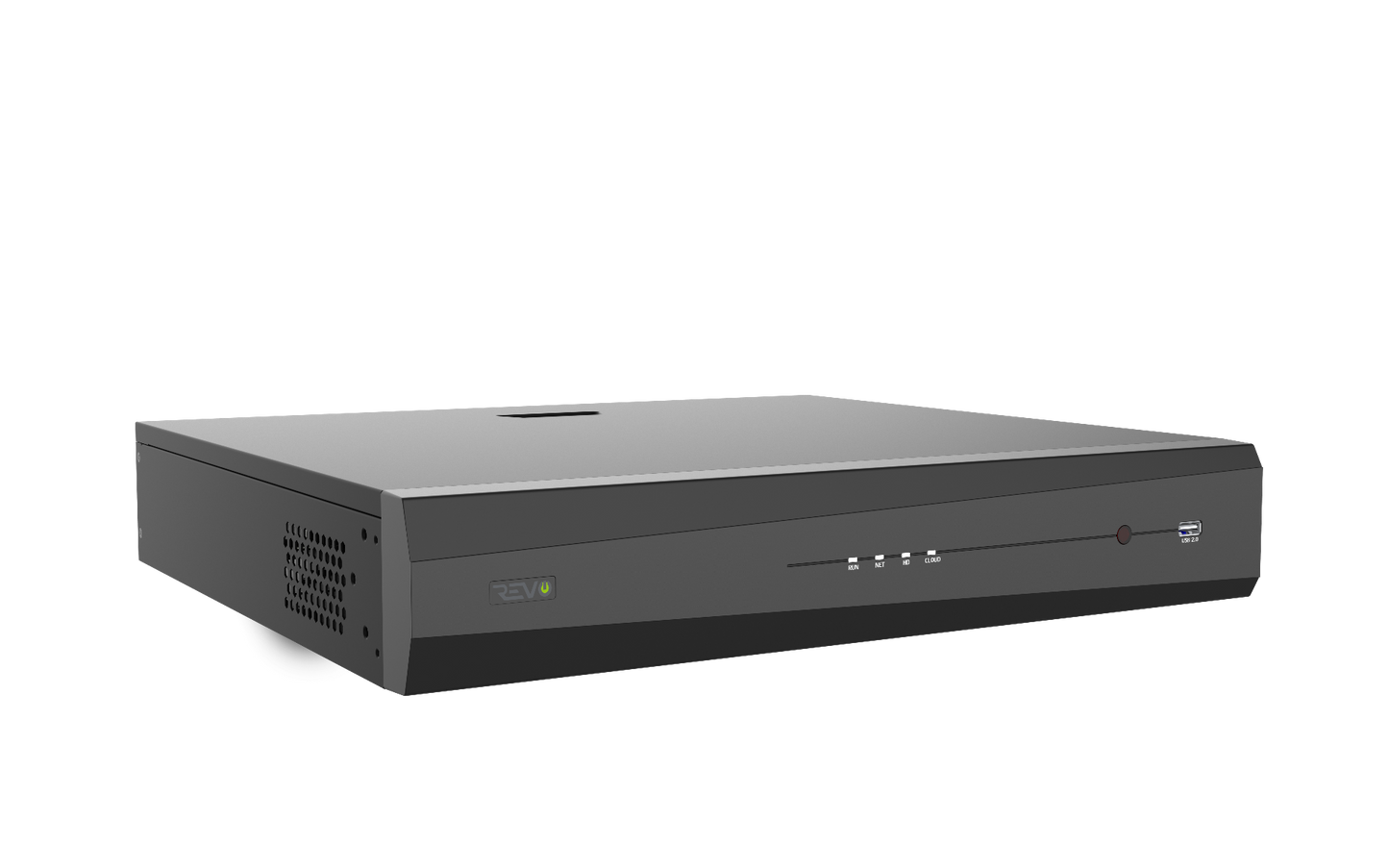

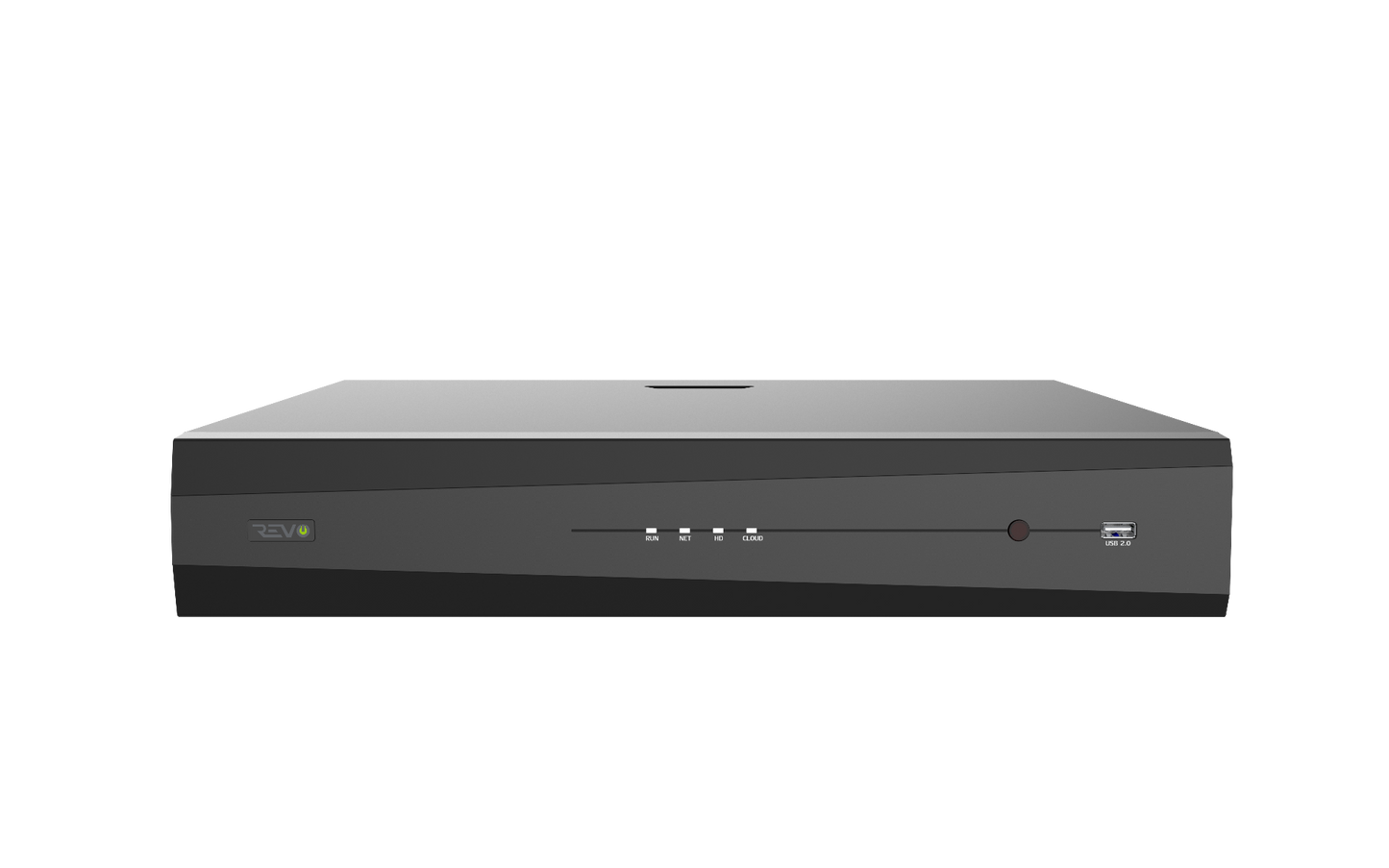

Ultra Plus 16CH 4K 4 SATA NVR with 48TB
Ultra Plus 16CH 4K 4 SATA NVR with 48TB
SKU:RUP16NVR1-48T
Couldn't load pickup availability
One Click Free Returns
(30 Days Complete Risk Free Returns)
Free Shipping
(Enjoy Free Shipping on this Product)
Quick Features
Overview
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Enjoy additional professional and premium-residential features with Revo Ultra Plus™. The Revo Ultra's superb video quality is based on IP, or Internet Protocol, technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. Revo Ultra Plus™ NVRs feature state of the art 4K Video Output, H.265 Compression, support up to 12MP Cameras and up to an astounding 32TB of Hard Drive Capacity. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using www.myrevocloud.com, compatible with Internet Explorer. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you'd like to view with Video Wall, or even lay them out on a custom map of your property with E-Map. Pre-event recording includes video before motion is detected providing valuable context leading up to the incident. Experience Peace of Mind with the ultimate high resolution IP technology from Revo.
| Video and Audio | |
|---|---|
| IP Video Input | 16-ch |
| Two-way audio Input | 1-ch, RCA |
| Network | |
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 320Mbps |
| Remote connection | 128 |
| Video and Audio | |
| HDMI/VGA Output | HDMI/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Recording Resolution | 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Decoding | |
| Compression | H.265/H.264 |
| Live view/Playback | 12MP/ 8MP/ 6MP/ 5MP/ 4MP /3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
| Capability | 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@30 |
| Hard Disk | |
| SATA | 4 SATA interfaces |
| Capacity | up to 8TB for each disk |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| Serial Interface | 1 x RS485 |
| USB Interface | Front panel: 2 x USB2.0 |
| Rear panel: | 1 x USB3.0 |
| Alarm in | 16-CH |
| Alarm out | 4-CH |
| Power Output | 12 VDC |
| PoE | |
| Interface | 8 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30W for single port Max 200W in total (12.5W for each) |
| Supported Standard | IEEE 802.3at |
| General | |
| Power Supply | 100 ~ 240 VAC |
| Consumption (without HDD and PoE) | ≤ 20 W |
| Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 86 × 442 × 425mm ( 3.4” × 17.4” × 16.7” ) |
| Weight (without HDD) | ≤ 11.55 lb (5.24 Kg) |
