Revo America

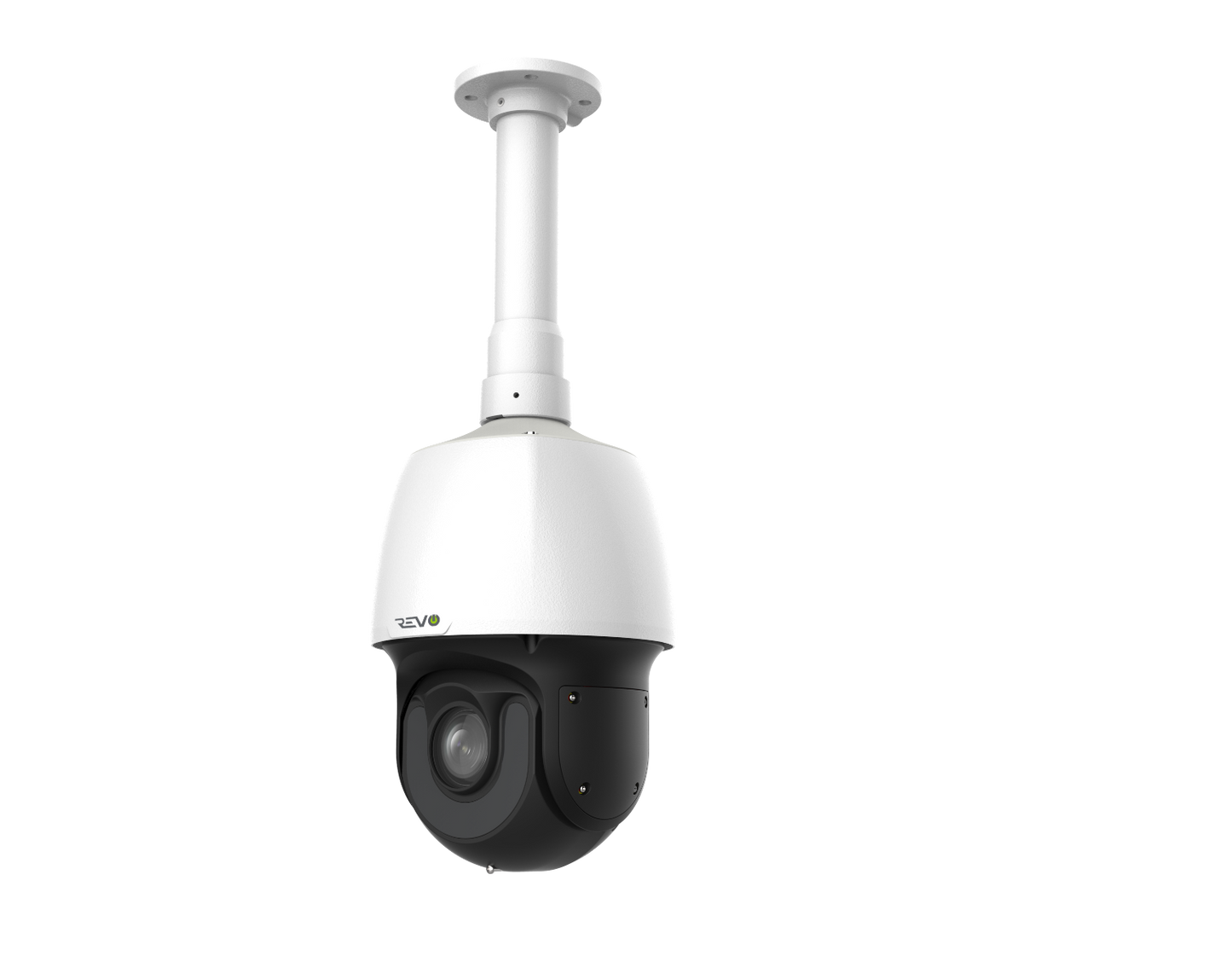

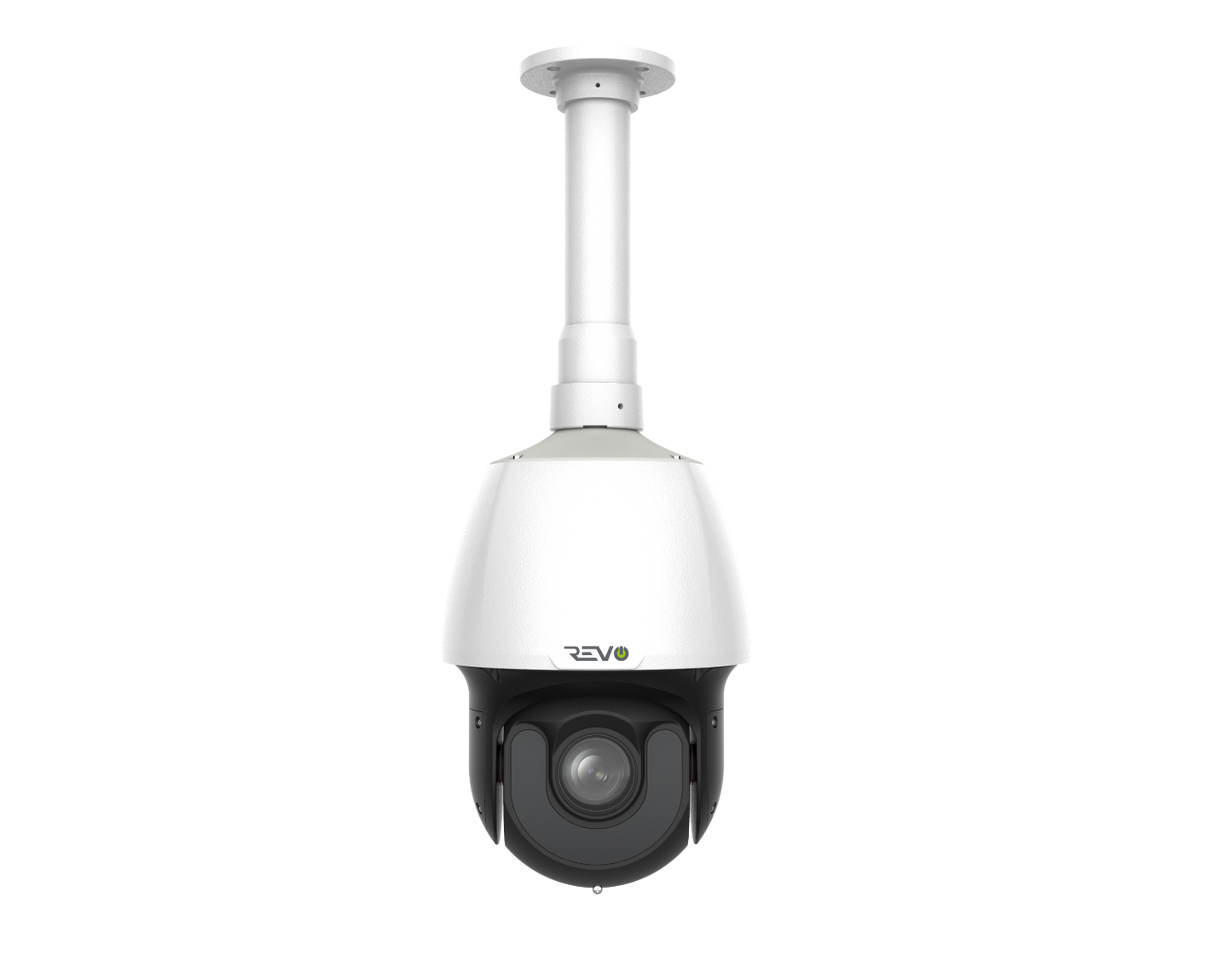

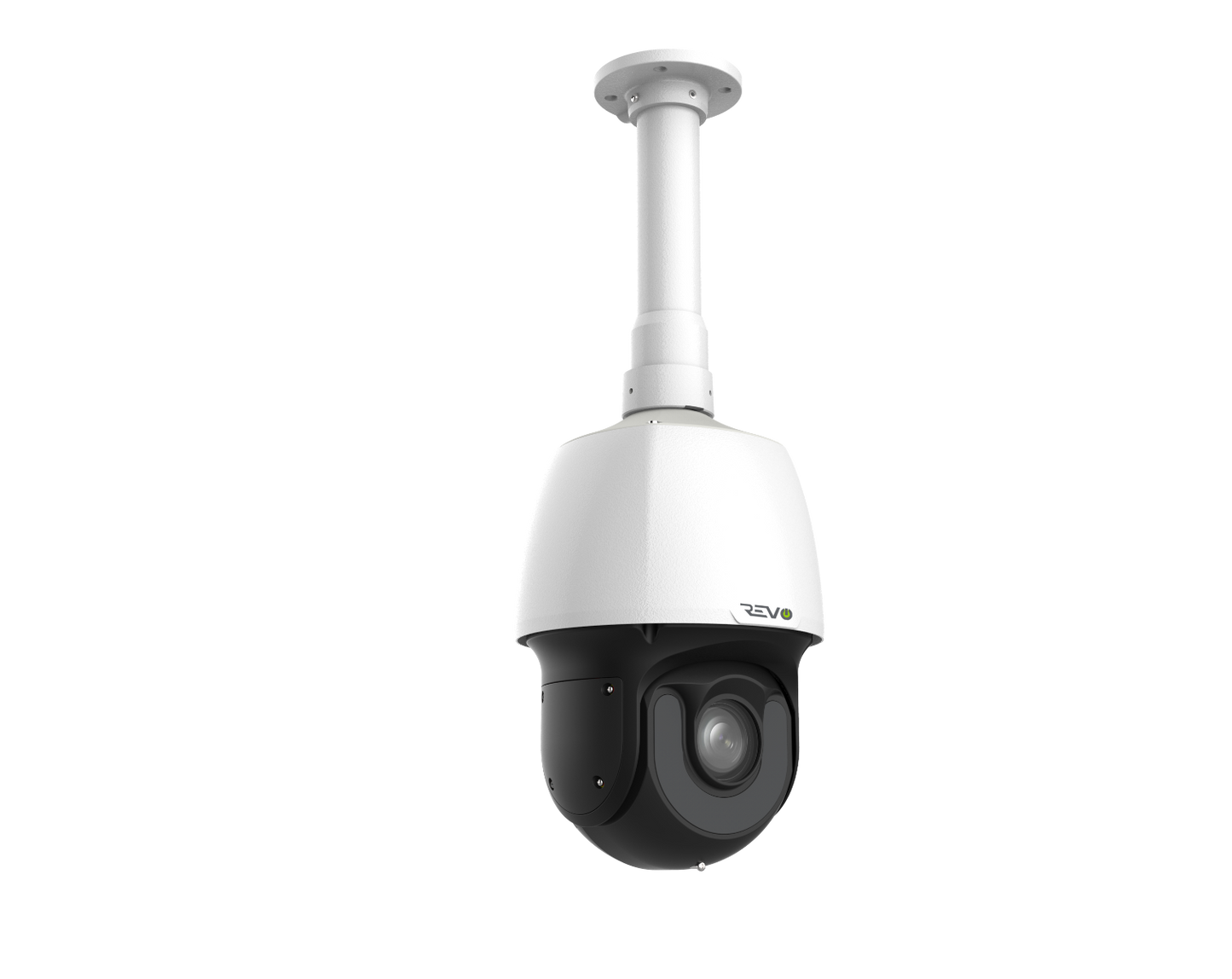

Ultra Plus HD 4K 22X Zoom Pan tilt zoom security Camera

Ultra Plus HD 4K 22X Zoom Pan tilt zoom security Camera


Regular price $1,699.99 USD
Regular price Sale price $1,699.99 USD
Sale Sold out
warranty badge
Free returns
One Click Free Returns

(30 Days Complete Risk Free Returns)

90 Days Easy Return
Free Shipping

(Enjoy Free Shipping on this Product)

Quick Features

  • 4K Resolution
  • 22x Optical Zoom
  • 360° Pan Range
  • -15°~90° (auto reverse) Tilt Range
  • IP66 Indoor/Outdoor
  • 600’ Night Vision Range
  • Intelligent temperature control technology
  • 3D noise reduction
  • Triple streams
  • Built-in Heater
  • Innovative snow-removing functionality
  • Wide temperature range -49°F to 158°F (-40°C to 70°C)
  • Dimensions= 15.1inches X 8.9inches


Experience the pinnacle of surveillance technology with Revo Ultra. Our Revo Ultra Pan Tilt Zoom security camera offers unparalleled video quality, ease of use, and powerful networking tools. With 4K resolution, 22x Optical Zoom, and a wide 360° Pan Range, coupled with a -15° ~+90° Tilt Range, you can capture every detail remotely with ease.

Equipped with fifth-generation infrared technology, this camera provides exceptional night vision up to 600 feet in total darkness. Smart IR adjusts IR Array intensity for optimal illumination at any given time. Built tough for outdoor use, it can withstand temperatures from -49°F to 158°F.

Designed for wall mounting, the RUPTZ224K-1WM model comes with added features such as H.265 Compression, Electronic Image Stabilization (EIC), Triple Streams, and Smart temperature control technology. It also includes 6KV surge protection to safeguard your investment.

With Revo Ultra, every detail matters. Experience peace of mind with our high-resolution IP technology designed for pan tilt zoom security camera systems.

Click to explore our CCTV Camera solutions!

  • 4K Resolution: This indicates that the camera captures video in ultra-high definition, with a resolution of 3840x2160 pixels, providing exceptionally clear and detailed images.
  • 22x Optical Zoom: The camera features optical zoom capability, allowing users to magnify the image up to 22 times without sacrificing image quality, enhancing surveillance capabilities.
  • 360° Pan Range: The camera can rotate horizontally up to 360 degrees, providing a full circle view and enabling surveillance across a wide area.
  • -15°~90° (auto reverse) Tilt Range: The camera can tilt vertically from -15 degrees to 90 degrees, with an auto-reverse feature, allowing it to capture images from various angles.
  • IP66 Indoor/Outdoor: This rating indicates that the camera is designed to withstand both indoor and outdoor environments, as it is dust-tight and protected against powerful jets of water.
  • 600’ Night Vision Range: Equipped with infrared LEDs, the camera provides illumination for night vision up to 600 feet, ensuring clear surveillance even in complete darkness.
  • Intelligent Temperature Control Technology: The camera utilizes intelligent temperature control technology to maintain optimal operating temperatures, ensuring reliable performance in varying weather conditions.
  • 3D Noise Reduction: The camera employs 3D noise reduction technology to minimize image noise and produce clearer images, even in low-light environments.
  • Triple Streams: The camera supports the simultaneous transmission of three video streams, enabling efficient video management and storage.
  • Built-in Heater: The camera is equipped with a built-in heater to prevent fogging and ensure clear visibility in cold weather conditions.
  • Innovative Snow-Removing Functionality: The camera features innovative snow-removing functionality to maintain visibility and functionality during snowy conditions.
  • Wide Temperature Range -49°F to 158°F (-40°C to 70°C): The camera is designed to operate within a wide temperature range, making it suitable for various climates and weather conditions.
  • Dimensions= 15.1 inches X 8.9 inches: This specifies the physical dimensions of the camera.

Click here to explore our advanced security systems now!

Sensor 1/1.7", progressive scan, 12.0megapixel, CMOS
Lens 6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens
Angle of view(H) 56.69° (wide) ~ 3.19° (tele)
Shutter Auto/Manual, shutter time: 1/6 s ~ 1/100000 s
Minimum Illumination Colour: 0.06 lux (F1.5,AGC ON)
0 lux with IR
Iris Auto/Manual, F1.5 ~ F3.4
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55 dB
IR Range UP to 200m (656ft)
Defog Digital Defog
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 12 MP(4000×3000):Max.20 fps,8MP(3840 × 2160): Max.25fps, 2MP(1920×1080)@30fps;
Sub Stream: 2MP(1920×1080) : Max. 30fps
Third Stream: D1 (720×576): Max. 30fps
HLC Supported
BLC Supported
EIS Supported
OSD Up to 8 OSDs
Privacy Mask Up to 24 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Behavior Detection Intrusion, cross line, motion detection
Exception Detection Audio detection
Intelligent Identification Face detection
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio Compression G.711
Two-way Audio Supported
Suppression Supported
Sampling Rate 8 KHZ
Edge Storage Micro SD, up to 128 GB
Network Storage ANR
Compatible Integration ONVIF(Profile S, Profile G), API
Pan & Tilt
Pan Range 360°
Pan Speed 0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range –15° ~ +90° (auto reverse)
Tilt Speed 0.1° ~ 160°/s
Preset speed: 240°/s
Number of Presets 1024
Patrol Preset patrol, route patrol, recorded patrol
Home Position Supported
Audio I/O Audio cable
1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 2 / 1
Serial Port 1 RS485
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Power 24 V AC±25% (Default), 24 V DC±25%, PoE(PSE Required)
Power consumption: 8~52.5W

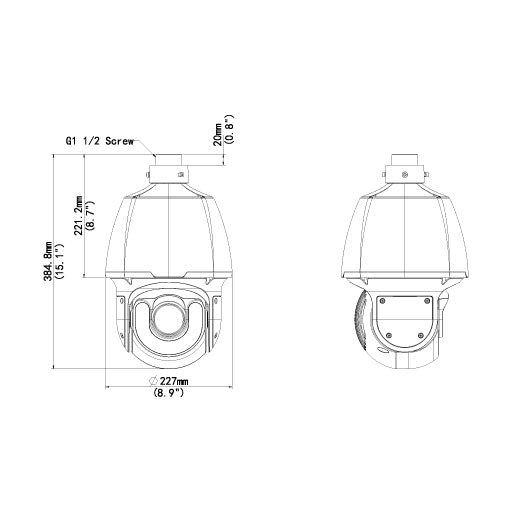

Dimensions(Ø x H) Ø227x359.4 mm (Ø8.9” x 14.2”)
Weight 5.5 kg (12.1 lb)
Working Environment –40°C ~ +70°C (-40°F ~ 158°F), Humidity: 10%~95% RH(non-condensing)
Vandal Resistant IK10
Ingress Protection IP66
Reset Button Supported
Specs and design can change without previous notice
