Quick Features
Overview
With unparalleled video quality, user-friendly operation, and robust networking capabilities, Revo Ultra stands as the pinnacle of Revo's offerings. The Revo Ultra PTZ Outdoor camera boasts 4K resolution, 22x Optical Zoom, and a 360° Pan Range, coupled with a -15° ~+90° Tilt Range, delivering exceptional video quality with remote zoom capabilities and extensive Pan and Tilt ranges. The RUPTZ224K-1CM model is engineered with fifth-generation infrared technology, providing unmatched night vision quality extending up to 600 feet in complete darkness. Smart IR ensures optimal illumination levels.
Designed for outdoor use, the Revo Ultra PTZ camera withstands harsh weather conditions, withstanding temperatures ranging from -49°F to 158°F. Designed specifically as a PTZ outdoor camera, the RUPTZ224K-1CM model features added functionality tailored for outdoor surveillance needs. These include H.265 Compression, Electronic Image Stabilization (EIC), Triple Streams, and Smart temperature control technology. Additionally, the camera is equipped with 6KV surge protection to safeguard your investment.
For seamless integration into your surveillance setup, the RUPTZ224K-1CM model is designed for ceiling mounting, offering versatile placement options. Every detail has been meticulously crafted to ensure optimal performance and reliability. Experience peace of mind with the ultimate high-resolution IP technology from Revo, designed to meet the demands of outdoor surveillance environments.
- 4K Resolution PTZ security camera: This indicates that the camera captures video in ultra-high definition, with a resolution of 3840x2160 pixels, providing exceptionally clear and detailed images.
- 22x Optical Zoom PTZ security camera: The camera features optical zoom capability that magnifies the image up to 22 times without sacrificing image quality, enhancing surveillance capabilities.
- 360° Pan Range pan tilt security cameras: The camera can rotate horizontally up to 360 degrees, providing a full circle view and enabling surveillance across a wide area.
- -15°~90° (auto reverse) Tilt Range pan tilt security cameras: The camera can tilt vertically from -15 degrees to 90 degrees, with an auto-reverse feature, allowing it to capture images from various angles.
- IP66 Indoor/Outdoor PTZ security camera: The camera has an IP66 rating, making it suitable for both indoor and outdoor use, as it is dust-tight and protected against powerful jets of water.
- 600’ Night Vision Range PTZ surveillance cameras: Equipped with infrared LEDs, the camera provides illumination for night vision up to 600 feet, ensuring clear surveillance even in complete darkness.
- Intelligent temperature control technology PTZ outdoor camera: The camera utilizes intelligent temperature control technology to maintain optimal operating temperatures, ensuring reliable performance in varying weather conditions.
- 3D noise reduction PTZ security camera: The camera employs 3D noise reduction technology to minimize image noise and produce clearer images, even in low-light environments.
- Triple streams pan tilt zoom security camera: The camera supports the simultaneous transmission of three video streams, enabling efficient video management and storage.
- Built-in Heater PTZ security camera: The camera is equipped with a built-in heater to prevent fogging and ensure clear visibility in cold weather conditions.
- Innovative snow-removing functionality PTZ surveillance cameras: The camera features innovative snow-removing functionality to maintain visibility and functionality during snowy conditions.
- Wide temperature range -49°F to 158°F (-40°C to 70°C) PTZ outdoor camera: The camera is designed to operate within a wide temperature range, making it suitable for various climates and weather conditions.

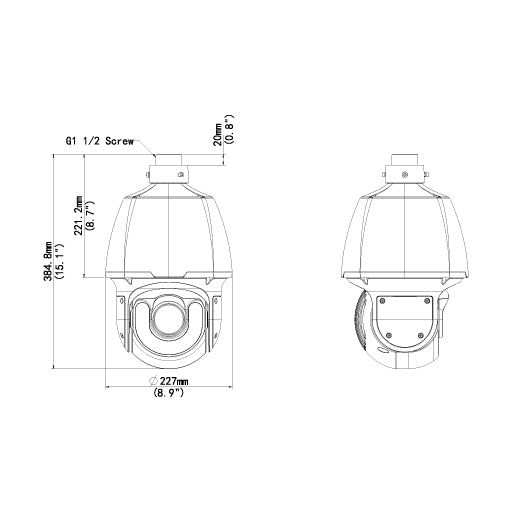

- Dimensions= 15.1inches X 8.9inches: This specifies the physical dimensions of the camera.
Ready to enhance your surveillance system? Discover how our PTZ Surveillance cameras can revolutionize your monitoring capabilities - Start exploring!
Camera | |
---|---|
Sensor | 1/1.7", progressive scan, 12.0megapixel, CMOS |
Lens | 6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens |
Angle of view(H) | 56.69° (wide) ~ 3.19° (tele) |
Shutter | Auto/Manual, shutter time: 1/6 s ~ 1/100000 s |
Minimum Illumination | Colour: 0.06 lux (F1.5,AGC ON) 0 lux with IR |
Iris | Auto/Manual, F1.5 ~ F3.4 |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital noise reduction | 2D/3D DNR |
S/N | >55 dB |
IR Range | UP to 200m (656ft) |
Defog | Digital Defog |
WDR | DWDR |
Video | |
Video Compression | Ultra 265,H.265, H.264, MJPEG |
H.264 code profile | Baseline profile, Main Profile, High Profile |
Frame Rate | Main Stream: 12 MP(4000×3000):Max.20 fps,8MP(3840 × 2160): Max.25fps, 2MP(1920×1080)@30fps; Sub Stream: 2MP(1920×1080) : Max. 30fps Third Stream: D1 (720×576): Max. 30fps |
HLC | Supported |
BLC | Supported |
EIS | Supported |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 24 areas |
ROI | Up to 8 areas |
Motion Detection | Up to 4 areas |
Smart | |
Behavior Detection | Intrusion, cross line, motion detection |
Exception Detection | Audio detection |
Intelligent Identification | Face detection |
Statistical Analysis | People counting |
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio | |
Audio Compression | G.711 |
Two-way Audio | Supported |
Suppression | Supported |
Sampling Rate | 8 KHZ |
Storage | |
Edge Storage | Micro SD, up to 128 GB |
Network Storage | ANR |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
Compatible Integration | ONVIF(Profile S, Profile G), API |
Pan & Tilt | |
Pan Range | 360° |
Pan Speed | 0.1°/s ~ 240°/s |
Preset speed: 300°/s | |
Tilt Range | –15° ~ +90° (auto reverse) |
Tilt Speed | 0.1° ~ 160°/s |
Preset speed: 240°/s | |
Number of Presets | 1024 |
Patrol | Preset patrol, route patrol, recorded patrol |
Home Position | Supported |
Interface | |
Audio I/O | Audio cable |
1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |
Alarm I/O | 2 / 1 |
Serial Port | 1 RS485 |
Network | 1 RJ45 10M/100M Base-TX Ethernet |
Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
General | |
Power | 24 V AC±25% (Default), 24 V DC±25%, PoE(PSE Required) |
Power consumption: 8~52.5W | |
Dimensions(Ø x H) | Ø227x359.4 mm (Ø8.9” x 14.2”) |
Weight | 5.5 kg (12.1 lb) |
Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity: 10%~95% RH(non-condensing) |
Vandal Resistant | IK10 |
Ingress Protection | IP66 |
Reset Button | Supported |
